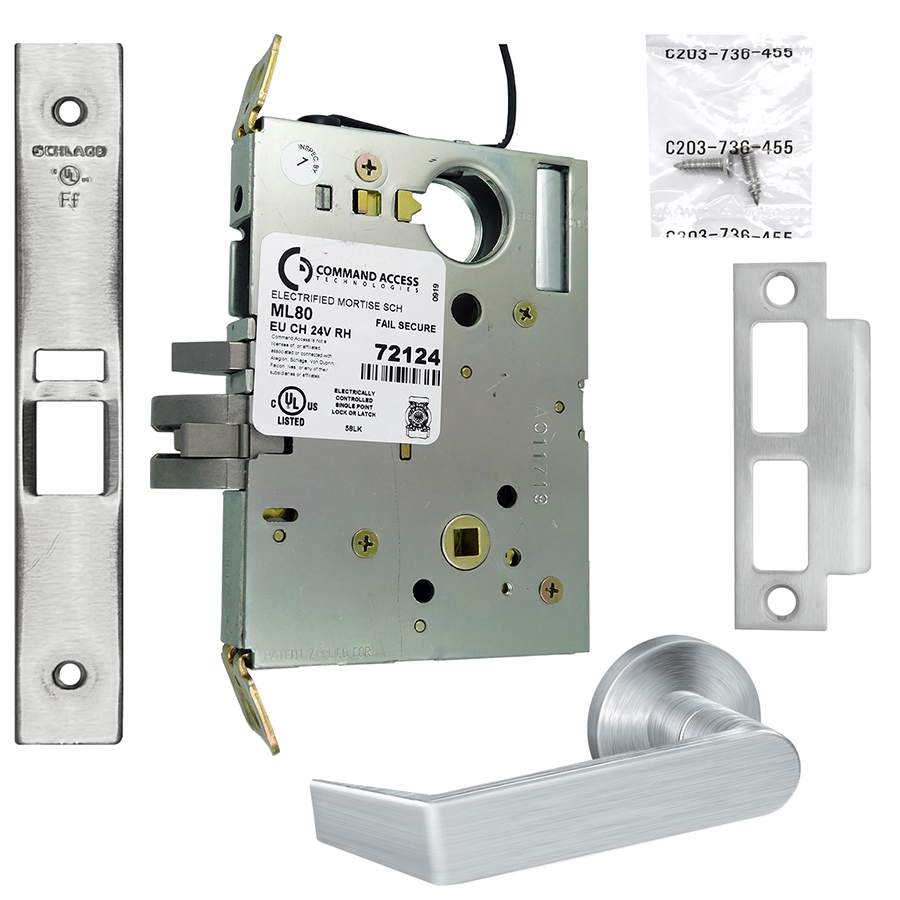

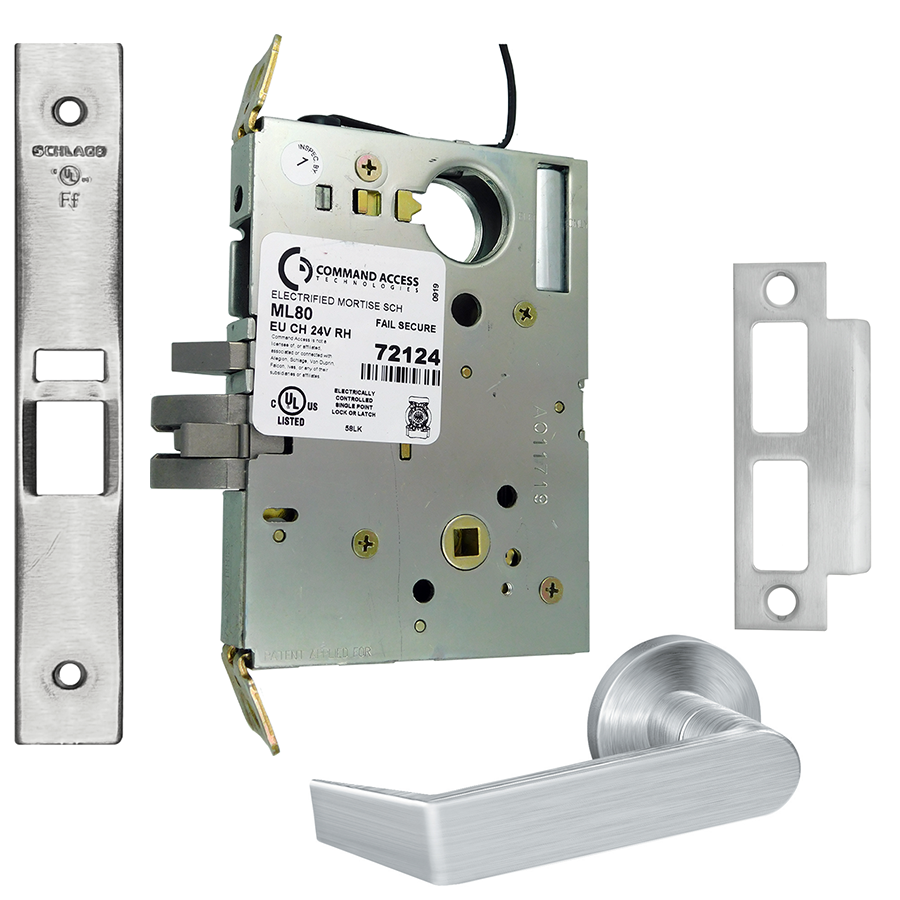

Command ML80EU-24-06B-626-LC KIT - 06B Electrified Schlage Mortise Lock, 24V Fail Secure, Satin Chrome

Command Access ML80EU-24-06B-626-LC KIT is an electrified Schlage mortise lock designed for robust security in high-traffic environments. This model operates on a 24V fail secure (FSE) system, providing reliable control over access and egress, making it an ideal choice for critical applications like stairwell doors, lobby entrances, and classrooms. Featuring continuous duty solenoids, the ML80EU allows for "continuously on" applications, ensuring seamless operation whether locked or unlocked. The plug-in bridge rectifier accommodates both AC and DC power sources, enhancing versatility. With a low current draw of 350 mA at 24V and a power consumption of just 8 watts, this lock is energy-efficient as well. The satin chrome finish (626) not only adds an aesthetic appeal but also ensures durability. This model is field reversible for easy installation and is compatible with a 2-3/4" backset. The ML80EU is designed without a mortise cylinder, giving you the flexibility to customize your security setup. Additionally, the lock offers various function options and accessories, including Request to Exit switches and monitor switches, to enhance security features. Backed by a no-hassle 3-year warranty, the Command Access ML80EU-24-06B-626-LC KIT combines advanced technology with reliable performance, making it a top choice for commercial electric locking solutions.

KIT - 06B, Electrified Schlage Mortise Lock, 24V Fail Secure (FSE), Electric Unlocked (EU), Less Mortise Cylinder, 626/US26D Satin Chrome

The electrified Schlage L9000 series mortise lock line allows for remote keyless access and egress control for heavy use applications where security and safety is critical. These locks may be purchased as complete locks, chassis only or as modifications only (add MD prefix for modification only of customers’ L9050 lock bodies). Along with the styles and finishes listed, we offer multiple functions and voltages to meet your requirements. Common applications include stairwell doors, lobby entrances, computer rooms, classrooms, interior and exterior doors.

Features:

• Continuous duty solenoids allow for "continuously on" applications such as Fail Safe or an unlock cycle
• Plug-in bridge rectifier that allows for an AC or DC power source
• Low Current Draw
• No hassle 3-Year Warranty

Options:

• REXBYPASS - Request to Exit Bypass switch available (on all functions): request to exit (REX) switch will be bypassed when the lock is in the unlocked state, preventing false REX signals.
• EZ-REX-SCH - Field installable Request to Exit or AE Switch
• REX - Request to Exit or AE switch available (on all functions)
• LBM - Latchbolt Monitor switch available (storeroom only)
• DPS - Door Position switch available (storeroom only)
• DBM - Deadbolt Monitor switch available (on ML53 only)
• SLM - Solenoid Monitor switch available (storeroom only)
• SCM - Security Monitor switch available (storeroom only)
• CRU2 - Current Reduction Unit to improve solenoid life in "continuously on" applications
• CRU2i - The intelligent CRU2: automatically detects DC input voltage between 12 to 30 volts and converts it to operate our 12V locks. Additionally, it adjusts the current to the solenoid allowing the lockset to run cooler and last longer without any manual adjustments.

Specifications:

• Operating Voltage - 12 or 24VAC/DC (+or- 10%) (must specify 12 or 24 volts when ordering)
• Amperage - 12V = 700 mA / 24V = 350 mA
• Solenoid coil resistance - 12V = 18 Ω / 24V = 69 Ω
• Power consumption - 8 watts

Functions:

• ML80 - storeroom (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
• ML82 - institutional (fail safe/fail secure): Outside and inside levers simultaneously locked (EL) or unlocked (EU) electronically. Latchbolt retracted by key on either side. Switched power allows both levers to retract latchbolt.
• ML70 - classroom (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt retracted by lever on either side unless outside has been locked by key. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
• ML480 - entry w/ deadbolt (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt and deadbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt and deadbolt. Inside lever is always free for immediate egress.
• ML485 - privacy w/ deadbolt (fail secure): Outside lever unlocked (EU) electronically. Latchbolt and deadbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt unless deadbolt is thrown. Inside lever is always free for immediate egress. Available in EU (electronically locked) function only.

Finishes:

• 605
• 606
• 612
• 613
• 625
• 626
• 630

Resources

• Cut Sheet
