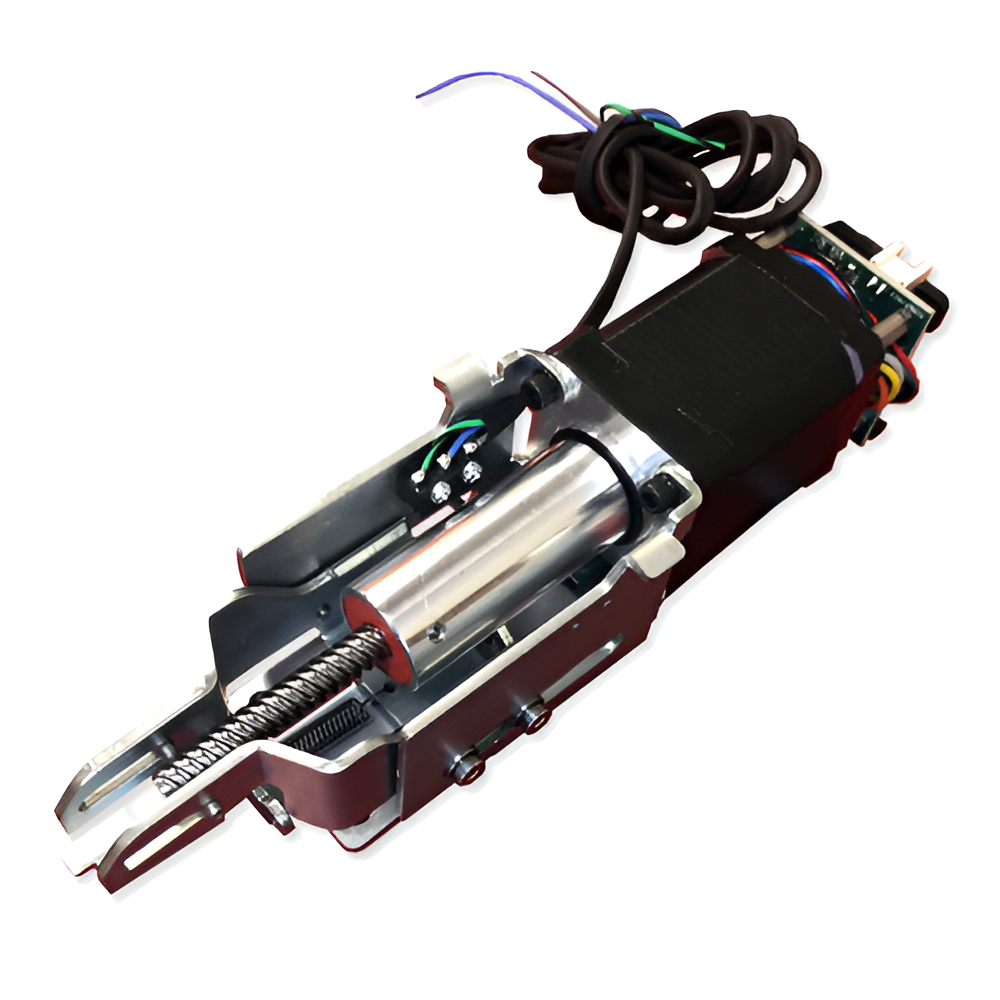

Command MLRK1-VDAX UL Motorized Latch Pullback Kit with REX for Von Duprin 33/35 - 98/99 AX

Command Access MLRK1-VDAX UL Motorized Latch Pullback Kit with Built-in REX for Von Duprin 33/35 - 98/99 AX Series Exit Devices offers a seamless upgrade to motor-driven latch retraction for your access control systems. Designed specifically for the Von Duprin AX devices, this kit provides reliable performance with a user-friendly installation process. Featuring the next-generation MM5 Smart Module, the MLRK1-VDAX includes on-board diagnostics and audible feedback for troubleshooting adjustments and power issues. The innovative "PTS" allows for a quick two-second electronic adjustment, simplifying the installation process further with a push-button programming feature. Capable of pulling various devices, including tall vertical rod doors, this kit ensures that installations are flexible and efficient. With a voltage range of 24 to 28 VDC and continuous duty electric dogging, the system auto-reengages if the push pad is disengaged, enhancing security. The robust 6" cable with Quick Molex Connector makes power connections straightforward, and long wire runs of up to 300 feet with 18-gauge wire facilitate versatile setups. This kit is UL Listed and backed by a three-year warranty, making it a dependable choice for professionals seeking to enhance security and operational efficiency in their facilities.

UL Motorized Latch Pullback Kit with Built-in REX for Von Duprin 33/35 - 98/99 AX (5lbs Pressure) Series Exit Devices 36in/48in

The MLRK1-VD is a cost-effective and straightforward way to upgrade your Von Duprin 33/35 & 98/99 series device to motor-driven latch retraction in the field. For AX devices, see the MLRK1-VDAX listed on the cutsheet below. UL Listed + 3 Year Warranty

Features:

• Next Generation MM5 Smart Module: On board diagnostics
• With audible feedback for adjustment and power issues
• "PTS": 2 second electronic adjustment for easy post
• Installation adjustment. Simplified further with a push button to engage programming & shorter program sequence.
• Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!
• Electric dogging rated for continuous duty - Auto reengage if push pad is pulled from dogged position
• Up to 300’ wire run with 2-18ga wire - Long wire runs
• Provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel.
• 6" cable with robust Quick Molex Connector for MM5 module to 6’ Power lead to easily connect to power supply lead.

Specifications:

• Voltage Range – 24 TO 28 VDC
• System Protection – Unit Shutdown When Voltage Exceeds 28VDC
• Standard - Average Current Peak: 900MA, Average Current Hold: 215MA
• PTS Adjustment – Approx. 1/4"
• Wire Run: 300’ with 18GA Wire
• Product Details: Box: 10.5" x 3.75": x 2.5"
• Weight: 2 lbs
• Cutdown Details: 36"/ 48" - 6.5" Filler Plate Needed

Accessories:

• Request to Exit (VDREXKIT-ED) - Built-in to all Units or order an additional for double REX applications.
• Latchbolt Monitor (VDLBMKIT-ED) - Field or Factory install
• Low Current versions of REX or LBM available, add LC to Part #.
• 1- Cable tie
• 1- 40041 Self-tapping Screw
