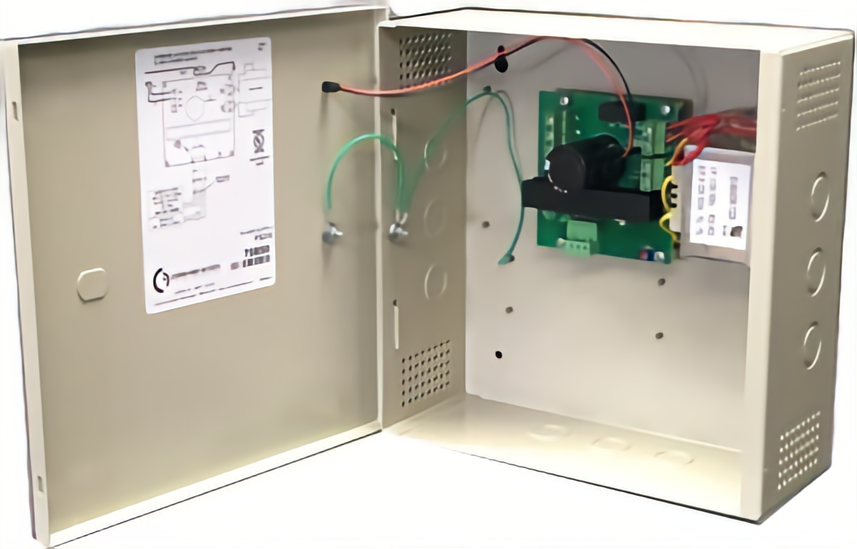

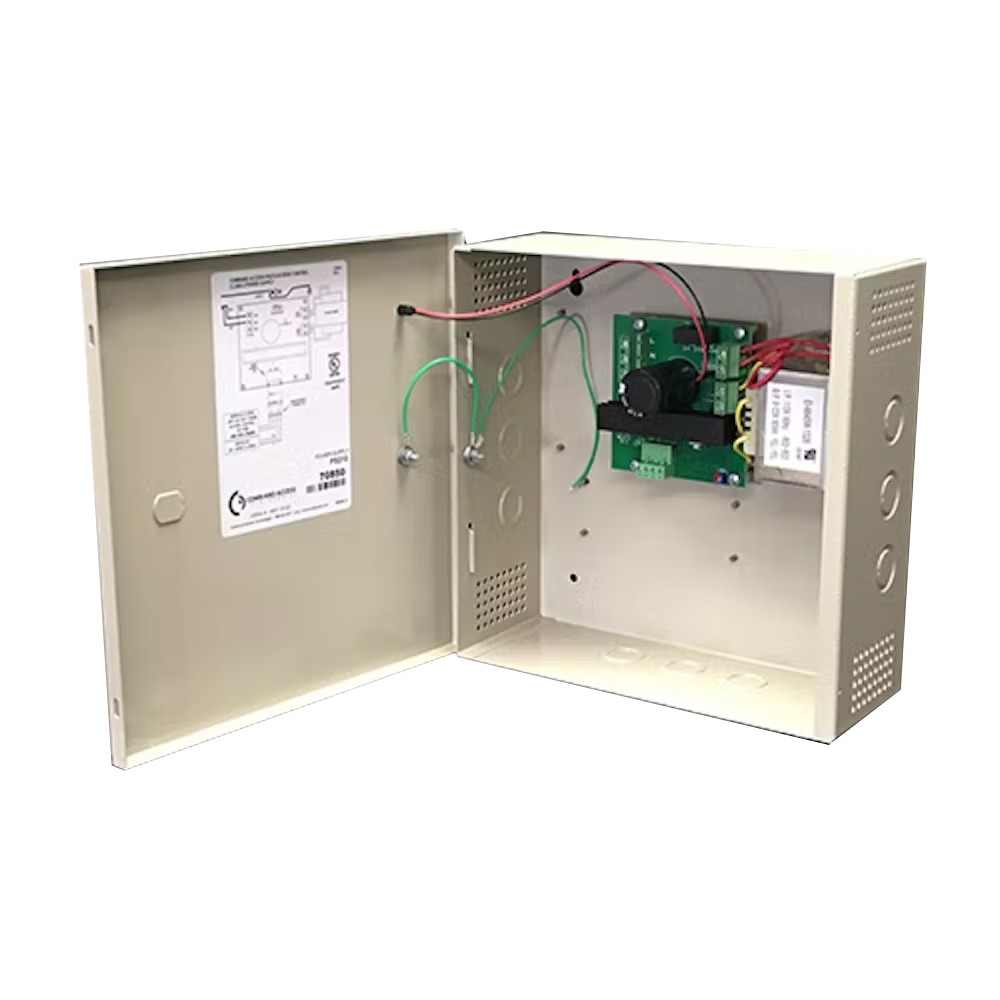

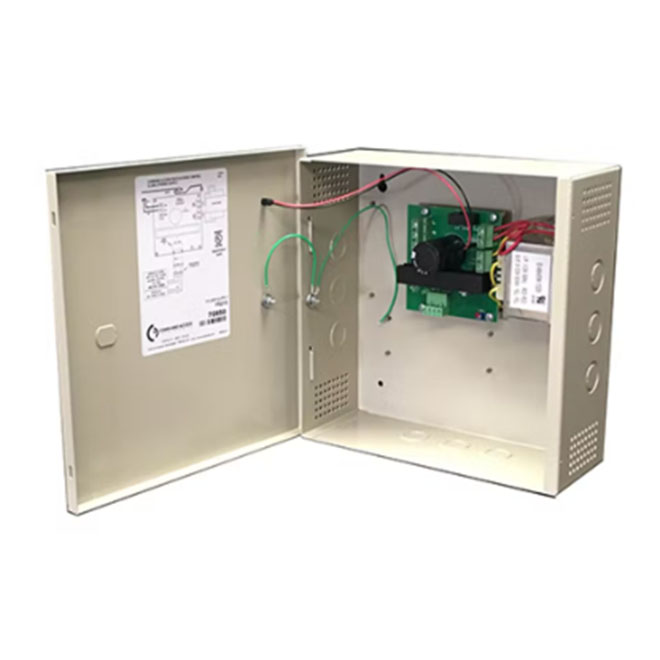

Command PS210 Power Supply
Images may not represent actual product and finish

Command PS210 Power Supply

Your Price: $213.11
Retail Price:$340.99
Your Savings:$127.88(38%)
Power Supply with Boost Circuitry for up to 2 Electric Latch Pullback Devices, 1.5A 24V Continuous 2.5A Boost, Linear Design, 1 Solid-State I/O, UL 294 6E / CSA Design
Part Number : CAC_PS210
Availability: 124 In Stock
Visa, Mastercard, American Express, Discover, PayPal, Amazon Pay

Net 30 terms available

Command PS210 Power Supply

Command Access PS210 2Amp 24 Volt Momentary 3Amp Boost Heavy Duty Regulated Linear Power Supply with Boost Circuitry
  • Input Voltage:
  • 120 VAC, 60 Hz
  • Input Fuse: 2 Amp Fuse @ 250VAC
  • Output Voltage:
  • 2A @ 24VDC
  • 1 Solid State I/O's - 2A auto resetting fused outputs
  • Over-voltage protection
  • Output Voltage trim pot
  • Fire Alarm:
  • Fire alarm tie-in
  • Electrical:
  • Temperature range: 0 to 49° C - 32 to 120° F
  • Maximum humidity: 85%
  • Led's:
  • Red = A/C Power indicator
  • Green = D/C Output indicator
  • Features & Benefits:
  • Linear design insures ample inrush/hold current for latch retraction
  • Door mounted LED Power Indicator
  • Easy to remove euro connectors
  • Mechanical Details:
  • Enclosure dimensions: PS210 (11" W x 11" H x 4" D).
  • 1/2" & 3/4" knockouts on all sides
  • Hinge-less removable cover - Cam lock not provided
  • Product Weight: PS210 - 10lbs
  • Shipment Weight: PS210 - 11lbs

Features

  • Input Voltage:
  • Output Voltage:
  • 2A @ 24VDC
  • Enclosure dimensions: PS210 (11" W x 11" H x 4" D).
  • Green = D/C Output indicator
  • Easy to remove euro connectors
  • Product Weight: PS210 - 10lbs
  • Door mounted LED Power Indicator
  • Linear design insures ample inrush/hold current for latch retraction
  • Maximum humidity: 85%
  • Electrical:
  • 120 VAC, 60 Hz
  • Output Voltage trim pot
  • 1/2" & 3/4" knockouts on all sides
  • Hinge-less removable cover - Cam lock not provided
  • Led's:
  • 1 Solid State I/O's - 2A auto resetting fused outputs
  • Red = A/C Power indicator
  • Shipment Weight: PS210 - 11lbs
  • Temperature range: 0 to 49° C - 32 to 120° F
  • Input Fuse: 2 Amp Fuse @ 250VAC
  • Fire Alarm:
  • Features & Benefits:
  • Mechanical Details:
  • Fire alarm tie-in
  • Over-voltage protection

Attributes

Manufacturer surcharge: $ 0.0

Access Type: Power Supply

Alternate Codes: PS210

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies

Commercial Residential: Commercial

Fire Alarm Relay: Yes

Fused Outputs: 1

Installation: Commercial

Output Amps: 1.5 AMPS

Output Volts: 24VDC

Pack Qty: 1

Purpose: Access Control

Regulated: Yes

Series: Command Access Power Supplies

Size: 11" x 11" x 4"

Subtype: Power Supplies

Transformer Output: Up to 5 Amps

Transformer Type: DC

Type: Linear

Unit of Measure: Each

Voltage: 24V DC
