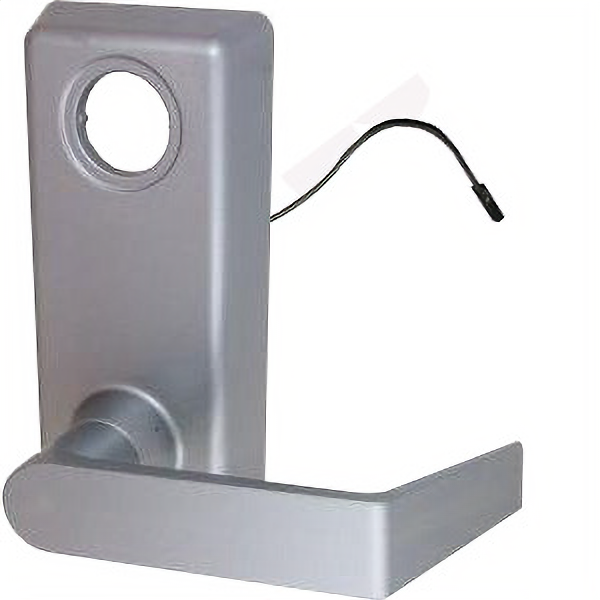

Command V23EU-06-628-24V 24V Electric Unlock Trim for Von Duprin 230L, 22 Series, 628/US28 Aluminum

Command Access V23EU-06-628-24V 24V Electric Unlock Trim is an innovative solution designed for the Von Duprin 230L series exit trim, making it ideal for stairwell conditions where electric pullback is not necessary. This trim modification meets fire and life safety codes, offering a reliable fail-safe condition that traditional electrified latch pullback devices cannot provide. With a low current draw, you won’t need an expansive power supply, ensuring cost-effectiveness in your security installations. This model features continuous duty solenoids for seamless operation, housed within the trim for easy installation-no special door prep is required. The V23EU trim is offered with a hassle-free 3-Year Warranty for added peace of mind. Operating at either 12 or 24VAC/DC (specify voltage when ordering), it supports a variety of applications with amperage ratings of 250 mA at 12V and 150 mA at 24V. The solenoid coil resistance is 49 Ω for 12V and 159 Ω for 24V. Available in Fail Secure (EU) mode, the outside lever can be electronically unlocked, allowing for convenient access while ensuring immediate egress from the inside. This trim is perfect for enhancing security without compromising safety.

24V Electric Unlock (EU) Trim for Von Duprin 230L Trim, 22 Series, 628/US28 Aluminum

The electronic modification of the Von Duprin 230L series exit trim is perfect for stairwell conditions or applications where electric pullback of the exit device’s latchbolt is cost prohibitive or not required. This is especially practical in applications where fire/life safety codes require "fail safe" condition which is not an option with electrified latch pullback devices. Because the current draw is quite low there is no need for a more expansive power supply to provide the surge current. These trims are purchased as modifications only.

Features:

• Continuous duty solenoids used to insure trouble-free operation.
• Internally mounted solenoid to ease installation (no special door prep required).
• No hassle 3-Year Warranty.

Specifications:

• Operating Voltage: 12 or 24VAC/DC (+ or - 10%) (must specify 12 or 24 volts when ordering).
• Amperage: 12V = 250 mA / 24V = 150 mA.
• Solenoid coil resistance: 12V = 49 Ω / 24V = 159 Ω.

Options:

• Available Fail Safe (Electrically Locked) or Fail Secure (Electrically Unlocked).
• Voltage Options: 12V or 24V (AC/DC).
• REE: Request to Enter switch available.
• CRU2: Current Reduction Unit to improve solenoid life in "continuously on" applications.
• CRU2i: The intelligent CRU2: automatically detects AC or DC input voltage between 12 to 30 volts and converts it to operate our 12V exit trims. Additionally, it adjusts the current to the solenoid allowing the exit trim to run cooler and last longer without any manual adjustments.

Models:

• V23EL - storeroom (fail safe): Outside lever locked (EL) electronically. Switched power allows outside lever to retract latch(es). Outside key momentarily unlocks outside lever to retract latch(es). Inside push pad is always free for immediate egress.
• V23EU - storeroom (fail secure): Outside lever unlocked (EU) electronically. Switched power allows outside lever to retract latch(es). Outside key momentarily unlocks outside lever to retract latch(es). Inside push pad is always free for immediate egress.
