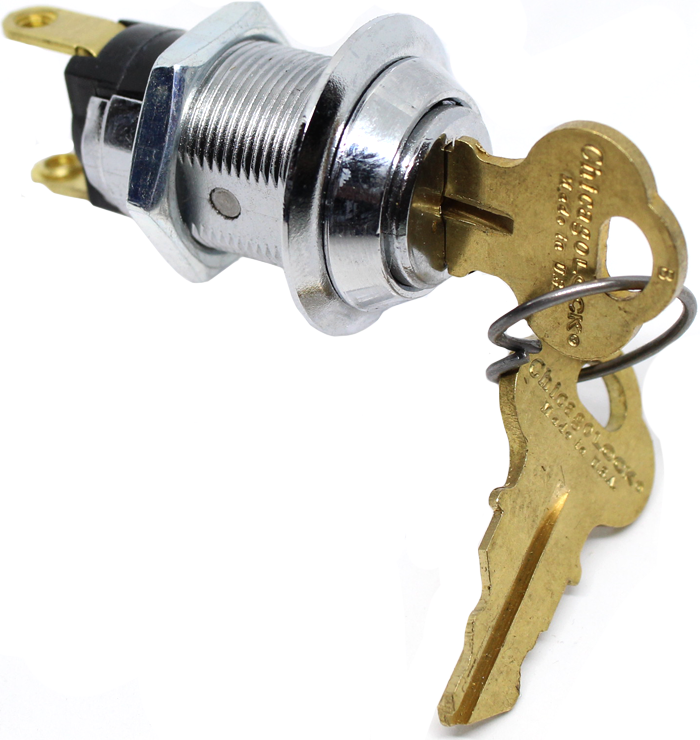

Compx C2174-1DC-KD DC Switch Lock 1-9/16in Off Only

Compx Security Products C2174-1DC-KD DC Switch Lock 1-9/16in Off Only offers a reliable and secure locking solution for various applications. This switch lock features the Ace II® Lock Assembly, ensuring durability and consistent performance. Operated by manually rotating the inserted key 90° clockwise from the open position to the closed position, this maintaining contact switch provides straightforward functionality. Designed with a single pole, single throw (SPST) configuration, the C2174-1DC-KD can handle up to 7 amps at 28 VAC/VDC, making it suitable for a variety of electrical needs. With an impressive electrical life of 6,000 cycles at maximum load and an initial contact resistance of 50 milli ohms, this switch lock promises longevity and dependability. The bright chrome finish not only enhances its aesthetic appeal but also contributes to its corrosion resistance. Two keys are included per pack, ensuring you have access to your lock at all times. Note that master keying is not available for this model, and it utilizes a D137-CLC key blank. Whether for commercial or residential use, the Compx Security Products C2174-1DC-KD is an essential component for enhancing security and control.

DC Switch Lock 1-9/16in Off Only

Single Pole, Single Throw:

• Ace II® Lock Assembly.
• Maintaining contact switch operated by manually rotating inserted key 90° clockwise from open to closed position.
• Momentary contact switch locks feature spring return from closed to open position after 90° clockwise key rotation to closed position.
• Contact configuration: SPST
• 7 amps @ 28 VAC/VDC
• Electrical Life: 6,000 cycles @ Max. Load.
• Contact Resistance: 50 milli ohms initial maximum.
• Bright Chrome finish.
• Two Keys per pack.
• Master - Keying not available.
• D137-CLC key blank.

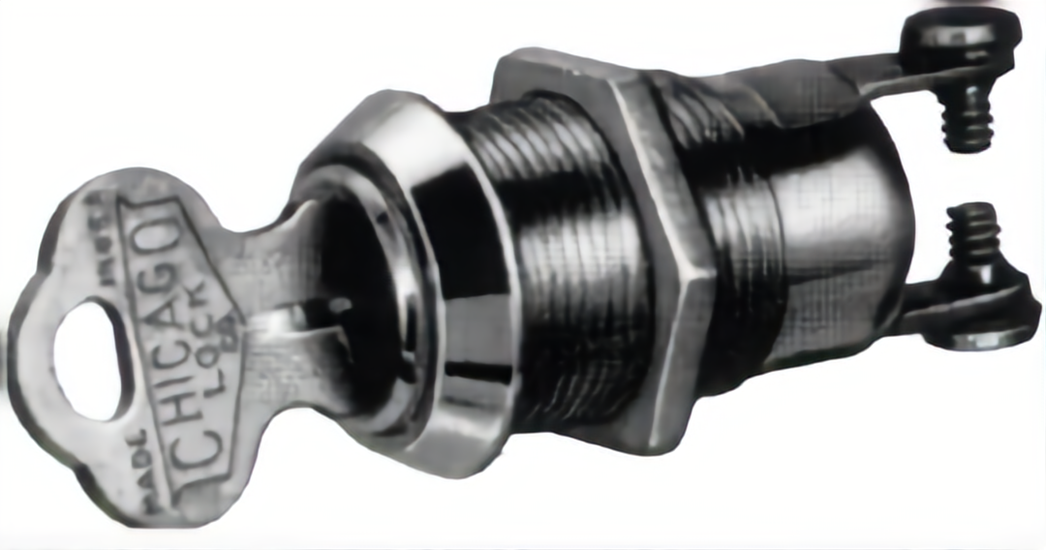

• Double Bitted Assembly With Eleven Criss-Cross Blade Tumblers.
• Lock operation same as 4073 Series.
• Contact configuration:SPST
• 7 amps @ 28 VAC/VDC
• Electrical Life: 6,000 cycles @ Max Load.
• Contact Resistance: 50 milli ohms initial maximum.
• Bright Chrome Finish
• Two keys per lock.
• Master &3151; Keying not available.
• DK-4 key blank

Features

• Maintaining contact switch operated by manually rotating inserted key 90° clockwise from open to closed position.
• Bright Chrome finish.
• Master - Keying not available.
• Two Keys per pack.
• Momentary contact switch locks feature spring return from closed to open position after 90° clockwise key rotation to closed position.
• Electrical Life: 6,000 cycles @ Max. Load.
• Contact Resistance: 50 milli ohms initial maximum.
• Ace II® Lock Assembly.
• Contact configuration: SPST
• D137-CLC key blank.
• 7 amps @ 28 VAC/VDC

Resources

• Cut Sheet
