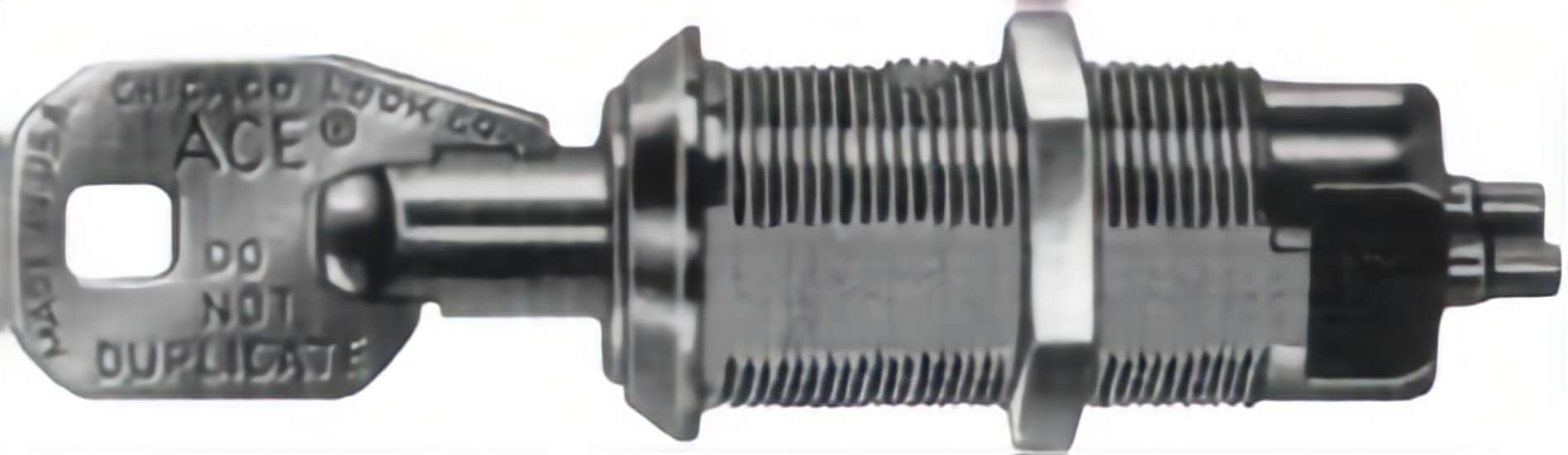

Compx C4073-1DC-KAPL927 Switch Lock Ace Solder Terminal

Compx Security Products C4073-1DC-KAPL927 Switch Lock Ace Solder Terminal offers a robust solution for securing access to various applications. This single pole, single throw switch lock features an Ace II® Lock Assembly, ensuring reliable performance with every use. The lock operates by manually rotating the inserted key 90° clockwise, transitioning from the open to closed position. Engineered for durability, this maintaining contact switch can handle up to 7 amps at 28 VAC/VDC and boasts an impressive electrical life of 6,000 cycles at maximum load. With a contact resistance of just 50 milli-ohms initially, it guarantees efficient operation over time. The switch lock is finished in bright chrome, providing an aesthetically pleasing look while enhancing corrosion resistance. Each package includes two keys, allowing for immediate use straight out of the box. Please note that master keying is not available, and it utilizes the D137-CLC key blank for replacements. Ideal for building professionals and knowledgeable homeowners, the C4073-1DC-KAPL927 is a reliable choice for securing drawers, cabinets, and other access points. With its easy installation and dependable functionality, this switch lock is an essential addition to any security hardware collection.

Switch Lock Ace Solder Terminal

Single Pole, Single Throw:

• Ace II® Lock Assembly.
• Maintaining contact switch operated by manually rotating inserted key 90° clockwise from open to closed position.
• Momentary contact switch locks feature spring return from closed to open position after 90° clockwise key rotation to closed position.
• Contact configuration: SPST
• 7 amps @ 28 VAC/VDC
• Electrical Life: 6,000 cycles @ Max. Load.
• Contact Resistance: 50 milli ohms initial maximum.
• Bright Chrome finish.
• Two Keys per pack.
• Master - Keying not available.
• D137-CLC key blank.

• Double Bitted Assembly With Eleven Criss-Cross Blade Tumblers.
• Lock operation same as 4073 Series.
• Contact configuration:SPST
• 7 amps @ 28 VAC/VDC
• Electrical Life: 6,000 cycles @ Max Load.
• Contact Resistance: 50 milli ohms initial maximum.
• Bright Chrome Finish
• Two keys per lock.
• Master &3151; Keying not available.
• DK-4 key blank

Features

• Maintaining contact switch operated by manually rotating inserted key 90° clockwise from open to closed position.
• Bright Chrome finish.
• Master - Keying not available.
• Two Keys per pack.
• Momentary contact switch locks feature spring return from closed to open position after 90° clockwise key rotation to closed position.
• Electrical Life: 6,000 cycles @ Max. Load.
• Contact Resistance: 50 milli ohms initial maximum.
• Ace II® Lock Assembly.
• Contact configuration: SPST
• D137-CLC key blank.
• 7 amps @ 28 VAC/VDC

Resources

• Cut Sheet
