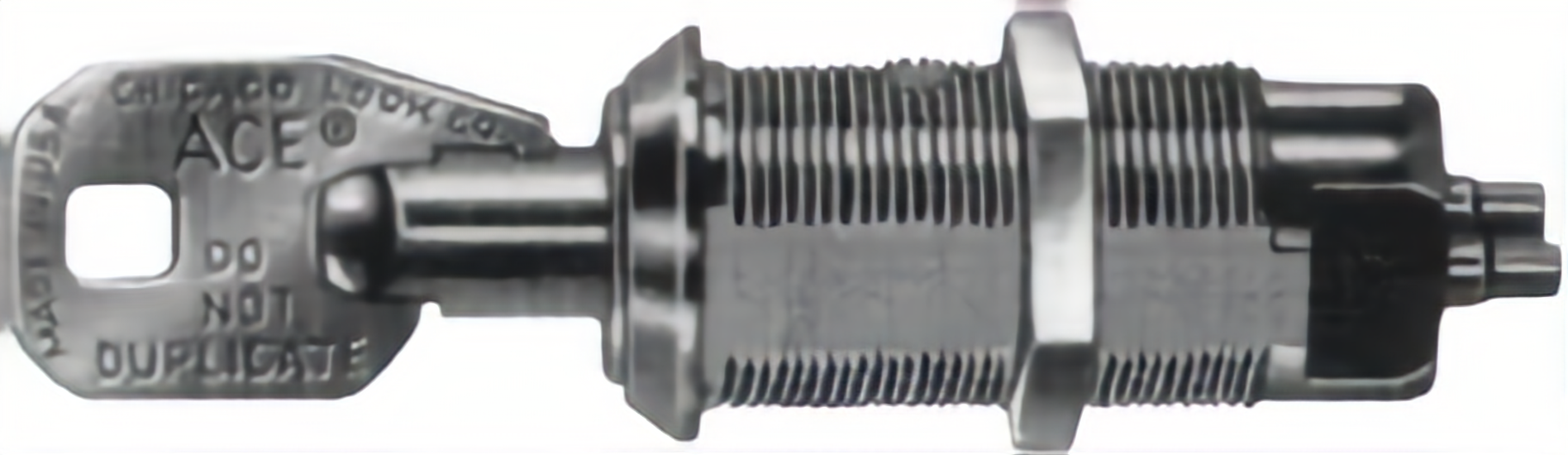

Compx C4073-2DC-KAPL910 Switch Lock Ace Solder Terminal

Compx Security Products C4073-2DC-KAPL910 Switch Lock Ace Solder Terminal offers a reliable and efficient locking solution for various applications. This switch lock features a Single Pole, Single Throw (SPST) configuration, ensuring a straightforward operation that is both intuitive and effective. The Ace II® Lock Assembly operates with a maintaining contact switch, activated by manually rotating the inserted key 90° clockwise from the open to closed position. Designed for durability, this lock boasts an electrical life of 6,000 cycles at maximum load, making it ideal for repeated use in demanding environments. With a maximum contact current of 7 amps at 28 VAC/VDC, the C4073-2DC-KAPL910 is engineered to handle substantial electrical demands. Additionally, the lock's contact resistance is a mere 50 milliohms, ensuring minimal energy loss. The bright chrome finish not only enhances the visual appeal but also provides added corrosion resistance, making it suitable for various settings. Each lock comes with two keys, and while master keying is not available, the D137-CLC key blank ensures compatibility with a range of systems. Whether for automotive, residential, or commercial use, the Compx Security Products C4073-2DC-KAPL910 Switch Lock is a dependable choice for security and convenience.

Switch Lock Ace Solder Terminal

Single Pole, Single Throw:

• Ace II® Lock Assembly.
• Maintaining contact switch operated by manually rotating inserted key 90° clockwise from open to closed position.
• Momentary contact switch locks feature spring return from closed to open position after 90° clockwise key rotation to closed position.
• Contact configuration: SPST
• 7 amps @ 28 VAC/VDC
• Electrical Life: 6,000 cycles @ Max. Load.
• Contact Resistance: 50 milli ohms initial maximum.
• Bright Chrome finish.
• Two Keys per pack.
• Master - Keying not available.
• D137-CLC key blank.

• Double Bitted Assembly With Eleven Criss-Cross Blade Tumblers.
• Lock operation same as 4073 Series.
• Contact configuration:SPST
• 7 amps @ 28 VAC/VDC
• Electrical Life: 6,000 cycles @ Max Load.
• Contact Resistance: 50 milli ohms initial maximum.
• Bright Chrome Finish
• Two keys per lock.
• Master &3151; Keying not available.
• DK-4 key blank

Features

• Maintaining contact switch operated by manually rotating inserted key 90° clockwise from open to closed position.
• Bright Chrome finish.
• Master - Keying not available.
• Two Keys per pack.
• Momentary contact switch locks feature spring return from closed to open position after 90° clockwise key rotation to closed position.
• Electrical Life: 6,000 cycles @ Max. Load.
• Contact Resistance: 50 milli ohms initial maximum.
• Ace II® Lock Assembly.
• Contact configuration: SPST
• D137-CLC key blank.
• 7 amps @ 28 VAC/VDC
