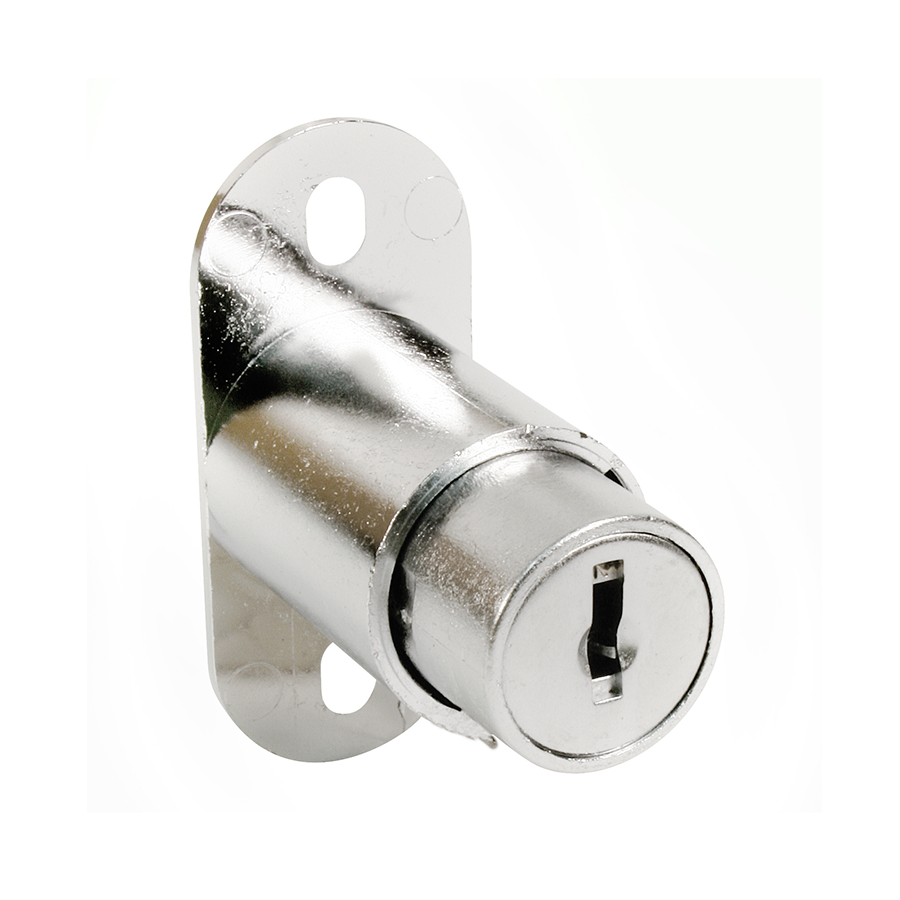

Compx C8043-KAC420A-26D Disc Sliding Door Lock 1in

Compx Security Products C8043-KAC420A-26D Disc Sliding Door Lock is expertly designed for wood sliding doors, ensuring a reliable and secure locking solution. This model requires a 7/8" diameter hole for the cylinder, making installation straightforward. Its operation features a push-in cylinder mechanism, allowing for easy locking of doors. The design permits the key to be removed in both locked and unlocked positions, enhancing convenience for users. The C8043 lock is compatible with the D8785 key blank, allowing it to key together seamlessly with other disc tumbler locks. For those requiring master keying, this lock can be configured to E41A using the D8783 key blank. Included in the packaging are two keys, a strike, and mounting screws, providing everything necessary for installation. If a trim ring is needed, it can be ordered separately as model C2017. With a bolt travel of 7/16" and a plunger bolt type, the C8043 ensures durability and effectiveness. This lock not only enhances security for residential sliding doors but also offers versatility for various applications within the category of cam and drawer locks. Choose the Compx C8043-KAC420A-26D for a dependable locking solution that combines ease of use with robust security features.

Disc Sliding Door Lock 1in

• Application: For wood sliding doors. Requires a 7/8" diameter hole in front door for cylinder.
• Operation: C8042 push in cylinder, key turn engages bolt behind strike. C8043: pushing in cylinder locks doors. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for keying.
• Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, strike and mounting screws. If trim ring is required, order C2017 separately.

Key Codes Used:

• 1 Code - C415A
• 3 Codes - C346A, C413A and C415A
• 6 Codes - C346A, C390A, C413A, C415A, CC420A and C642A

Features

• Master keying to E41A using D8783 key blank.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for keying.
• Application: For wood sliding doors. Requires a 7/8" diameter hole in front door for cylinder.
• Operation: C8042 push in cylinder, key turn engages bolt behind strike. C8043: pushing in cylinder locks doors. Key removable in both locked and unlocked positions.
• Packaging: Supplied with two keys, strike and mounting screws. If trim ring is required, order C2017 separately.
