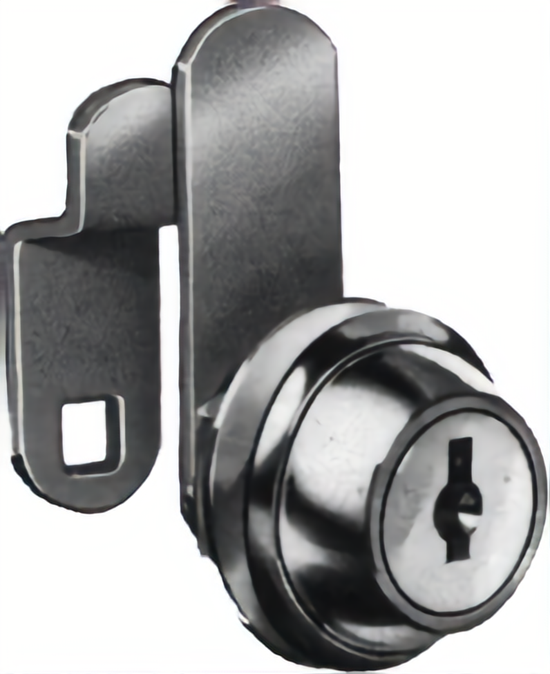

Compx C8051-KAC413A-14A Disc Cam Lock 7/16in

Compx Security Products C8051-KAC413A-14A Disc Cam Lock 7/16in offers a reliable solution for securing drawers and doors, whether right-hand or left-hand configurations. Designed for lipped/overlay construction with a straight cam or flush construction using a formed cam, this versatile lock is perfect for various applications. Its 90° cam turn allows for smooth operation, and the key can be removed in both locked and unlocked positions, ensuring convenience. This lock is compatible with other disc tumbler locks using the D8785 key blank, providing flexibility for keying. Additionally, it supports master keying to E41A with the D8783 key blank, making it an ideal choice for multi-level security needs. The product comes packaged with two keys, a trim washer, a spur washer for wood applications, a mounting nut, and two cams. If a flat washer is required for metal, it must be ordered separately (C2015-2C). With a bright nickel finish, the C8051-KAC413A-14A not only ensures durability but also adds an aesthetic touch to your installations. This cam lock is an essential addition to any professional or homeowner's security toolkit, delivering robust performance and ease of use across multiple settings.

Disc Cam Lock 7/16in

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Key Codes Used:

• 3 Codes - C346A, C413A and C415A.
• 6 Codes - C346A, C390A, C413A, C415A, C420A and C642A.
• 10 Codes - C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A.

Features

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately
