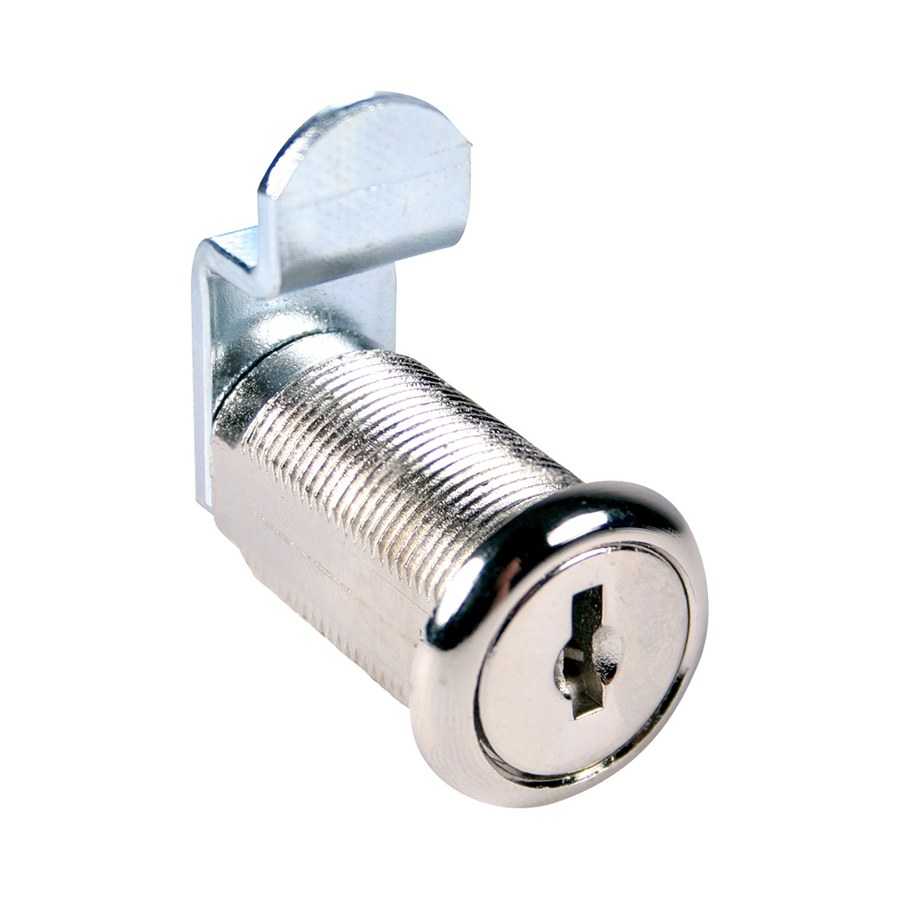

Compx C8052-KAC390A-14A Disc Cam Lock 5/8in

Compx Security Products C8052-KAC390A-14A Disc Cam Lock 5/8in offers a reliable locking solution ideal for both automotive and residential applications. Designed for drawers and R.H. or L.H. doors, this cam lock is compatible with lipped/overlay construction using a straight cam or flush construction with a formed cam. For optimal functionality, ensure that the combined thickness of the front and frame does not exceed the cylinder length. This lock features a 90° cam turn, allowing for smooth operation, with the added convenience of key removal in both locked and unlocked positions. The C8052 model is designed to key together with all other disc tumbler locks utilizing the D8785 key blank, while also supporting master keying with the D8783 key blank. Included in the package are two keys, a trim washer, a spur washer for wood installations, a mounting nut, and two cams. If you require a flat washer for metal applications, it is available separately as C2015-2C. With its bright nickel finish, the Compx C8052-KAC390A-14A not only provides security but also enhances the aesthetic of your installations, making it a versatile choice for professionals and homeowners alike.

Disc Cam Lock 5/8in

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Key Codes Used:

• 3 Codes - C346A, C413A and C415A.
• 6 Codes - C346A, C390A, C413A, C415A, C420A and C642A.
• 10 Codes - C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A.

Features

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Resources

• Cut Sheet
