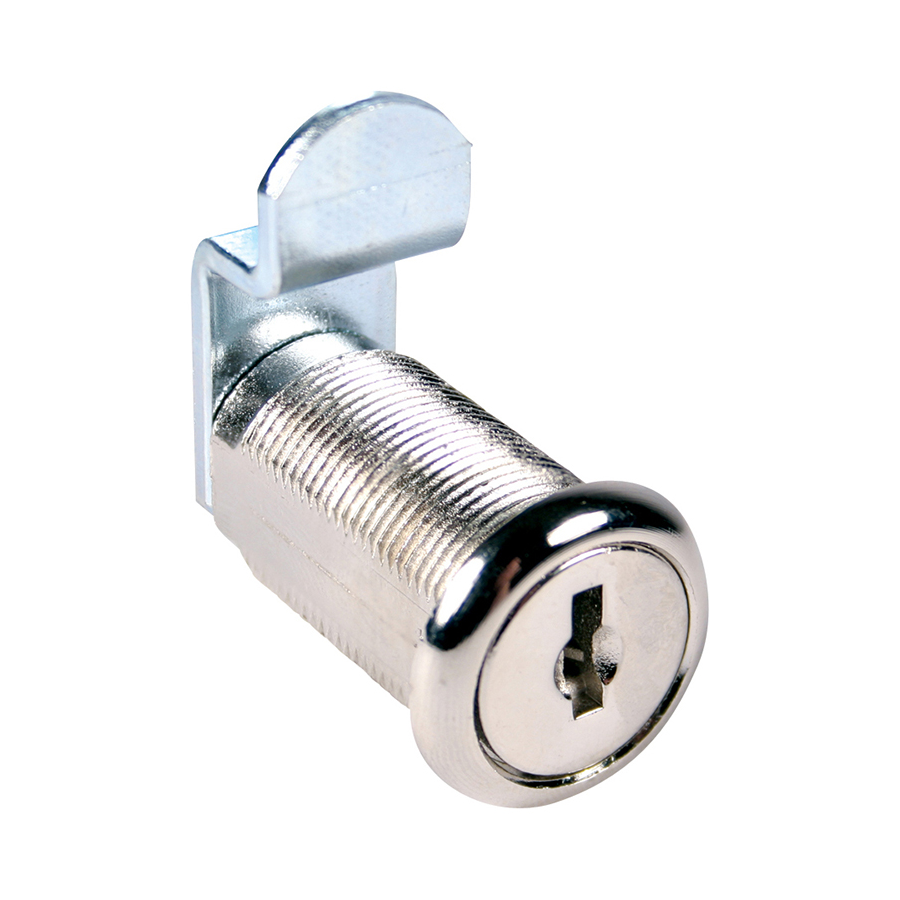

Compx C8052-KAC415A-14A Disc Cam Lock 5/8in

Compx Security Products C8052-KAC415A-14A Disc Cam Lock 5/8in offers a robust solution for securing drawers and doors, accommodating both right-hand and left-hand lipped/overlay or flush constructions. This versatile lock features a 90-degree cam turn, allowing for seamless operation, with the added convenience of key removal in both locked and unlocked positions. Designed for ease of use, the C8052 model is compatible with the D8785 key blank for keying together with other disc tumbler locks, and it can also be master keyed using the D8783 key blank. Its packaging includes two keys, a trim washer, a spur washer (for wood), a mounting nut, and two cams, ensuring you have everything necessary for installation. If you're working with metal, a flat washer can be ordered separately (C2015-2C). With a cylinder length of 5/8 inches, this lock is suitable for applications where the combined thickness of the front and frame does not exceed this measurement. Finished in bright nickel, the C8052-KAC415A-14A not only delivers reliability but also adds a polished look to your security setup. Whether for professional or residential use, this cam lock stands out as a dependable choice for enhancing your security measures.

Disc Cam Lock 5/8in

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Key Codes Used:

• 3 Codes - C346A, C413A and C415A.
• 6 Codes - C346A, C390A, C413A, C415A, C420A and C642A.
• 10 Codes - C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A.

Features

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Resources

• Cut Sheet
