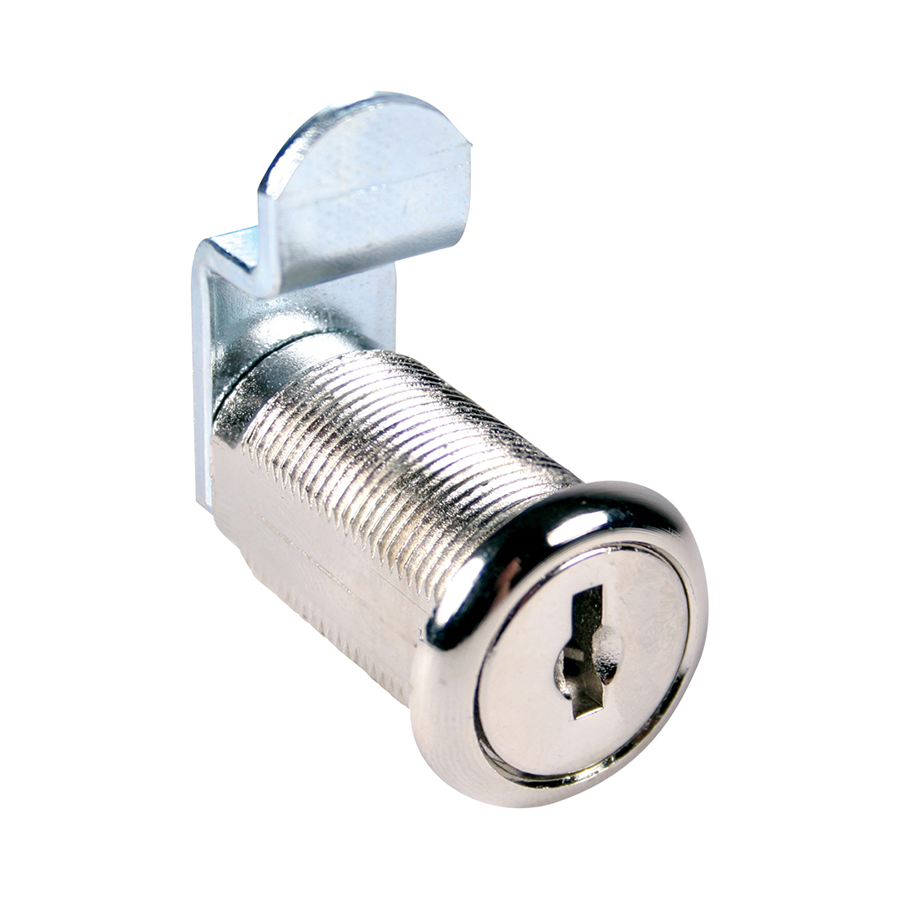

Compx C8052-KD-14A Disc Cam Lock 5/8in

Compx Security Products C8052-KD-14A Disc Cam Lock 5/8in is designed to enhance security for drawers and right-hand or left-hand doors with either lipped/overlay or flush construction. Featuring a 90° cam turn operation, this versatile lock allows for key removal in both locked and unlocked positions, providing convenient access while ensuring security. The C8052-KD-14A accommodates varied material thicknesses, with a maximum combined thickness of the front and frame not exceeding the cylinder length of 5/8 inches. It is compatible with all other disc tumbler locks using the D8785 key blank, making integration into existing systems seamless. For those requiring master keying, it can be keyed together with the E41A using the D8783 key blank. This product comes neatly packaged, including two keys, a trim washer, spur washer for wood applications, a mounting nut, and two cams. If a flat washer for metal is necessary, it can be ordered separately as C2015-2C. Finished in bright nickel, the C8052-KD-14A not only ensures robust security but also adds a polished aesthetic to your installations. Ideal for professionals and knowledgeable homeowners, this cam lock is a reliable choice for securing various applications.

Disc Cam Lock 5/8in

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Key Codes Used:

• 3 Codes - C346A, C413A and C415A.
• 6 Codes - C346A, C390A, C413A, C415A, C420A and C642A.
• 10 Codes - C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A.

Features

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Resources

• Cut Sheet
