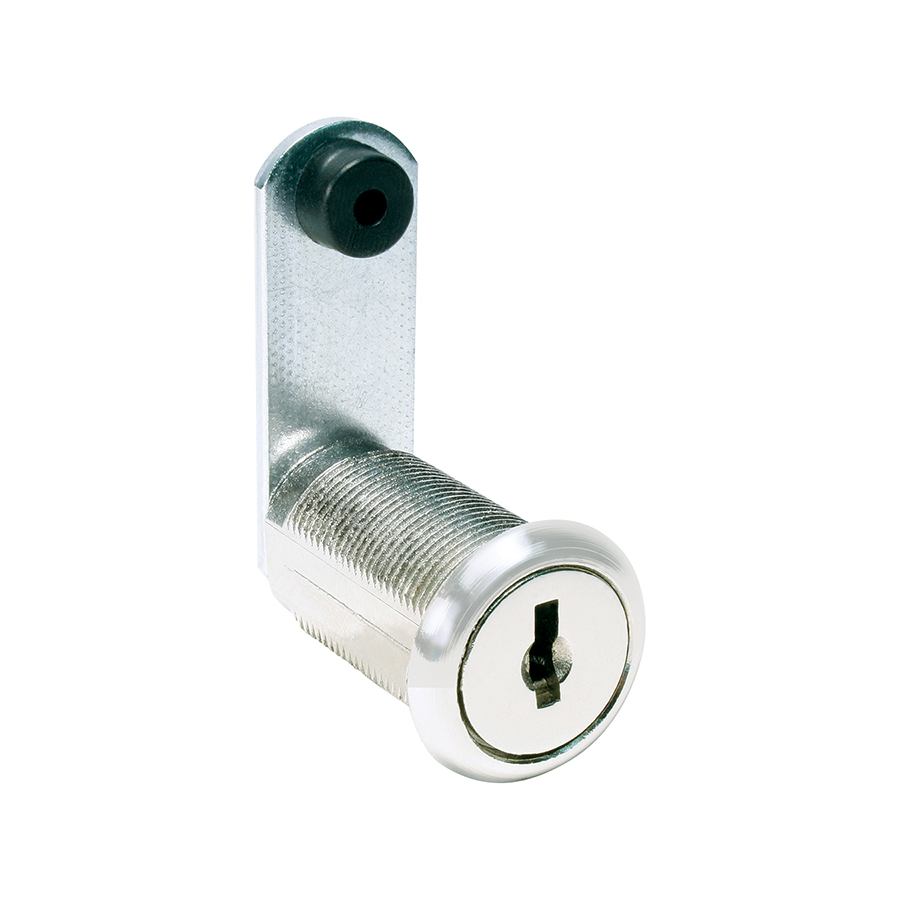

Compx C8053-KAC415A-14A Disc Cam Lock 1-3/16in

Compx Security Products C8053-KAC415A-14A Disc Cam Lock offers a reliable solution for securing drawers and doors with lipped or overlay construction. Designed for both right-hand and left-hand applications, this cam lock features a cylinder length of 1-3/16 inches and accommodates a maximum material thickness of 7/8 inches. The lock operates with a simple 90° cam turn, allowing for easy locking and unlocking. Notably, the key can be removed in both the locked and unlocked positions, enhancing convenience for users. The C8053 is compatible with all other disc tumbler locks using the D8785 key blank, providing versatility in keying options. For those requiring master keying, the lock can be keyed to E41A with the D8783 key blank. Each lock is packaged with two keys, a trim washer, a spur washer suitable for wood applications, a mounting nut, and two cams. If you need a flat washer for metal installations, it can be purchased separately. Finished in bright nickel, the C8053-KAC415A-14A combines functionality with a professional appearance, making it an excellent choice for both building professionals and discerning homeowners seeking dependable security solutions.

Disc Cam Lock 1-3/16in

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Key Codes Used:

• 3 Codes - C346A, C413A and C415A.
• 6 Codes - C346A, C390A, C413A, C415A, C420A and C642A.
• 10 Codes - C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A.

Features

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Resources

• Cut Sheet
