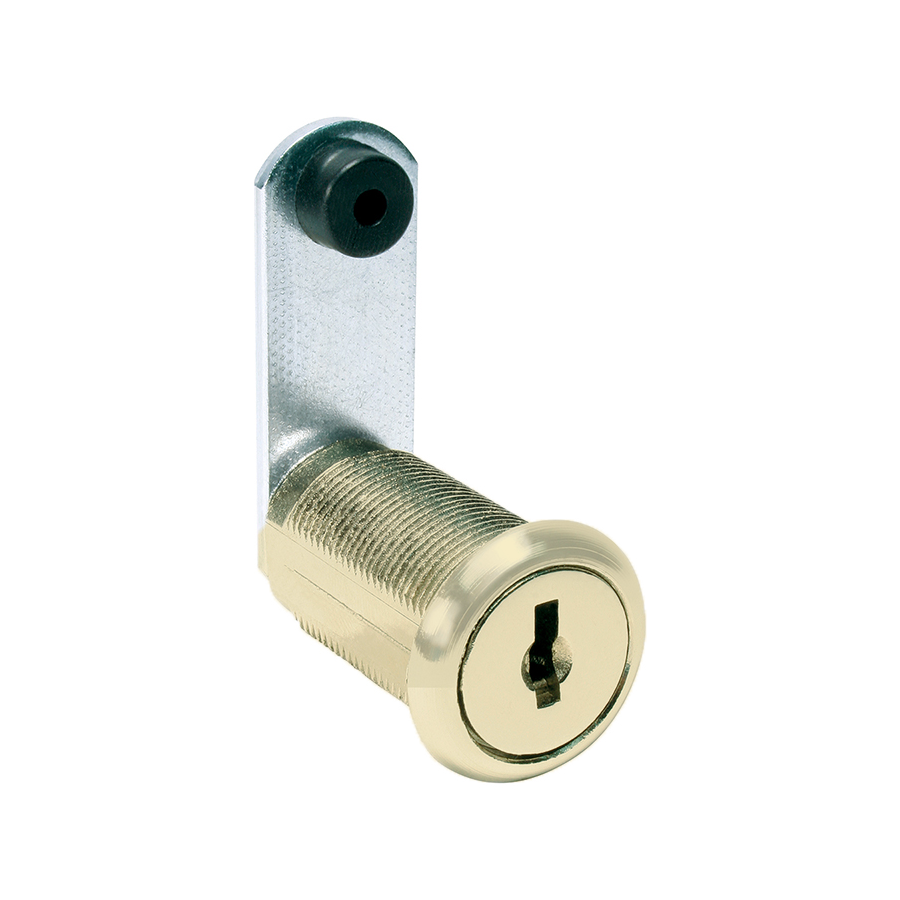

Compx C8053-KAC415A-3 Disc Cam Lock 1-3/16in

Compx Security Products C8053-KAC415A-3 Disc Cam Lock 1-3/16in is designed for reliable security in various applications, including drawers and both right-hand and left-hand doors with lipped/overlay or flush construction. This versatile cam lock features a straight cam for lipped or overlay installations and a formed cam for flush applications, ensuring a perfect fit for your security needs. Offering a 90° cam turn operation, the lock allows for easy and efficient engagement, with the added convenience of key removal in both locked and unlocked positions. The C8053 model is compatible with all other disc tumbler locks using the D8785 key blank, facilitating seamless keying alongside your existing locks. For those requiring master keying, it can be keyed to E41A using the D8783 key blank. The lock package includes two keys, a trim washer, a spur washer for wood applications, a mounting nut, and two cams. If a flat washer is required for metal applications, it can be ordered separately as C2015-2C. Finished in polished brass, the C8053-KAC415A-3 not only enhances security but also adds a touch of elegance to your installations. Trust Compx Security Products for dependable locking solutions tailored to your specific needs.

Disc Cam Lock 1-3/16in

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Key Codes Used:

• 3 Codes - C346A, C413A and C415A.
• 6 Codes - C346A, C390A, C413A, C415A, C420A and C642A.
• 10 Codes - C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A.

Features

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Resources

• Cut Sheet
