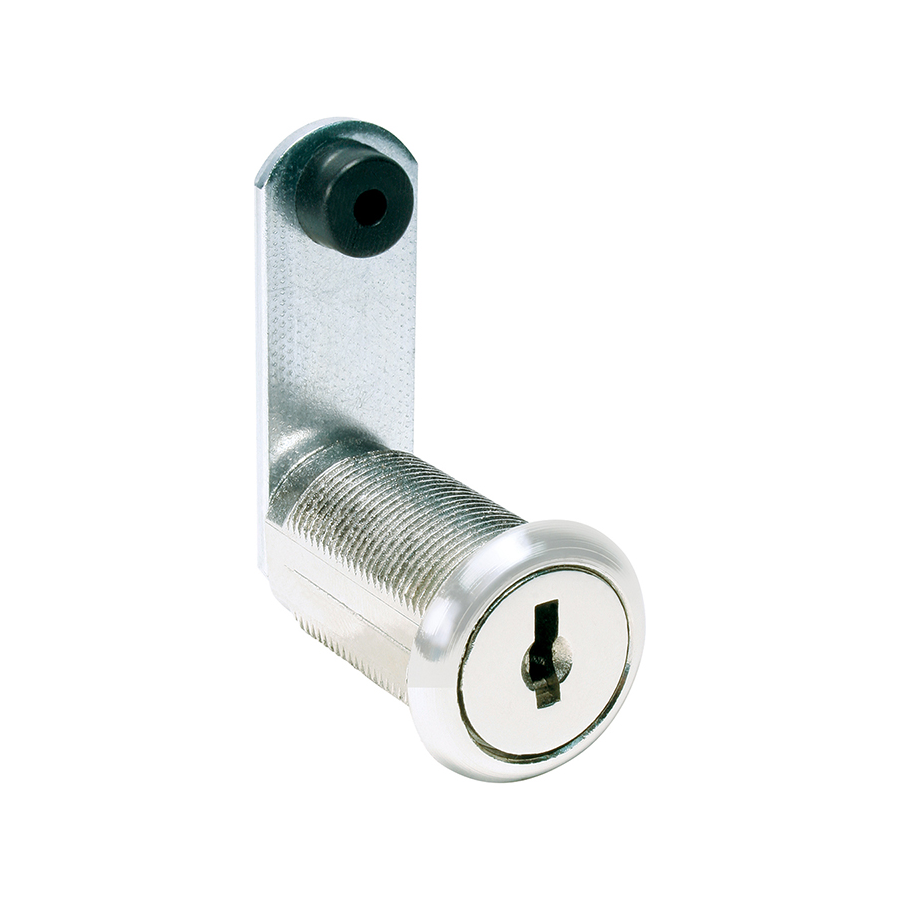

Compx C8053-KAC420A-14A Disc Cam Lock 1-3/16in

Compx Security Products C8053-KAC420A-14A Disc Cam Lock 1-3/16in offers a reliable solution for securing drawers and doors, accommodating both right-hand and left-hand configurations. This versatile lock is designed for lipped/overlay construction using a straight cam or flush construction with a formed cam. It has a maximum material thickness of 7/8 inches, ensuring it fits seamlessly into various applications. The C8053 features a smooth 90° cam turn mechanism, allowing for easy operation, while the key can be removed in both locked and unlocked positions for added convenience. This model is compatible with all other disc tumbler locks that utilize the D8785 key blank, and it can be master keyed to E41A using the D8783 key blank, ensuring flexibility in keying options. Included in the packaging are two keys, a trim washer, a spur washer for wood applications, a mounting nut, and two cams. If a flat washer for metal is needed, it can be ordered separately. With its bright nickel finish, this cam lock combines style and functionality, making it an ideal choice for building professionals and discerning homeowners seeking robust security solutions.

Disc Cam Lock 1-3/16in

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Key Codes Used:

• 3 Codes - C346A, C413A and C415A.
• 6 Codes - C346A, C390A, C413A, C415A, C420A and C642A.
• 10 Codes - C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A.

Features

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Resources

• Cut Sheet
