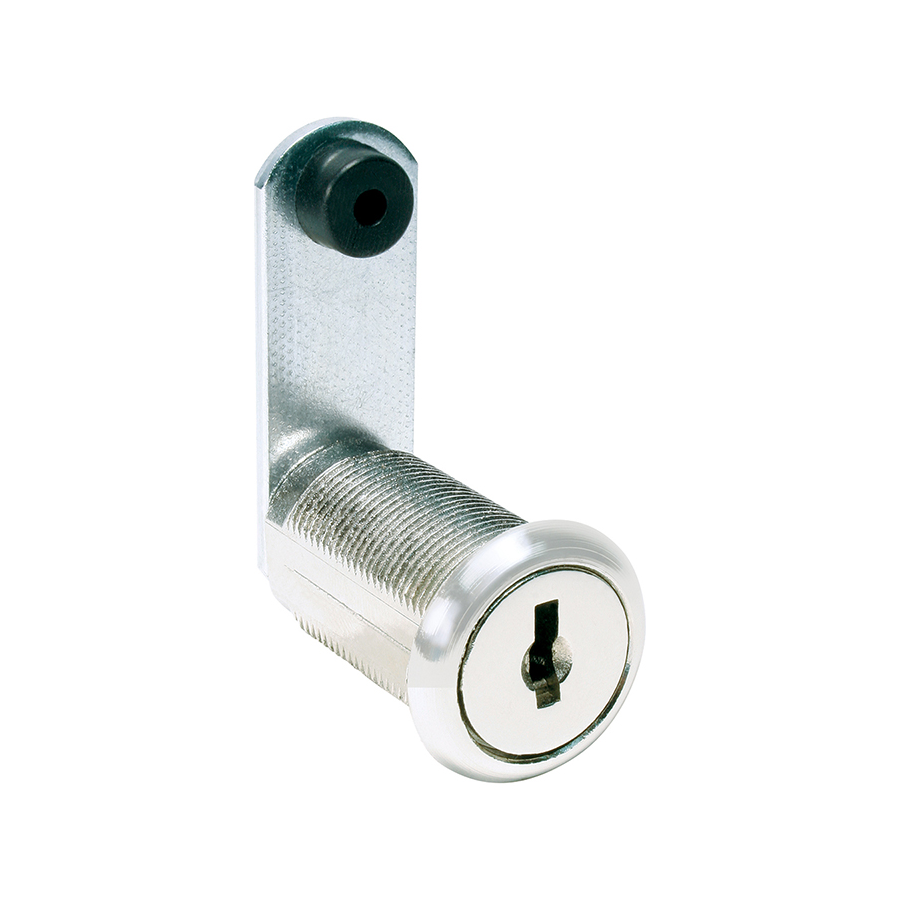

Compx C8053-KD-14A Disc Cam Lock 1-3/16in

Compx Security Products C8053-KD-14A Disc Cam Lock 1-3/16in provides a robust solution for securing drawers and doors with lipped or overlay construction. Designed for versatility, this lock accommodates both right-hand and left-hand applications, making it an ideal choice for various installations. With a cylinder length of 1-3/16 inches and a maximum material thickness of 7/8 inches, it fits seamlessly into your security setup. Operation is straightforward with a 90° cam turn, allowing for easy locking and unlocking. Notably, the key can be removed in both the locked and unlocked positions, offering added convenience. The C8053-KD-14A will key together with all other disc tumbler locks that utilize the D8785 key blank, facilitating simpler key management. For those who require master keying, it can be arranged using the D8783 key blank. Included with the lock are two keys, a trim washer, spur washer for wood, mounting nut, and two cams, ensuring that you have everything needed for installation. If you require a flat washer for metal applications, it can be ordered separately. Finished in bright nickel, this cam lock combines durability with a sleek appearance, making it a reliable choice for both residential and commercial use.

Disc Cam Lock 1-3/16in

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Key Codes Used:

• 3 Codes - C346A, C413A and C415A.
• 6 Codes - C346A, C390A, C413A, C415A, C420A and C642A.
• 10 Codes - C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A.

Features

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Resources

• Cut Sheet
