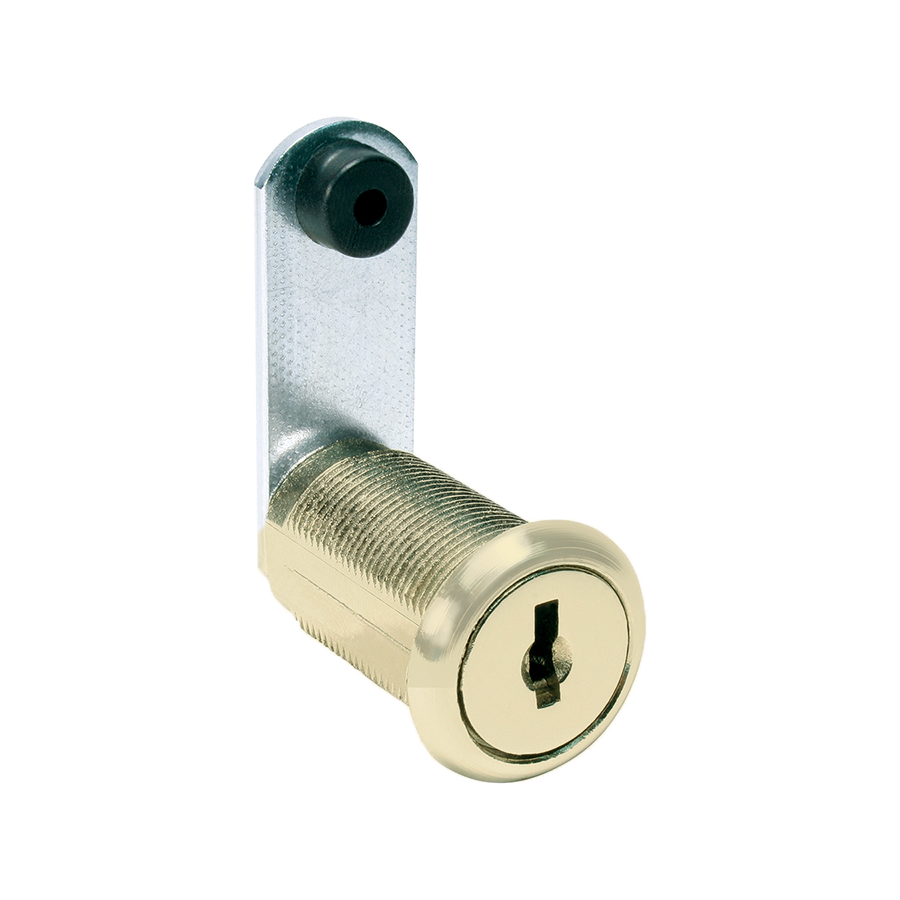

Compx C8053-KD-3 Disc Cam Lock 1-3/16in

Compx Security Products C8053-KD-3 Disc Cam Lock 1-3/16in is a versatile solution designed for both residential and commercial applications. This cam lock is ideal for drawers and right-hand or left-hand doors featuring lipped or overlay construction, as well as flush construction. The lock ensures a secure fit, provided that the combined thickness of the front and frame does not exceed the cylinder length. With a reliable 90-degree cam turn operation, the C8053-KD-3 allows for effortless locking and unlocking, while the keys can be removed in both the locked and unlocked positions for added convenience. This model is compatible with other disc tumbler locks using the D8785 key blank, facilitating easy keying and master keying options with the E41A key blank. The packaging includes two keys, a trim washer, a spur washer for wood installations, a mounting nut, and two cams. If a flat washer for metal is required, it can be ordered separately as part number C2015-2C. Finished in polished brass, the C8053-KD-3 not only offers functionality but also presents a classic aesthetic suitable for various environments. Ideal for building professionals and homeowners alike, this cam lock combines security with ease of use.

Disc Cam Lock 1-3/16in

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Key Codes Used:

• 3 Codes - C346A, C413A and C415A.
• 6 Codes - C346A, C390A, C413A, C415A, C420A and C642A.
• 10 Codes - C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A.

Features

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Resources

• Cut Sheet
