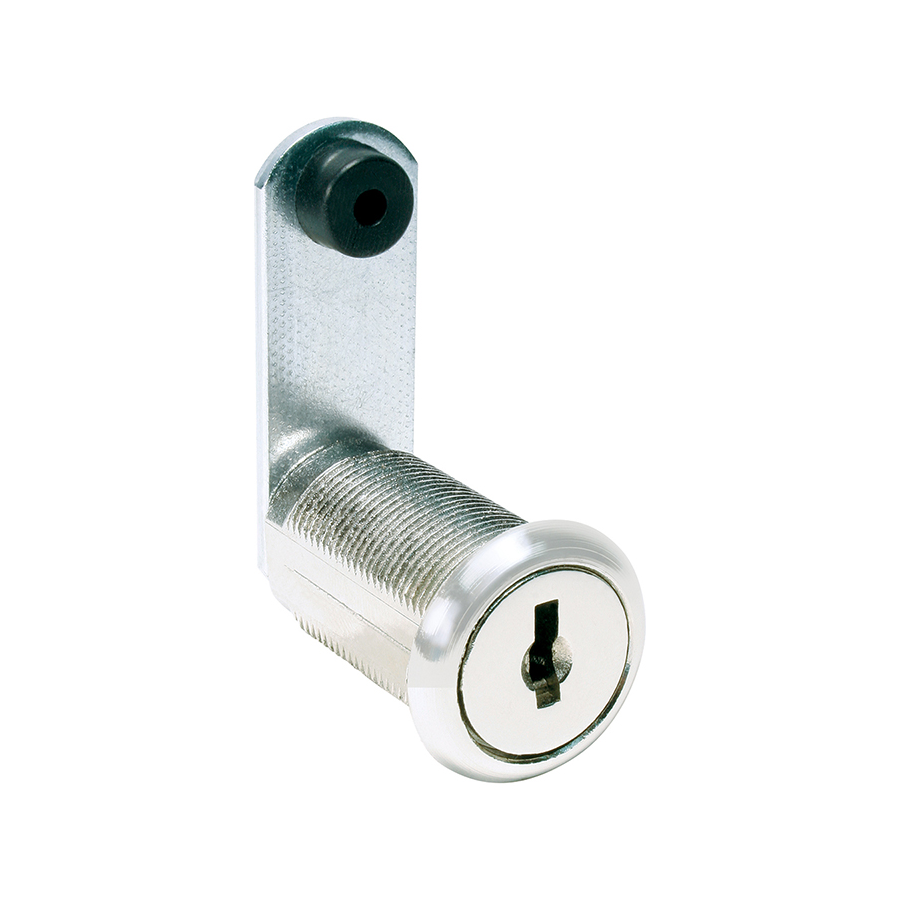

Compx C8053-MKKD-14A Disc Cam Lock 1-3/16in

Compx Security Products C8053-MKKD-14A Disc Cam Lock 1-3/16in is a versatile locking solution designed for both residential and commercial applications. This lock is ideal for drawers and right-hand or left-hand doors with lipped or overlay construction, as well as flush construction, utilizing either a straight or formed cam. It is crucial to ensure that the combined thickness of the door front and frame does not exceed the cylinder length for optimal performance. With a smooth 90° cam turn operation, this lock allows for key removal in both locked and unlocked positions, providing ease of use. Keying versatility is a standout feature, as the C8053-MKKD-14A can be keyed alike with other disc tumbler locks using the D8785 key blank and supports master keying with the E41A system using the D8783 key blank. Supplied with two keys, a trim washer, a spur washer suitable for wood, a mounting nut, and two cams, this lock is ready for installation. For metal applications, a flat washer can be ordered separately. Finished in bright nickel, the C8053-MKKD-14A combines durability with an appealing look, making it a reliable choice for your locking needs.

Disc Cam Lock 1-3/16in

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Key Codes Used:

• 3 Codes - C346A, C413A and C415A.
• 6 Codes - C346A, C390A, C413A, C415A, C420A and C642A.
• 10 Codes - C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A.

Features

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately
