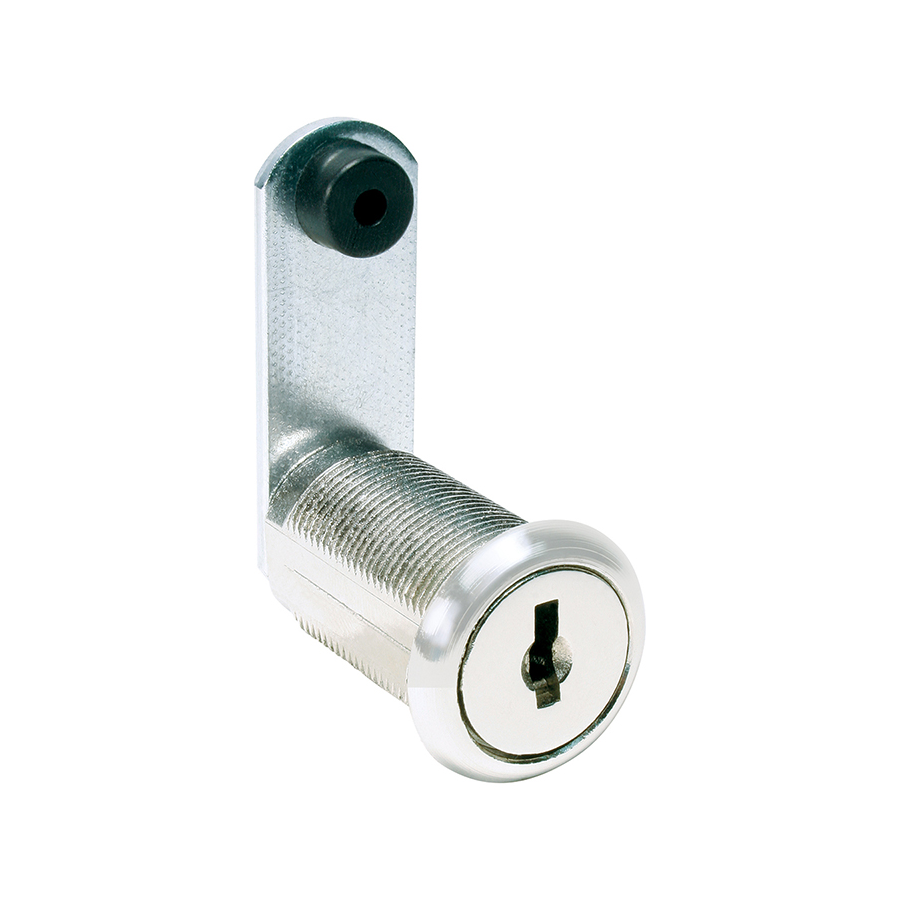

Compx C8054-KAC346A-14A Disc Cam Lock 15/16in

Compx Security Products C8054-KAC346A-14A Disc Cam Lock 15/16in is designed for versatility and robust security in both residential and commercial applications. This cam lock is ideal for drawers and right-hand or left-hand doors that feature lipped/overlay or flush construction. Its straight cam design accommodates overlay installations, ensuring a secure fit when the combined thickness of the front and frame does not exceed the cylinder length. Feature-rich, the C8054 allows for a smooth 90° cam turn, with the added convenience of key removal in both locked and unlocked positions. It is compatible with all disc tumbler locks using the D8785 key blank, making it easy to integrate into existing systems. For those requiring master keying, the lock can be keyed to E41A with the D8783 key blank. Each lock comes packaged with two keys, a trim washer, spur washer (for wood), mounting nut, and two cams. Should you need a flat washer for metal applications, it can be ordered separately as the C2015-2C. With its bright nickel finish and durable construction, the Compx C8054-KAC346A-14A Disc Cam Lock is a reliable choice for enhancing security in your locking systems.

Disc Cam Lock 15/16in

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Key Codes Used:

• 3 Codes - C346A, C413A and C415A.
• 6 Codes - C346A, C390A, C413A, C415A, C420A and C642A.
• 10 Codes - C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A.

Features

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Resources

• Cut Sheet
