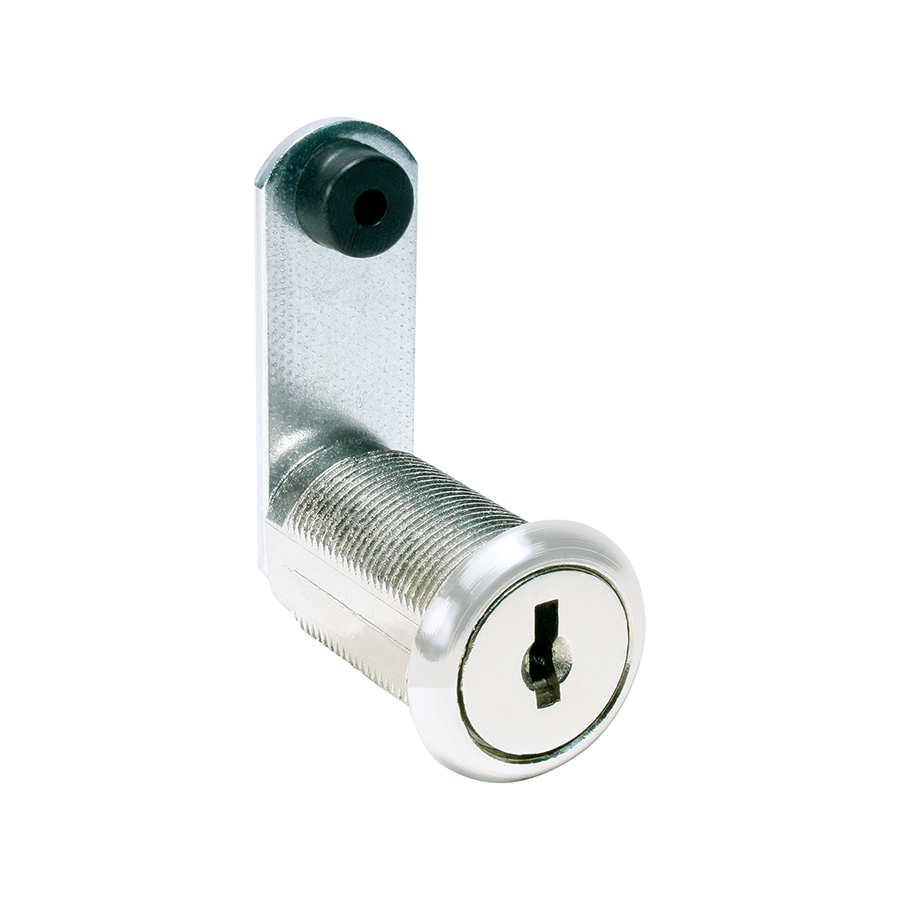

Compx C8054-KAC413A-14A Disc Cam Lock 15/16in

Compx Security Products C8054-KAC413A-14A Disc Cam Lock 15/16in offers reliable security solutions for drawers and doors with both lipped/overlay or flush construction. Designed for ease of use, this cam lock operates with a simple 90° turn, ensuring that the key can be removed in both locked and unlocked positions. Crafted to accommodate a maximum material thickness of 5/8", the C8054 model is ideal for a variety of applications. It is compatible with the D8785 key blank, allowing for seamless keying with other disc tumbler locks, while also supporting master keying with the E41A using the D8783 key blank. Each package includes two keys, a trim washer, a spur washer for wood applications, a mounting nut, and two cams, giving you everything you need for a straightforward installation. For metal applications requiring a flat washer, the C2015-2C can be ordered separately. With its bright nickel finish, this cam lock not only provides security but also complements a range of interiors. Trust the quality and performance of Compx Security Products to enhance your security needs with the C8054-KAC413A-14A Disc Cam Lock.

Disc Cam Lock 15/16in

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Key Codes Used:

• 3 Codes - C346A, C413A and C415A.
• 6 Codes - C346A, C390A, C413A, C415A, C420A and C642A.
• 10 Codes - C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A.

Features

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Resources

• Cut Sheet
