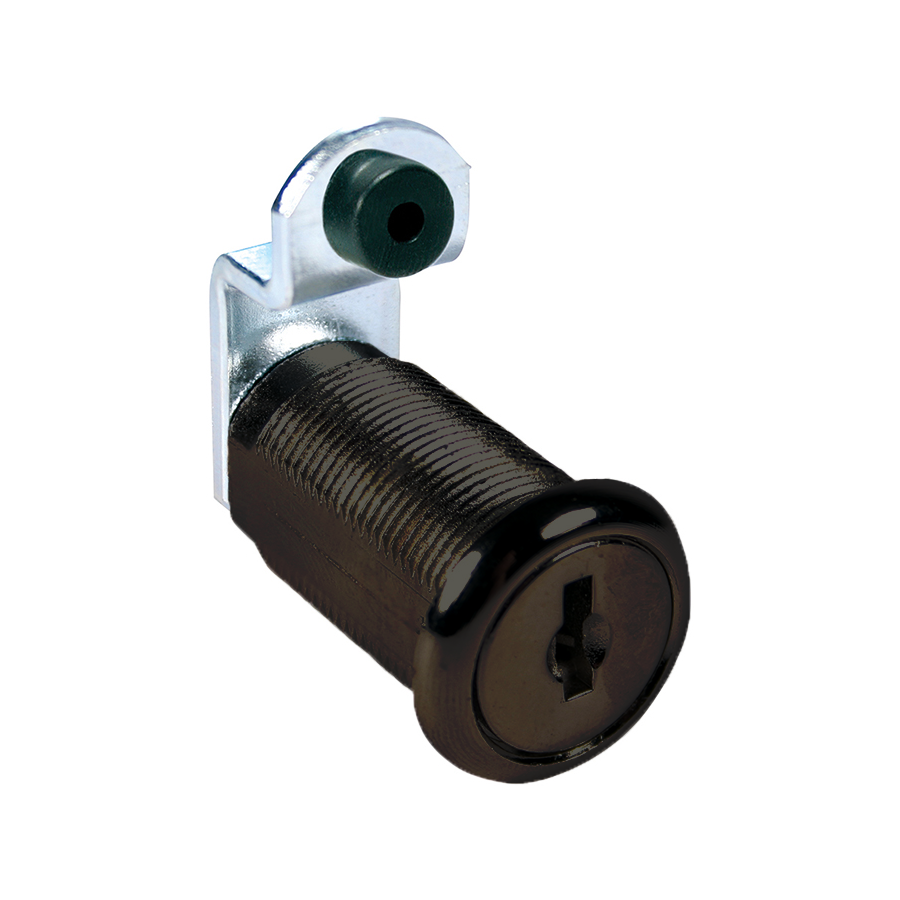

Compx C8055-KAC415A-4G Disc Cam Lock 1-7/16in

Compx Security Products C8055-KAC415A-4G Disc Cam Lock 1-7/16in offers exceptional versatility for securing drawers and doors with either lipped/overlay or flush construction. Designed for easy installation, this lock features a 90° cam turn mechanism, allowing for smooth operation. Additionally, the key can be removed in both locked and unlocked positions, enhancing convenience for users. This cam lock accommodates a maximum material thickness of 1-1/8 inches, making it suitable for a variety of applications. Keying is streamlined, as it can be integrated with all other disc tumbler locks using the D8785 key blank, while master keying is possible with the D8783 key blank, allowing for comprehensive security solutions. The C8055-KAC415A-4G comes complete with two keys, a trim washer, spur washer (for wood), mounting nut, and two cams, ensuring you have everything needed for quick setup. For metal applications requiring a flat washer, the C2015-2C can be ordered separately. Finished in an elegant antique brass, this cam lock not only provides robust security but also adds a touch of sophistication to your furniture or cabinetry. Enhance your security with the reliable Compx Security Products C8055-KAC415A-4G Disc Cam Lock-perfect for both professionals and discerning homeowners.

Disc Cam Lock 1-7/16in

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Key Codes Used:

• 3 Codes - C346A, C413A and C415A.
• 6 Codes - C346A, C390A, C413A, C415A, C420A and C642A.
• 10 Codes - C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A.

Features

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Resources

• Cut Sheet
