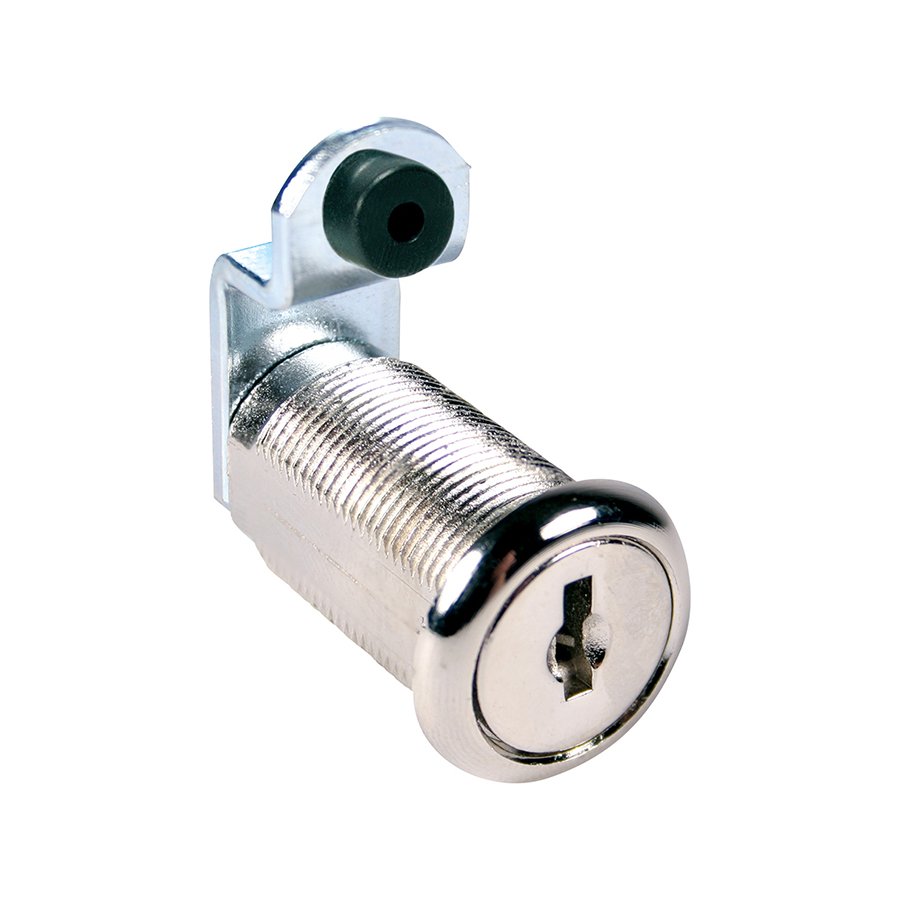

Compx C8055-KD-14A Disc Cam Lock 1-7/16in

Compx Security Products C8055-KD-14A Disc Cam Lock offers a reliable and versatile locking solution for a variety of applications. Designed for drawers and right-hand or left-hand doors, this lock is compatible with both lipped/overlay and flush construction. Its straight cam ensures smooth operation, while the maximum material thickness of 1-1/8 inches provides ample security without compromising design. With a 90° cam turn, the C8055-KD-14A allows keys to be removed in both the locked and unlocked positions, offering convenience for users. The lock can be keyed together with other disc tumbler locks using the D8785 key blank, and it supports master keying to E41A with the D8783 key blank. This flexibility makes it an excellent choice for both residential and commercial settings. Each lock comes packaged with two keys, a trim washer, a spur washer for wood, a mounting nut, and two cams, ensuring everything needed for installation is included. For metal applications, a flat washer can be ordered separately. Finished in bright nickel, the C8055-KD-14A not only enhances security but also adds a touch of elegance to any project. This cam lock is an essential choice for professionals seeking quality and reliability in security hardware.

Disc Cam Lock 1-7/16in

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Key Codes Used:

• 3 Codes - C346A, C413A and C415A.
• 6 Codes - C346A, C390A, C413A, C415A, C420A and C642A.
• 10 Codes - C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A.

Features

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Resources

• Cut Sheet
