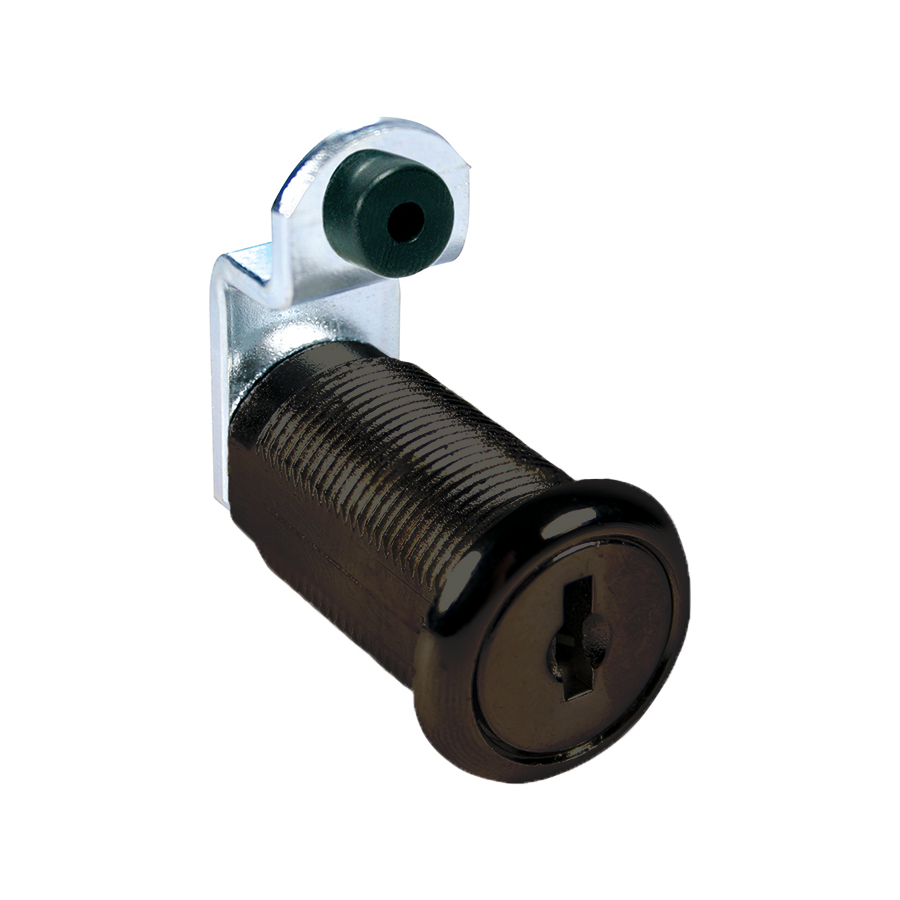

Compx C8055-KD-4G Disc Cam Lock 1-7/16in

Compx Security Products C8055-KD-4G Disc Cam Lock 1-7/16in is designed to provide secure access for drawers and both right-hand and left-hand doors with lipped or overlay construction. This versatile lock features a straightforward operation, allowing a 90° cam turn, with the added convenience of key removal in both locked and unlocked positions. Engineered for durability, the C8055-KD-4G accommodates a maximum material thickness of 1-1/8 inches, making it suitable for various applications. It can be easily keyed together with other disc tumbler locks using the D8785 key blank, and offers master keying options using the D8783 key blank for enhanced security management. The lock comes packaged with two keys, a trim washer, spur washer (for wood), mounting nut, and two cams, ensuring you have everything needed for installation. If a flat washer is required for metal applications, it can be ordered separately (C2015-2C). Finished in an antique brass color, this cam lock not only ensures robust security but also adds a touch of elegance. Ideal for building professionals and discerning homeowners alike, the Compx Security Products C8055-KD-4G is a reliable choice for enhancing the security of your belongings.

Disc Cam Lock 1-7/16in

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Key Codes Used:

• 3 Codes - C346A, C413A and C415A.
• 6 Codes - C346A, C390A, C413A, C415A, C420A and C642A.
• 10 Codes - C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A.

Features

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately
