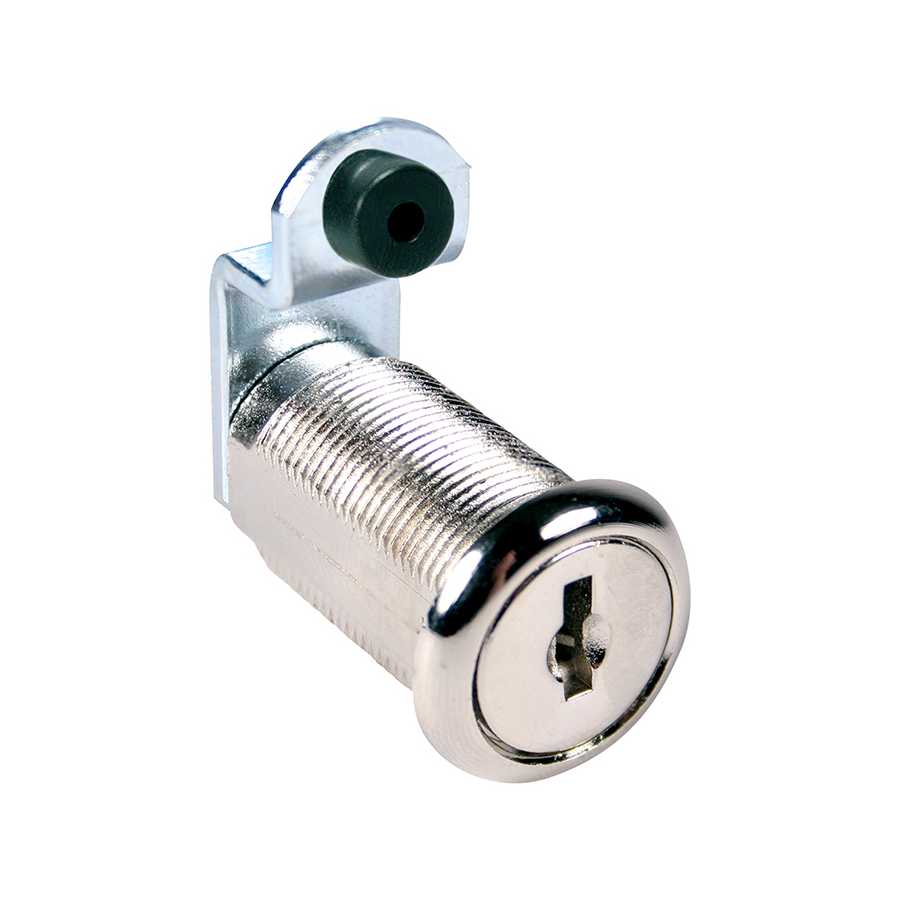

Compx C8055-MKKD-14A Disc Cam Lock 1-7/16in

Compx Security Products C8055-MKKD-14A Disc Cam Lock 1-7/16in offers a reliable locking solution for drawers and doors with either lipped/overlay or flush construction. Designed for easy installation, this cam lock features a straight cam for overlay applications and can accommodate a combined thickness of the front and frame that does not exceed the cylinder length. The C8055-MKKD-14A operates with a simple 90° cam turn, allowing for convenient locking and unlocking. One of its standout features is the ability to remove the key in both the locked and unlocked positions, providing added flexibility for users. For keying convenience, this lock is compatible with the D8785 key blank, allowing it to key together with other disc tumbler locks, while master keying options are available using the D8783 key blank. Each lock comes packaged with two keys, a trim washer, a spur washer (for wood), a mounting nut, and two cams. If a flat washer for metal is required, it can be ordered separately (C2015-2C). Finished in bright nickel, the C8055-MKKD-14A combines both aesthetics and functionality, making it an excellent choice for various security needs in residential and commercial settings.

Disc Cam Lock 1-7/16in

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Key Codes Used:

• 3 Codes - C346A, C413A and C415A.
• 6 Codes - C346A, C390A, C413A, C415A, C420A and C642A.
• 10 Codes - C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A.

Features

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately
