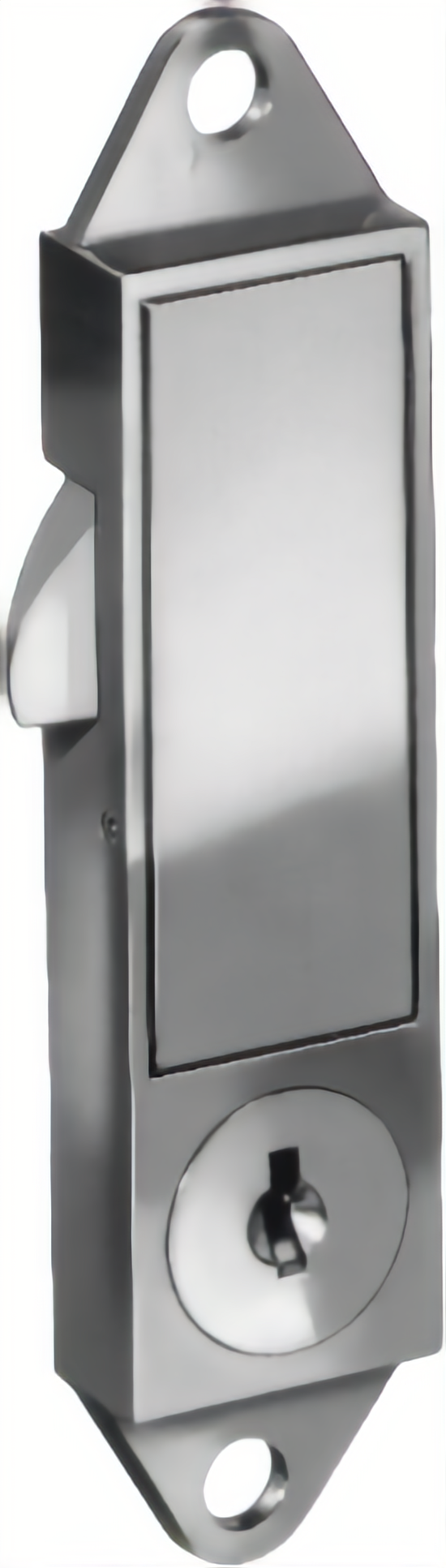

Compx C8070-KAB135A Panel Lock Flush RH Door

Compx Security Products C8070-KAB135A Panel Lock Flush RH Door offers a reliable locking solution designed specifically for right-handed metal doors of electrical circuit breaker cabinets. This disc tumbler flush panel lock is built for durability and ease of use, featuring a spring bolt mechanism that ensures secure closure. The C8070-KAB135A allows for key removal in both locked and unlocked positions, providing flexibility and convenience. The push plate not only operates the spring bolt but also functions as a spring latch when unlocked, making it user-friendly for frequent access. This lock is supplied keyed alike to B135A and comes with two keys, ensuring you have spares on hand for added security. With a bolt travel of 7/32" and a spring pivot bolt type, this lock is designed to fit seamlessly into your existing security setup. Although no mounting hardware is included, the lock is easily installed, making it a practical choice for professionals and knowledgeable homeowners alike. Key specifications include reference number M4-0226-001 and compatibility with the M5-0687-111 key blank, ensuring versatility in keying options. Trust Compx Security Products to provide the robust security solution your electrical cabinets need.

Panel Lock Flush RH Door

M4-0226-001 Flush Panel Lock- disc tumbler. Disc tumbler flush panel lock. Uses M5-0687-111 key blank. Can be keyed differently or alike.

Features:

• For right handed metal doors of electrical circuit breaker cabinets.
• Key removable in both locked and unlocked positions.
• Push plate operates spring bolt.
• Unlocked, push plate acts as spring latch.
• Supplied keyed alike only to B135A.
• Supplied with two keys; no mounting hardware.

Specifications:

• C8070-2C:
• Type of Mounting: R.H. Door.
• Bolt Type: Spring Pivot.
• Bolt Travel: 7/32".
• Reference Number: M4-0226-001.
• Key Blank: D8786.

Resources

• Cut Sheet
