Compx C8080-KAC415A-14A Disc Cam Lock 7/8in

Compx Security Products C8080-KAC415A-14A Disc Cam Lock 7/8in provides a robust security solution for various applications, including drawers and doors with lipped or overlay construction. This cam lock is designed for surface mounting, requiring a 3/4" diameter hole for the cylinder, making it easy to install in a variety of settings. Featuring a versatile operation, the C8080 allows for either a 90° or 180° cam turn, ensuring flexibility depending on your specific needs. The key can be removed in both locked and unlocked positions, adding convenience for everyday use. Additionally, this lock keys together with all other disc tumbler locks using the D8785 key blank, facilitating seamless integration into existing security systems. Included in the packaging are two keys, two mounting screws, two formed cams, and two stop washers, with the lock pre-assembled for a 90° cam turn. The bright nickel finish not only enhances durability but also ensures a sleek appearance, suitable for both professional and residential environments. With a maximum material thickness of 7/8" and a cylinder length of 7/8", the Compx C8080-KAC415A-14A Disc Cam Lock offers reliable security without compromising on style or functionality.

Disc Cam Lock 7/8in

C8060, C8073, C8075:

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: Choice of either 90° or 180° cam turn. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut, two cams and two stop washers. If flat washer (for metal) is needed, order C2015-2C separately.

C8080:

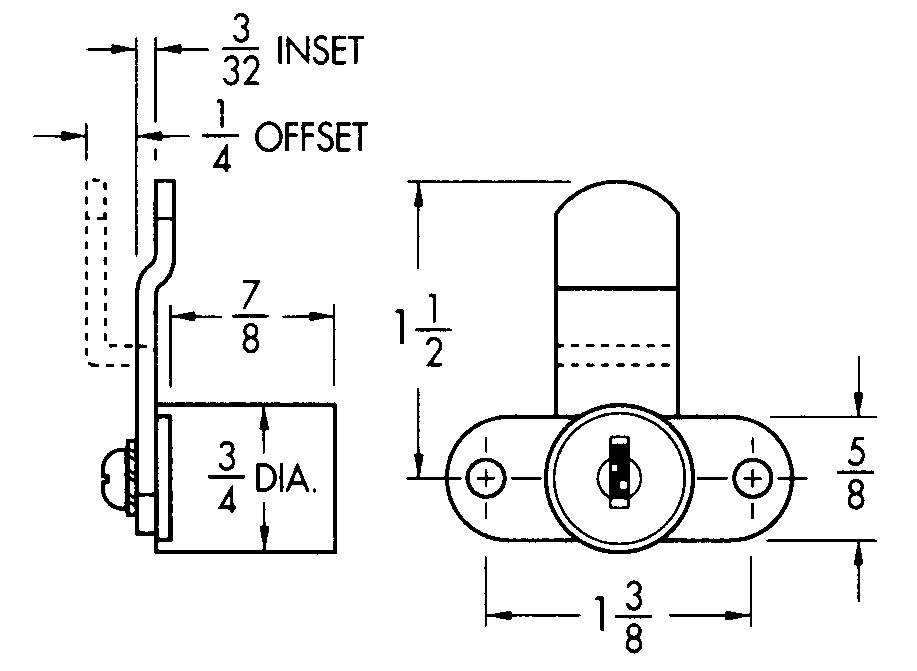

• Application: For doors and drawers. Surface mounted. Requires 3/4" diameter hole for cylinder.
• Operation: Choice of either 90° or 180° cam turn. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, two mounting screws, two formed cams and two stop washers. Assembled for 90° cam turn.

Key Codes Used:

• 6 Codes - C346A, C390A, C413A, C415A, C420A and C642A.
• 10 Codes - C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A.
• Not available with FlexaCam™

Features

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: Choice of either 90° or 180° cam turn. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut, two cams and two stop washers. If flat washer (for metal) is needed, order C2015-2C separately.

Resources

• Cut Sheet
