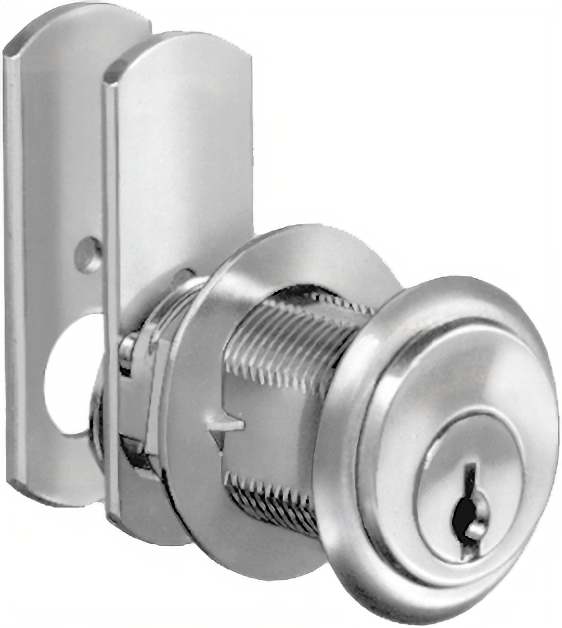

Compx C8103-KA915-4 Pin Cam Lock 1-3/16in

Compx Security Products C8103-KA915-4 Pin Cam Lock 1-3/16in offers a versatile locking solution suitable for both lipped and overlay construction applications. This cam lock features a 1-3/16" cylinder length and is designed for use on drawer and right-hand or left-hand doors. The 360° key turn mechanism allows for a smooth 90° cam turn in either direction, providing flexibility in determining the locked position based on your specific needs. Included with the C8103 lock are two keys, a trim washer, a spur washer for wood, a mounting nut, and two cams, allowing for easy installation and customized use. If your application requires a flat washer for metal surfaces, it can be ordered separately (C2015-2C). The keying system is designed to work with the D4291 key blank, ensuring compatibility with most other pin tumbler locks. With a maximum material thickness of 7/8", the C8103 is an ideal choice for various applications where security and accessibility are paramount. The key can be removed in both locked and unlocked positions, adding to its practicality. Elevate the security of your drawers and doors with the reliable and robust Compx Security Products C8103-KA915-4 Cam Lock.

Pin Cam Lock 1-3/16in

C8101, C8102, C8103, C8106, C8108, C8109:

• Through the use of a shifter, the 360° key turn turns the cam 90° in either direction. Actual application determines which cam position is the locked position. Each lock is furnished with an alternate cam for opposite cam turn.
• Note: The C8102, is a Multi-Functional Pin Tumbler Cam Lock with a 1-1/16" Cylinder Length. The lock is packaged with four (4) cams, two straight and two double formed. This allows the lock to be used for multiple applications for either drawer or right hand/left hand doors with lipped or overlay construction.
• Application: For drawer, R.H. or L.H. doors. C8103 and C8109 are for lipped or overlay construction. For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail below. The other locks are for flush application.
• Operation: 90° cam turn, key removable in both locked and unlocked positions.
• Keying: Will key together in most cases with all other pin tumbler locks using D4291 key blank. See table for available keying. Master keying to GM1.
• Packaging: Supplied with two keys, trim washer, spur washer for wood, mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately.

Key Codes Used:

• 2 Codes - 107 and 915.
• 4 Codes - 101, 103, 107 and 915.

Features

• Operation: 90° cam turn, key removable in both locked and unlocked positions.
• Keying: Will key together in most cases with all other pin tumbler locks using D4291 key blank. See table for available keying. Master keying to GM1.
• Note: The C8102, is a Multi-Functional Pin Tumbler Cam Lock with a 1-1/16" Cylinder Length. The lock is packaged with four (4) cams, two straight and two double formed. This allows the lock to be used for multiple applications for either drawer or right hand/left hand doors with lipped or overlay construction.
• Packaging: Supplied with two keys, trim washer, spur washer for wood, mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately.
• Through the use of a shifter, the 360° key turn turns the cam 90° in either direction. Actual application determines which cam position is the locked position. Each lock is furnished with an alternate cam for opposite cam turn.
• Application: For drawer, R.H. or L.H. doors. C8103 and C8109 are for lipped or overlay construction. For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail below. The other locks are for flush application.

Resources

• Cut Sheet
