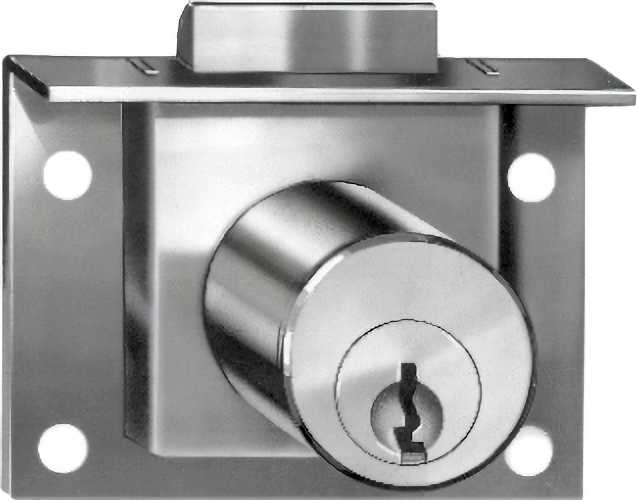

Compx C8131-KA107-26D Pin Drawer Lock Spring 7/8in

Compx Security Products C8131-KA107-26D Pin Drawer Lock Spring 7/8in offers a reliable solution for securing drawers and doors with ease. Designed for both right-hand and left-hand applications, this surface-mounted lock requires a 57/64" diameter hole for installation, making it versatile for various setups. The C8131 features a key removable in the locked position, ensuring that your valuables are safeguarded while still allowing for easy access when needed. The pin tumbler mechanism is compatible with the D4291 key blank, enabling seamless keying with other locks in the series. This allows for efficient master keying options, further enhancing your security management. Each package includes two keys, a strike, and mounting screws for quick and hassle-free installation. For those who require a trim ring, it can be ordered separately (C2017). The lock's satin chrome finish (US26D) not only enhances its durability but also adds an elegant touch to any cabinetry. Ideal for lockers, cabinets, and drawers, the Compx C8131-KA107-26D combines functionality with a sleek design, making it an excellent choice for professionals and homeowners alike who prioritize security without sacrificing aesthetics.

Pin Drawer Lock Spring 7/8in

The PLUS feature allows you to remove the cylinder from our pin tumbler box locks while the lock remains in place. No mounting screws need to be removed. Simply use a 5/64" allen wrench from the back to remove the cylinder and plug for re-keying.

C8173, C8174, C8175, C8177, C8178, C8179, C8180:

• Application: For drawers, R.H. or L.H. doors. Surface mounted. Requires 57/64" diameter hole for cylinder.
• Operation: Key removable in both locked and unlocked positions.
• Keying: In most cases will key together with all other pin tumbler locks using D4291 key blank. See table for available keying. Master keying to GM1.
• Packaging: Supplied with two keys, strike and mounting screws. If trim ring is required, order C2017 separately.

C8131, C8133, C8135, C8139:

• Application: For drawers. Half mortise type requires mortise for housing and 57/64" diameter hole for cylinder. C8139 is surface mounted.
• Operation: Key removable in both locked and unlocked positions except C8131 and C8139.
• Keying: In most cases will key together with all other pin tumbler locks using D4291 key blank. See table for available keying. Master keying to GM1.
• Supplied with two keys, strike and mounting screws. If trim ring is required, order C2017 separately.

Key Codes Used:

• 2 Codes - 107 and 915.
• 4 Codes - 101, 17 and 915.
• Key removable in locked position only

Features

• Keying: In most cases will key together with all other pin tumbler locks using D4291 key blank. See table for available keying. Master keying to GM1.
• Application: For drawers, R.H. or L.H. doors. Surface mounted. Requires 57/64" diameter hole for cylinder.
• Packaging: Supplied with two keys, strike and mounting screws. If trim ring is required, order C2017 separately.
• Operation: Key removable in both locked and unlocked positions.

Resources

• Cut Sheet
