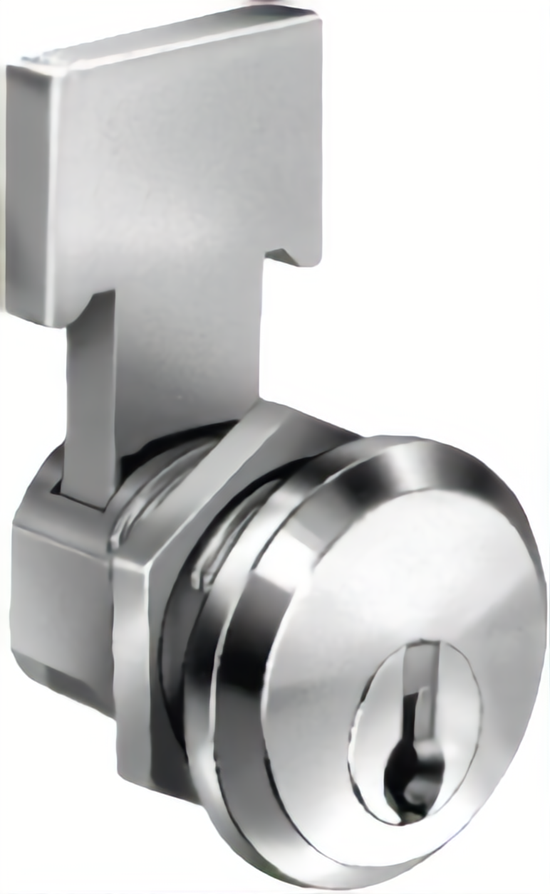

Compx C8137-KA024-26D Metal Drawer Lock Pin (T) Bolt

Compx Security Products C8137-KA024-26D Metal Drawer Lock Pin (T) Bolt offers a robust solution for securing center drawers in metal desks. Constructed from durable stainless steel, this lock is designed to withstand higher levels of abuse compared to traditional die-cast options, making it an excellent choice for demanding environments. This lock features a key-removable operation in both locked and unlocked positions, providing convenience and flexibility. It can be easily keyed together with most other pin tumbler locks using the D4291 key blank, streamlining your key management. The package includes two keys, a mounting nut, and a stainless steel insertable bolt for straightforward installation. With a cylinder length of 19/32" and a bolt travel of 7/16", the C8137-KA024-26D is designed for metal drawers with a maximum thickness of 1/4". Its brushed chrome finish (US26D) adds a sleek appearance, while the compatibility with various KA codes (101, 103, 107, & 915) enhances its versatility. For those seeking additional options, stainless steel and die-cast replacement insertable bolts are available. Trust the C8137-KA024-26D to deliver reliable security for your essential drawer storage needs.

Metal Drawer Lock Pin (T) Bolt

The stainless steel bolt withstands a higher degree of abuse and is a direct replacement for existing C8137 with die-cast bolts.

Features:

• For center drawers of metal desks.
• Fits special piercing of drawer front and selvedge.

Specifications:

• Operation: Key removable in both locked and unlocked positions.
• Keying: Will key together with most other pin tumbler locks using D4291 key blank.
• Packaging: Supplied with two keys, mounting nut and stainless steel insertable bolt.
• Installation: Metal Drawer 1/4" Max Thickness.
• Bolt Type: Stainless Steel Insertable Dead Bolt.
• Cylinder Length: 19/32".
• Bolt Travel: 7/16".
• KA Codes: 101, 103, 107, & 915.
• Key Changes:
• KD: 850
• MKKD: 650

Options:

• C7137: Stainless steel replacement insertable bolts.
• M337272116X150J: Die-cast replacement insertable bolts.
• D4291: Key Blank.
