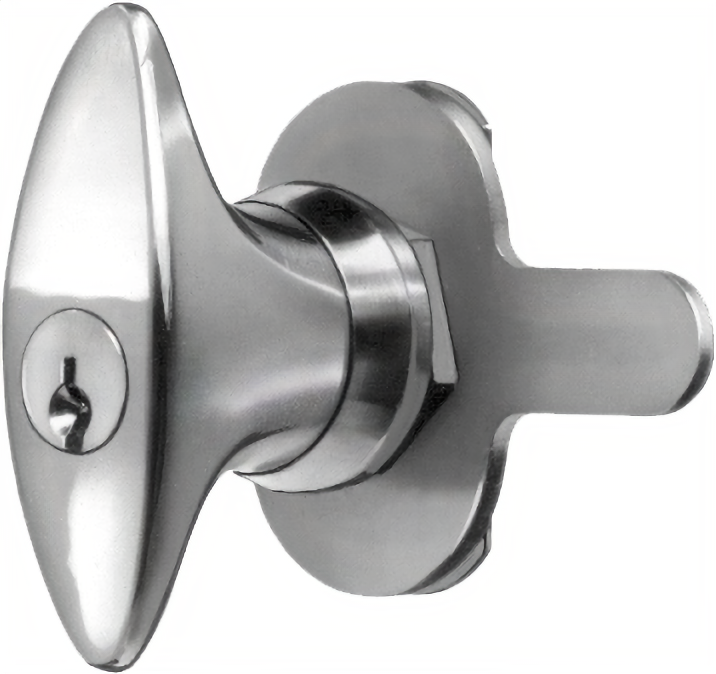

Compx C8155-KD-26D Pin Knob Lock T Handle Two Way

Compx Security Products C8155-KD-26D Pin Knob Lock T Handle Two Way offers a reliable locking solution tailored for metal cabinet doors. This versatile lock features a reversible design suitable for both right-hand and left-hand installations, ensuring adaptability to various applications. The latch plate accommodates either two-point or three-point latching, providing enhanced security options. With a straightforward 90° turn operation, the C8155-KD-26D allows for easy access while maintaining robust security. The key operation permits the key to be removable only in the locked position, providing an additional layer of safety. This lock is compatible with other pin tumbler locks using the D4291 key blank, allowing for seamless integration into existing keying systems, including master keying to GM1. Each lock comes packaged with two keys, a mounting nut, and a screw for the latch plate, streamlining installation. When installing, ensure the tongue points away from the jamb for optimal functionality. Finished in a sleek satin chrome (US26D), this pin knob lock not only enhances security but also complements the aesthetics of your cabinetry. Whether you're a building professional or a knowledgeable homeowner, the Compx Security Products C8155-KD-26D offers a dependable and stylish choice for your locking needs.

Pin Knob Lock T Handle Two Way

C8154, C8155:

• Application: For metal cabinets doors. Reversible for R.H. or L.H. application. Latch plate is used for either in 2** or 3 point latching.
• Operation: 90° turn to open. Choice of key operation, see table.
• Keying: Will key together with most other pin tumbler locks using D4291 key blank. See table for available keying. Master keying to GM1.
• Packaging: Supplied with two keys, mounting nut and screw for latch plate.
• Install with tongue pointing away from jamb.

Key Codes Used:

• 1 Code - 915.
• 3 Codes - 103, 107 and 915.

Features

• Operation: 90° turn to open. Choice of key operation, see table.
• Packaging: Supplied with two keys, mounting nut and screw for latch plate.
• Install with tongue pointing away from jamb.
• Keying: Will key together with most other pin tumbler locks using D4291 key blank. See table for available keying. Master keying to GM1.
• Application: For metal cabinets doors. Reversible for R.H. or L.H. application. Latch plate is used for either in 2** or 3 point latching.

Resources

• Cut Sheet
