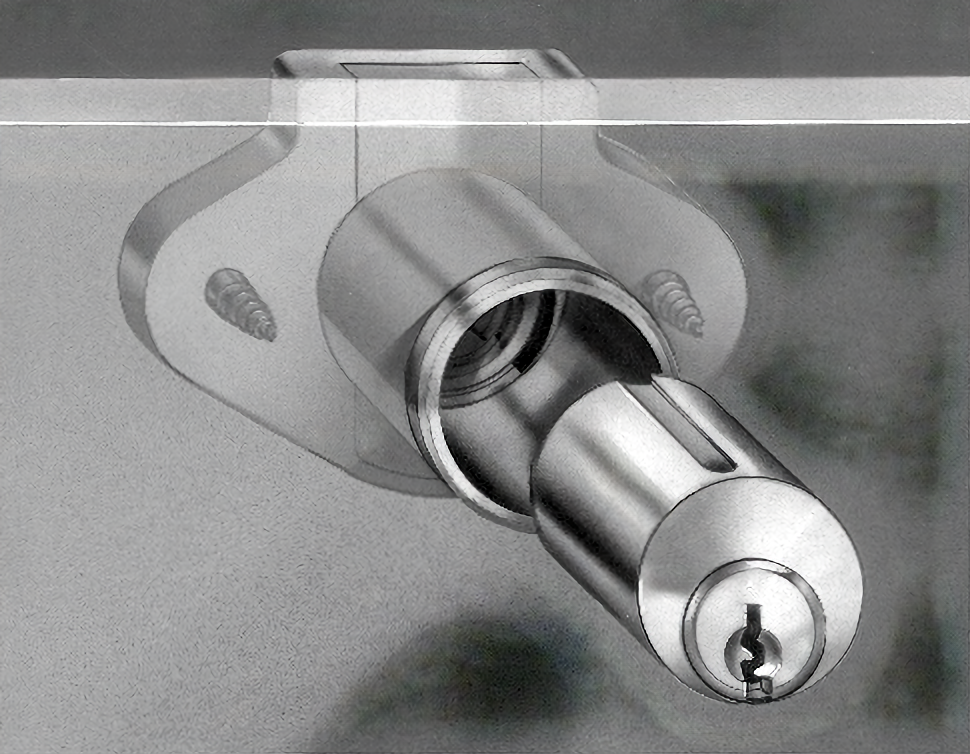

Compx C8163-KA915-26D Pin Drawer Lock Bolt 15/16in

Compx Security Products C8163-KA915-26D Pin Drawer Lock Bolt 15/16in offers a reliable solution for securing drawers in various applications. Designed for surface mounting, this lock requires a 57/64" diameter hole for the cylinder, ensuring a snug fit that enhances security. The C8163 model features an extended bolt with a 3" reach, which can be customized to the desired length, allowing for versatile installations. This lock boasts a user-friendly operation, permitting the key to be removed in both locked and unlocked positions, providing convenience and ease of use. Keying compatibility is notable, as it can key together with most pin tumbler locks using the D4291 key blank and supports master keying to GM1, making it ideal for larger facilities or shared spaces. Each lock is supplied with two keys and mounting screws for straightforward installation. Additionally, if a trim ring is necessary, it can be ordered separately as C2017. The satin chrome finish (US26D) not only offers a sleek, modern look but also provides durability against wear and tear, making this lock a practical choice for residential or commercial settings. Packaged in quantities of 20, the C8163-KA915-26D ensures you have the security solutions you need at your fingertips.

Pin Drawer Lock Bolt 15/16in

C8163 locks feature easy removal of cylinder from lock housing while lock remains in place. Bolt has access hole for cylinder retention screw at back of lock. U.S. Patent No. 4.899.563. Extended bolt for C8163 drawer lock provides 3" extension, can be cut to required length. Packed 20 pcs. per bag

• Application: For drawers. Surface mounted. Requires 57/64" diameter hole for cylinder.
• Operation: Key removable in both locked and unlocked positions.
• Keying: Will key together with most all other pin tumbler locks using D4291 key blank. See table for available keying. Master keying to GM1.
• Packaging: Supplied with two keys and mounting screws. If trim ring is required, order C2017 separately.

Features

• Keying: Will key together with most all other pin tumbler locks using D4291 key blank. See table for available keying. Master keying to GM1.
• Packaging: Supplied with two keys and mounting screws. If trim ring is required, order C2017 separately.
• Application: For drawers. Surface mounted. Requires 57/64" diameter hole for cylinder.
• Operation: Key removable in both locked and unlocked positions.

Resources

• Cut Sheet
