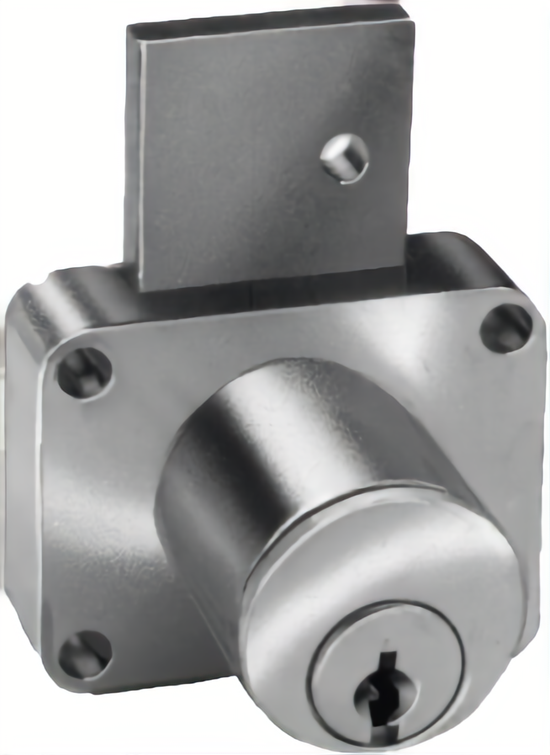

Compx C8178-KD-4 Pin Drawer Lock Bolt 7/8in

Compx Security Products C8178-KD-4 Pin Drawer Lock Bolt 7/8in offers a reliable locking solution for drawers and doors, ensuring both security and convenience. Designed for surface mounting, this lock requires a 57/64" diameter hole for installation, making it easy to integrate into various applications. One of the standout features of the C8178-KD-4 is its unique PLUS functionality, which allows you to remove the cylinder for re-keying without having to detach the lock from its mount. Utilizing a 5/64" Allen wrench, you can quickly access the cylinder from the back, streamlining maintenance and key changes. This lock operates with a key removable in both locked and unlocked positions, enhancing user flexibility. It is compatible with the D4291 key blank and can be master keyed to GM1, making it an excellent choice for creating a cohesive locking system across multiple installations. The package includes two keys, a strike, and mounting screws, providing everything needed for a straightforward setup. Finished in a sleek satin brass, the C8178-KD-4 not only delivers on functionality but also adds a touch of elegance to your security solutions. Choose the Compx C8178-KD-4 for a durable, efficient locking mechanism tailored to your security needs.

Pin Drawer Lock Bolt 7/8in

The PLUS feature allows you to remove the cylinder from our pin tumbler box locks while the lock remains in place. No mounting screws need to be removed. Simply use a 5/64" allen wrench from the back to remove the cylinder and plug for re-keying.

C8173, C8174, C8175, C8177, C8178, C8179, C8180:

• Application: For drawers, R.H. or L.H. doors. Surface mounted. Requires 57/64" diameter hole for cylinder.
• Operation: Key removable in both locked and unlocked positions.
• Keying: In most cases will key together with all other pin tumbler locks using D4291 key blank. See table for available keying. Master keying to GM1.
• Packaging: Supplied with two keys, strike and mounting screws. If trim ring is required, order C2017 separately.

C8131, C8133, C8135, C8139:

• Application: For drawers. Half mortise type requires mortise for housing and 57/64" diameter hole for cylinder. C8139 is surface mounted.
• Operation: Key removable in both locked and unlocked positions except C8131 and C8139.
• Keying: In most cases will key together with all other pin tumbler locks using D4291 key blank. See table for available keying. Master keying to GM1.
• Supplied with two keys, strike and mounting screws. If trim ring is required, order C2017 separately.

Key Codes Used:

• 2 Codes - 107 and 915.
• 4 Codes - 101, 17 and 915.
• Key removable in locked position only

Features

• Keying: In most cases will key together with all other pin tumbler locks using D4291 key blank. See table for available keying. Master keying to GM1.
• Application: For drawers, R.H. or L.H. doors. Surface mounted. Requires 57/64" diameter hole for cylinder.
• Packaging: Supplied with two keys, strike and mounting screws. If trim ring is required, order C2017 separately.
• Operation: Key removable in both locked and unlocked positions.

Resources

• Cut Sheet
