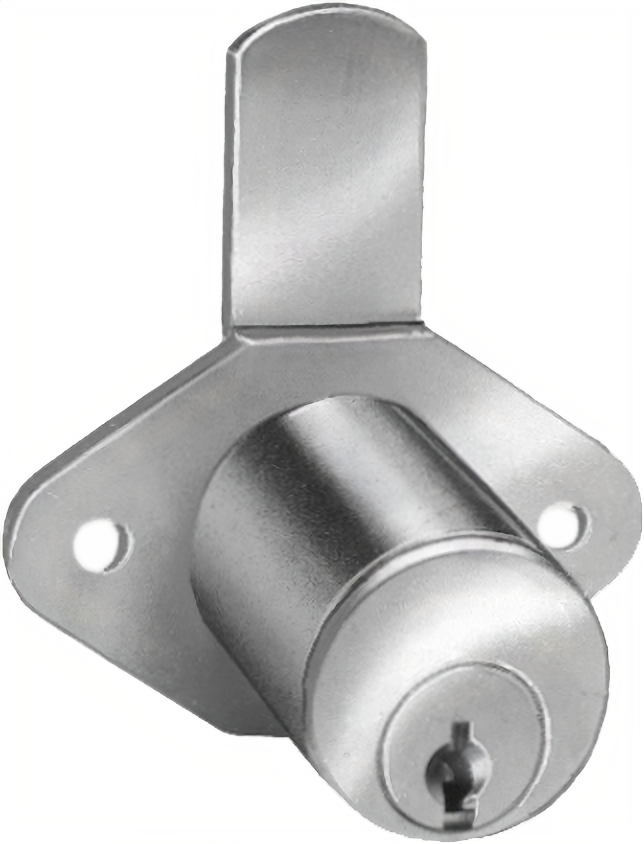

Compx C8188-KA915-26D Pin Door Lock Bolt 1-3/8in

Compx Security Products C8188-KA915-26D Pin Door Lock Bolt 1-3/8in is an ideal solution for enhancing the security of drawers and cabinets. Designed for flush mounting, this durable lock features a cylinder length of 1-3/8 inches, accommodating materials up to the same thickness, making it versatile for various applications. The lock operates with a smooth 90° cam turn, allowing for key removal in both locked and unlocked positions, providing users with convenience and peace of mind. This lock is supplied with two keys, an extra backplate, two cams, and two mounting screws, ensuring a straightforward installation process. Re-keying is easy, requiring only the removal of the cam retaining screw and cam, which can be done with a 5/64" allen wrench. The C8188 model works seamlessly with the C8183 model, allowing for compatibility across different types of doors and drawers. With a satin chrome finish (US26D), this lock not only enhances security but also adds a modern touch to your furniture. Additionally, it can be keyed together with other pin tumbler locks using the D4291 key blank, offering flexibility in key management. Upgrade your storage solutions with the reliable C8188-KA915-26D Pin Door Lock.

Pin Door Lock Bolt 1-3/8in

The locks are fastened in place with two screws for easy installation. Re-keying or servicing is accomplished by removing the cam retaining screw and cam. Use a 5/64" allen wrench to remove the plug cylinder assembly. The mounting plate remains installed on the cabinet. Re-key as required and reinstall cylinder plug assembly on mounting plate.

Features:

• For drawer, R.H. or L.H. doors.
• C8183 assembled for door function.
• C8188 assembled for drawer function.
• 57/64" dia. mounting hole.
• 90° cam turn, key removable in both locked and unlocked positions.
• Will key together with all other pin tumbler locks using D4291 key blank.
• Master keying to GM1.
• Supplied with two keys, extra backplate, two cams and two mounting screws.
• If trim ring is required, order C2017 separately.

Specifications:

• C8183-26D: Assembled as a door lock.
• Type of Mounting: Flush.
• Cylinder Length: 7/8".
• Maximum Material Thickness: 7/8".
• KA Codes: 101, 103, 107, & 916.
• KD: 850.
• MKKD: 650.
• Reference Number: M2-8183.
• Key Blank: D4291.
• C8188-26D: Assembled as a drawer lock.
• Type of Mounting: Flush.
• Cylinder Length: 1-3/8".
• Maximum Material Thickness: 1-3/8".
• KA Codes: 101, 103, 107, & 916.
• KD: 850.
• MKKD: 650.
• Reference Number: M2-8188.
• Key Blank: D4291.
