Compx C8735 Mail Box Lock 5 Cams Dust Cover

Compx Security Products C8735 Mail Box Lock 5 Cams Dust Cover offers a robust solution for securing your mailbox. Designed with a die-cast cam lock, this product features clip-mounted installation for easy setup and maintenance. The exterior pedestal-mounted design is perfect for neighborhood boxes, ensuring that your mail remains safe and accessible. This lock is equipped with a keyway dust shutter, providing added protection against dirt and debris, which can compromise the lock's functionality. The C8735 model includes a selection of five cams, allowing for compatibility with various door thicknesses. It operates with a 90° clockwise cam turn to open, and the key can only be removed when the lock is in the locked position, enhancing security. The lock meets USPS specification L-1172 and drawing 1003833, making it suitable for NDCBU and CBU applications. With the ability to be keyed differently (1,000 changes), this lock provides flexibility for varied security needs. Included with the lock are two keys, a mounting clip, and a cam locking nut, ensuring you have everything needed for a straightforward installation. Choose the Compx Security Products C8735 Mail Box Lock for reliable, efficient, and secure mailbox access.

Mail Box Lock 5 Cams Dust Cover

Die Cast Cam lock for mailboxes. Clip mounted cylinder length two clip mounting grooves Keyway dust shutter. This lock uses cams having 5/16" square hole nut mounted cam.

Features:

• Optional slot for thicker doors.
• Assemble with cam that matches present lock.
• Clip may be reversed for cam clearance.
• This lock meets USPS specification L-1172 and drawing 1003833 for NDCBU and CBU applications.
• Exterior pedestal-mounted neighborhood boxes.
• Has keyway dust shutter for lock protection.
• Clip mounted.
• 90° clockwise cam turn to open.
• Key removable in locked position only.
• Available keyed differently only (1,000 changes).
• Key blank part number D4291.

Specifications:

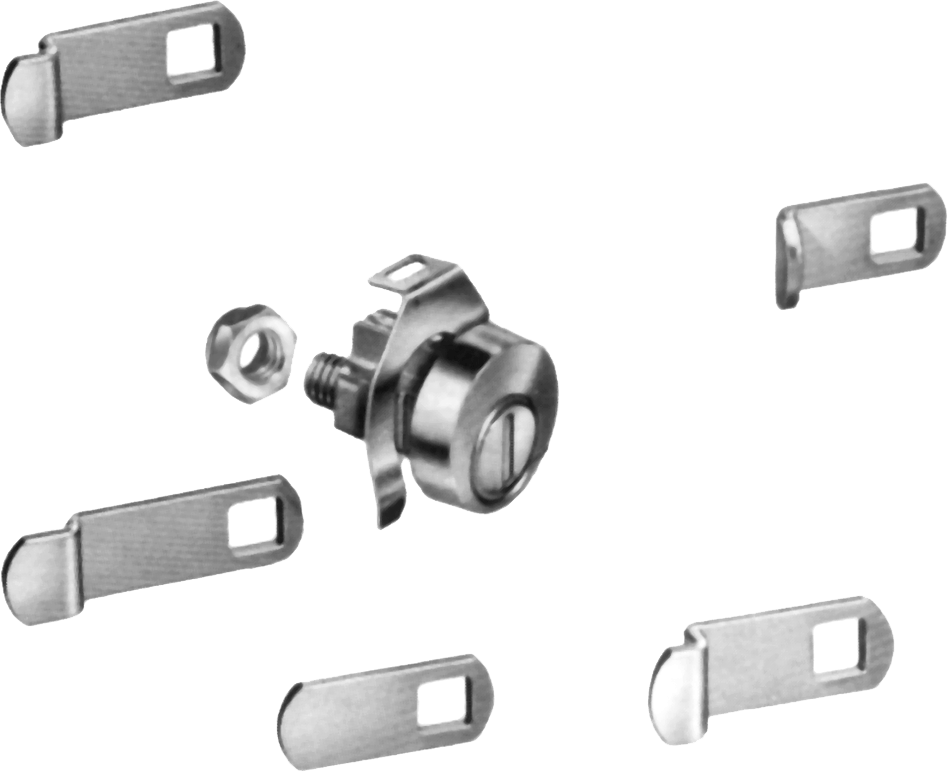

• Supplied with a selection of five cams, two keys, mounting clip, cam locking nut.
• C8732: same as C8735 without cams, with 90° cw.
• C8733: same as C8735 without cams, with 90° ccw.

Resources

• Cut Sheet
