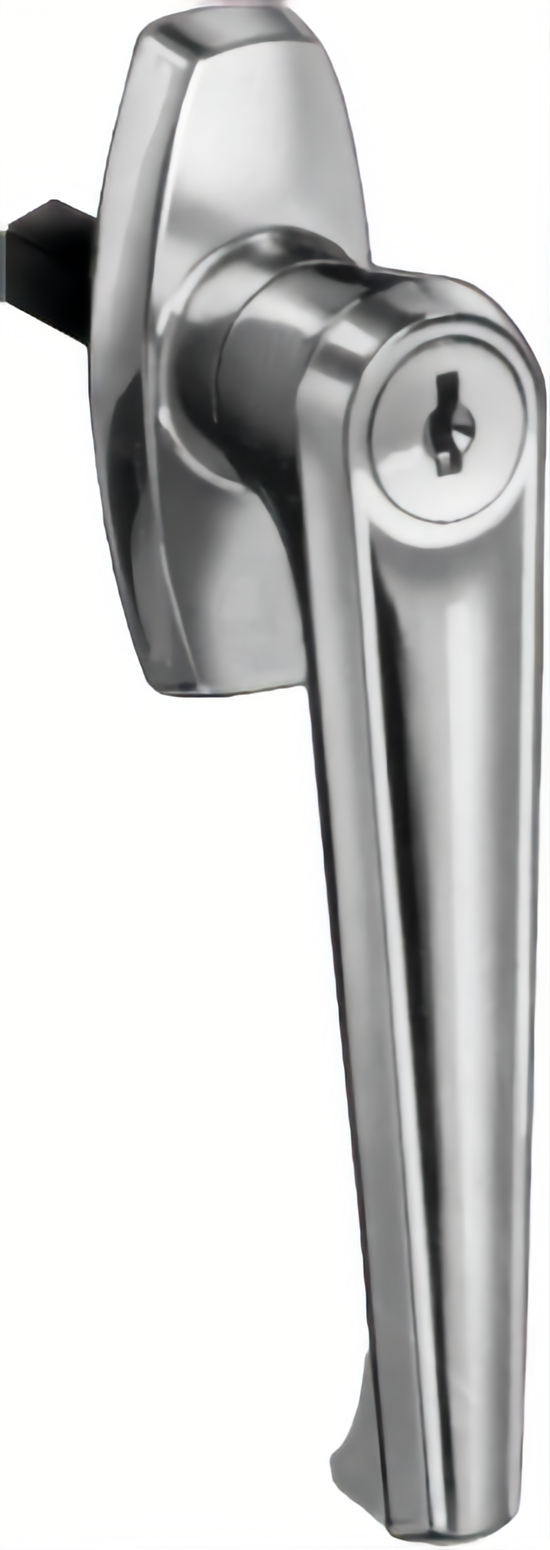

Compx C8747-KD-26D L Handle 1-1/2in Post 1in Long

Compx Security Products C8747-KD-26D L Handle is expertly designed for secure access to metal lockers and cabinets. This robust handle features a 1-1/2-inch post and a spindle length of 1 inch, ensuring compatibility with various door configurations. For right-hand doors, the escutcheon installs vertically, while for left-hand doors, it installs horizontally, providing flexibility to meet your installation needs. Key functionality is a standout feature of the C8747-KD-26D, allowing the key to be removed in both locked and unlocked positions. This handle will seamlessly key together with other disc tumbler locks using the D8785 key blank, enhancing your security system's coherence. The product is supplied with two keys and all necessary mounting hardware, making installation a breeze. Additionally, the handle can accommodate different spindle lengths and types, accepting both the C8756 latch plate and the C8757 tongue, except for specific models with unique requirements. Its satin chrome finish adds a polished look, while the durable construction ensures long-lasting performance. Ideal for building professionals and knowledgeable homeowners alike, the Compx C8747-KD-26D L Handle combines practicality with security in a stylish package.

L Handle 1-1/2in Post 1in Long

C8747, C8749, C8751, C8754, C8755, C8758, C8759:

• Application: For doors on metal lockers and cabinets. For R.H. doors, install with escutcheon vertical. For L.H. doors, install with escutcheon horizontal. See above drawings. Choice of spindle lengths and mounting. Spindles accept both C8756 latch plate and C8757 tongue except C8747 which has 8-32 tapped end hole and C8749 which will accept only the C8757 tongue. Spindles can be cut to fit special requirements.
• Key removable in both locked and unlocked positions.
• Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying.
• Supplied with two keys (except C8755) and mounting hardware.

Key Codes Used:

• 1 Code – C415A.
• 3 Codes – C413A, C415A and C420A.
• 5/16" sq. spindle w/ 8-32 tapped end hole.

Latch Plate & Tongue For Above Handle Locks:

Features

• Key removable in both locked and unlocked positions.
• Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying.
• Supplied with two keys (except C8755) and mounting hardware.
• Application: For doors on metal lockers and cabinets. For R.H. doors, install with escutcheon vertical. For L.H. doors, install with escutcheon horizontal. See above drawings. Choice of spindle lengths and mounting. Spindles accept both C8756 latch plate and C8757 tongue except C8747 which has 8-32 tapped end hole and C8749 which will accept only the C8757 tongue. Spindles can be cut to fit special requirements.

Resources

• Cut Sheet
