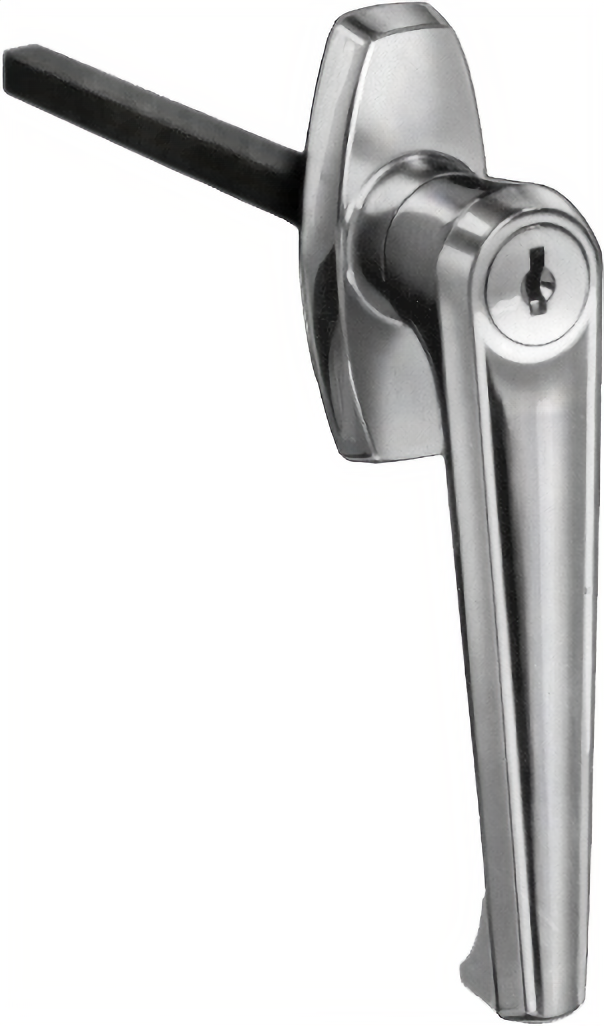

Compx C8749-KAC415A-26D L Handle 1-1/2in Post 4in Long

Compx Security Products C8749-KAC415A-26D L Handle offers robust security for metal lockers and cabinets, ensuring reliable access control in various settings. Designed for easy installation, this handle features a 1-1/2-inch post and a spindle length of 4 inches, making it versatile for both right-hand and left-hand doors with specific escutcheon positioning. One of the standout features of the C8749 model is its key removable capability in both locked and unlocked positions, offering flexibility for users. It also keys together seamlessly with other disc tumbler locks using the D8785 key blank, enhancing convenience across multiple locks. The handle is supplied with two keys and necessary mounting hardware, simplifying the setup process. Constructed with a sleek satin chrome finish (US26D), the C8749-KAC415A not only prioritizes security but also complements modern aesthetics. Its durable design is perfect for high-traffic areas, ensuring longevity and reliability. Additionally, spindles can be cut to meet special requirements, making this product adaptable to your specific locking needs. For those seeking a secure and practical locking solution, the Compx C8749-KAC415A-26D L Handle is an excellent choice for enhancing the security of your storage spaces.

L Handle 1-1/2in Post 4in Long

C8747, C8749, C8751, C8754, C8755, C8758, C8759:

• Application: For doors on metal lockers and cabinets. For R.H. doors, install with escutcheon vertical. For L.H. doors, install with escutcheon horizontal. See above drawings. Choice of spindle lengths and mounting. Spindles accept both C8756 latch plate and C8757 tongue except C8747 which has 8-32 tapped end hole and C8749 which will accept only the C8757 tongue. Spindles can be cut to fit special requirements.
• Key removable in both locked and unlocked positions.
• Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying.
• Supplied with two keys (except C8755) and mounting hardware.

Key Codes Used:

• 1 Code – C415A.
• 3 Codes – C413A, C415A and C420A.
• 5/16" sq. spindle w/ 8-32 tapped end hole.

Latch Plate & Tongue For Above Handle Locks:

Features

• Key removable in both locked and unlocked positions.
• Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying.
• Supplied with two keys (except C8755) and mounting hardware.
• Application: For doors on metal lockers and cabinets. For R.H. doors, install with escutcheon vertical. For L.H. doors, install with escutcheon horizontal. See above drawings. Choice of spindle lengths and mounting. Spindles accept both C8756 latch plate and C8757 tongue except C8747 which has 8-32 tapped end hole and C8749 which will accept only the C8757 tongue. Spindles can be cut to fit special requirements.

Resources

• Cut Sheet
