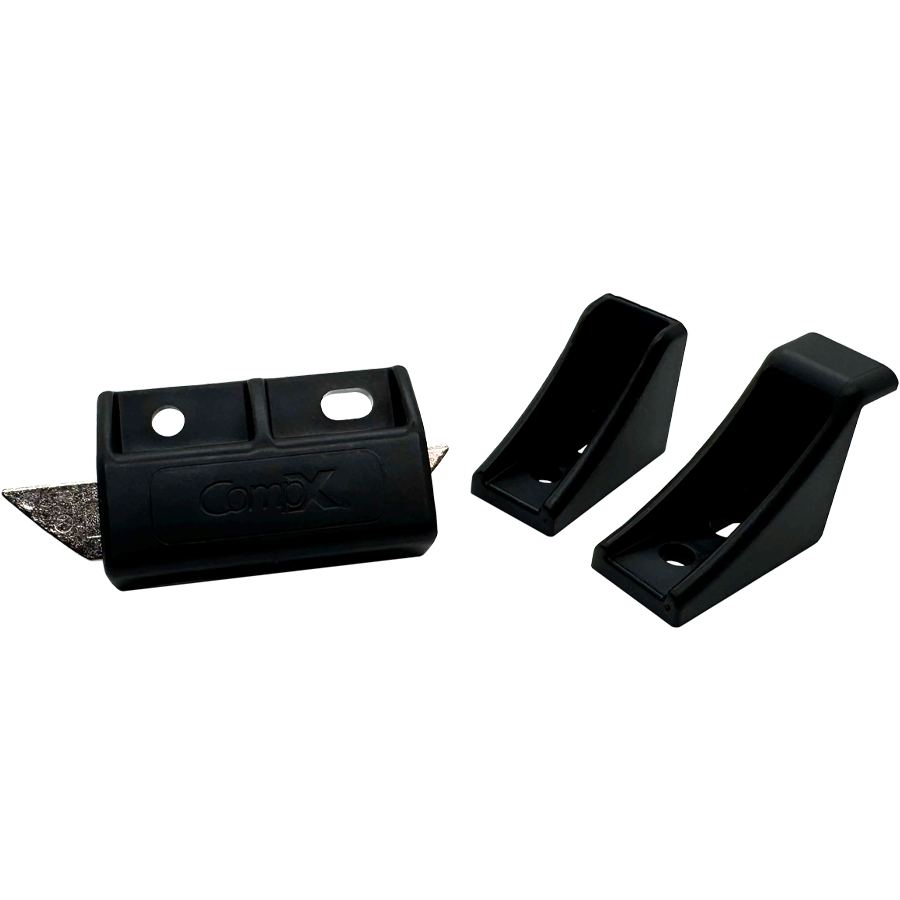

Compx D200DL-BLK Double Door Latch RH Black

Compx Security Products D200DL-BLK Double Door Latch RH Black provides a seamless locking solution for double door installations. Designed for right-hand door configurations, this latch eliminates the need for elbow catches or bulky hardware, allowing for unobtrusive installation at the top of the cabinet. The system operates with an activator mounted on the locking door, which pushes the latch bolt to engage a catch on the non-locking door. This spring-loaded bolt design enables the doors to close in any order, enhancing convenience and accessibility. When it’s time to secure both doors, simply turn the key to lock the primary door, ensuring that both entrances are firmly secured. To access the non-locking door, you must first open the locking door, which disengages the latch bolt for smooth operation. The sleek black finish not only complements various designs but also withstands daily use, making it a reliable choice for professionals and homeowners alike. Ideal for a range of applications, including cabinets and storage units, the D200DL-BLK is a versatile addition to any security setup. With its thoughtful design and ease of use, this double door latch sets a new standard in functionality and security.

Double Door Latch RH Black

• Eliminates the need for an elbow catch, or other devices, and allows hardware to be installed out of the way. The lock is mounted on the right hand door. Inside the right hand door, install the activator; on the non-locking door, install the catch. The latch should be installed inside top of cabinet. The activator pushes the bolt on the latch to the other side to engage the catch. The bolt on the catch side is spring-loaded, allowing the doors to be closed in any order. Turn the key to lock the other door; both doors are now secure. The locking door must be opened first to disengage the bolt in the latch – the bolt will slide back, allowing the non-locking door (with the catch) to open.

Features

• Eliminates the need for an elbow catch, or other devices, and allows hardware to be installed out of the way. The lock is mounted on the right hand door. Inside the right hand door, install the activator; on the non-locking door, install the catch. The latch should be installed inside top of cabinet. The activator pushes the bolt on the latch to the other side to engage the catch. The bolt on the catch side is spring-loaded, allowing the doors to be closed in any order. Turn the key to lock the other door; both doors are now secure. The locking door must be opened first to disengage the bolt in the latch – the bolt will slide back, allowing the non-locking door (with the catch) to open.

Resources

• Cut Sheet
