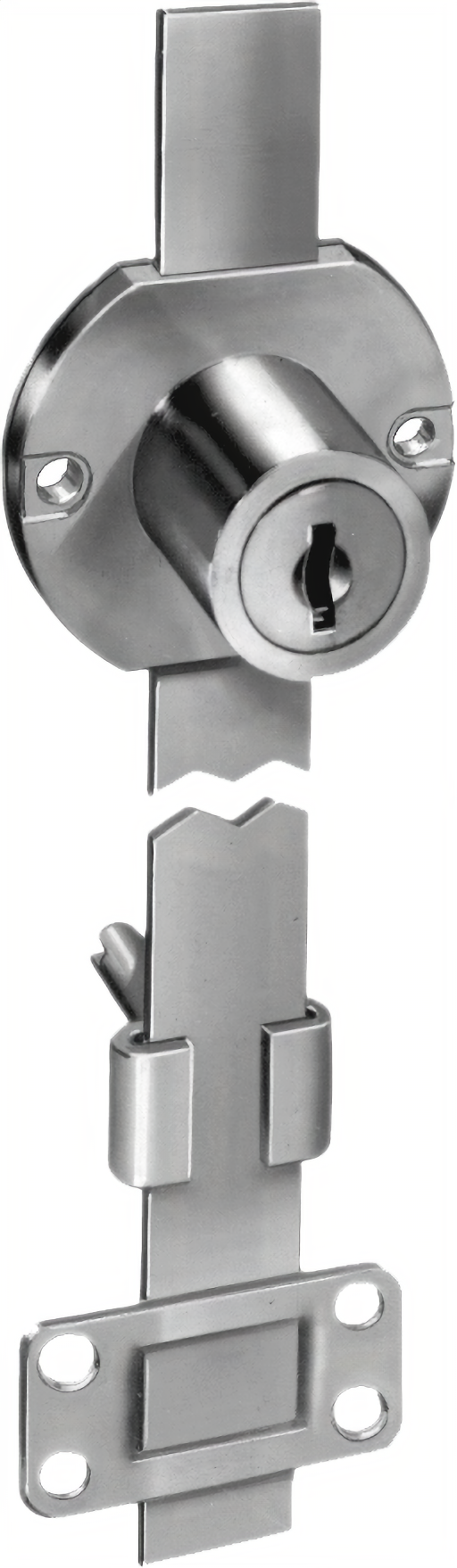

Compx D8090-KAC415A-3 Disc Gang Lock with Mounting Package

Compx Security Products D8090-KAC415A-3 Disc Gang Lock With Mounting Package delivers robust security for multiple drawer applications, making it ideal for desk pedestals and similar setups. Designed to enhance your organization and security, this gang lock requires a 7/8" diameter hole for cylinder installation and a dado measuring 7/8" x 1/8" deep on the inside of the panel. Operating the lock is straightforward; the key can be removed in both locked and unlocked positions. A single turn of the key simultaneously locks all drawers, provided they are closed, while the bar effectively moves the locking studs into the drawer notches to prevent movement. This ensures that your important documents and items remain secure. The D8090-KAC415A-3 is compatible with other disc tumbler locks using the D8785 key blank, and it supports master keying with the E41A using the D8783 key blank, offering flexibility in key management. Each package comes complete with two keys, three locking studs, three stud slides, a saddle, and mounting screws. Please note that if a trim ring is needed, it must be ordered separately as C2017. Finished in polished brass, this lock combines durability with an elegant appearance, making it a reliable choice for your security needs.

Disc Gang Lock With Mounting Package

• Application: For locking drawers in desk pedestals and other multiple drawer applications. Requires 7/8" diameter hole for cylinder and dado for bar, measuring 7/8" x 1/8" deep on inside of panel.
• Operation: Key removable in both locked and unlocked positions. Turning the key locks all drawers simultaneously (drawers must be in closed position). Bar moves studs into notch in drawer or slide, thus preventing drawer movement.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. Master keying to E41A using D8783 key blank.

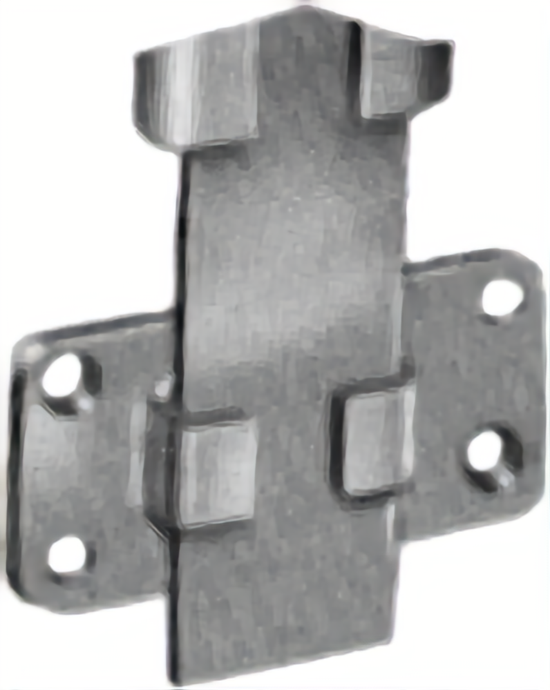

• Packaging: Supplied with two keys, three locking studs, three stud slides, saddle and mounting screws. If trim ring is required, order C2017 separately.

Features

• Packaging: Supplied with two keys, three locking studs, three stud slides, saddle and mounting screws. If trim ring is required, order C2017 separately.
• Application: For locking drawers in desk pedestals and other multiple drawer applications. Requires 7/8" diameter hole for cylinder and dado for bar, measuring 7/8" x 1/8" deep on inside of panel.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. Master keying to E41A using D8783 key blank.
• Operation: Key removable in both locked and unlocked positions. Turning the key locks all drawers simultaneously (drawers must be in closed position). Bar moves studs into notch in drawer or slide, thus preventing drawer movement.

Resources

• Cut Sheet
