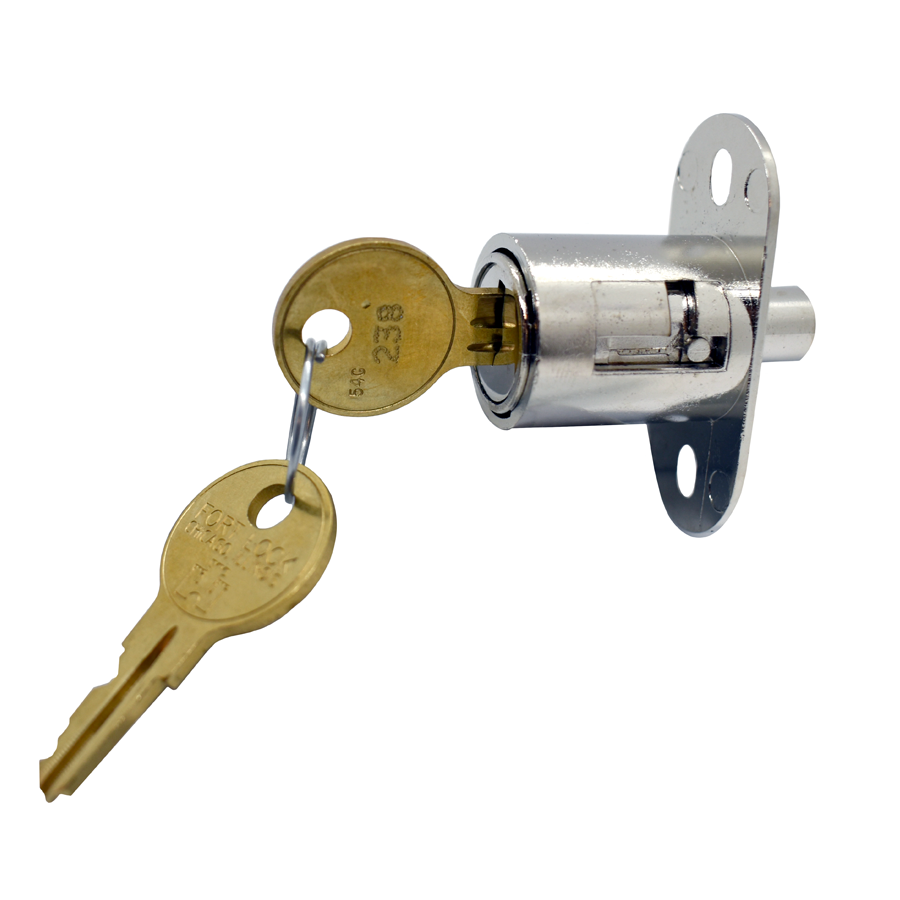

Compx SD990-KA238 Sliding Door Lock 1-1/4in

Compx Security Products SD990-KA238 Sliding Door Lock 1-1/4in is expertly designed to enhance the security of your wood showcase doors. This versatile lock accommodates panel thicknesses of up to 1 inch, making it an ideal choice for various applications. With its plunger action mechanism, this lock allows for smooth operation, ensuring that your side-by-side sliding showcase doors are securely locked. Featuring a 15/32" bolt throw and a 90° key turn, the plunger slides out to lock effectively, providing peace of mind for your valuables. The lock's compact dimension of 1-1/32" ensures a discreet yet robust fit. Key operation is straightforward: the key can only be pulled out at the 12:00 position when unlocked, and a simple turn back to 12:00 allows for key removal. For added customization, the SD990-KA238 lock offers key options including KD and KA 27379, 27380, catering to both standard and high-security needs. This sliding door lock is a reliable solution for building professionals and homeowners alike, ensuring that your showcase doors remain secure while providing ease of access when needed. Choose Compx Security Products for a trusted solution to your locking needs.

Sliding Door Lock 1-1/4in

The SD1990 lock allows for through hole mounting on wood showcase doors. It will accommodate panel thickness up to 1". The lock allows "plunger" style action to lock side by side sliding showcase doors. It is available in single bit for standard security and GEM tubular for high security.

Specifications:

• Plunger Action Wood Door Lock.
• 15/32" Bolt Throw.
• 90° Key Turn - Plunger Slides Out To Lock.

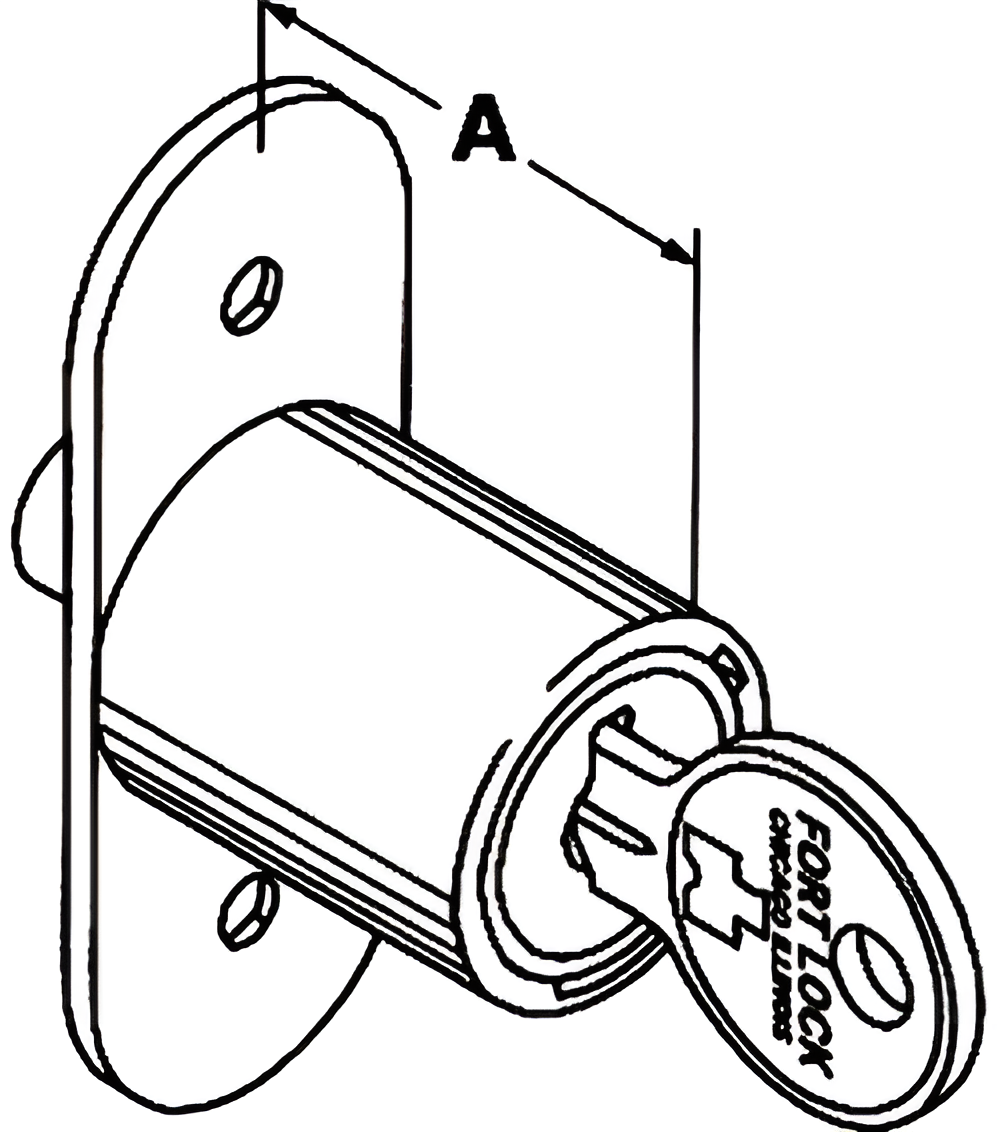

• Dimension: 1-1/32".
• Key Pull at 12:00 only in unlocked position (3:00).
• Turn key back to 12:00 to remove key, then push plug in to lock.

Key Options:

• KD, KA 27379, 27380.

Features

• 90° Key Turn - Plunger Slides Out To Lock.
• Plunger Action Wood Door Lock.
• Dimension: 1-1/32".
• Turn key back to 12:00 to remove key, then push plug in to lock.
• Key Pull at 12:00 only in unlocked position (3:00).
• 15/32" Bolt Throw.
