Compx SW20-1138MC-KA81 Ace Switch Lock 1-3/8in Momentary

Compx Security Products SW20-1138MC-KA81 Ace Switch Lock 1-3/8in Momentary is an essential addition to your security hardware arsenal, offering a versatile solution for various applications. This multi-functional switch lock features a momentary contact design, ensuring reliable operation for your specific needs. With a single pole, single throw (SPST) configuration, this switch lock operates effectively at 7 amps across 28 VAC/VDC. Designed for convenience, it closes contacts with a simple 90° clockwise turn and springs back to the neutral position at 12:00, making it user-friendly. The key-removable feature enhances security and accessibility, allowing you to easily manage access as needed. Measuring 1-3/8 inches in size, the SW20-1138MC-KA81 is compact yet powerful, fitting seamlessly into a variety of installations. Its 10-inch lead length simplifies wiring, ensuring an efficient setup process. Rated for 110-120 volts AC, this switch lock is built to withstand the demands of everyday use. Whether for automotive, residential, or commercial applications, the Compx Security Products SW20-1138MC-KA81 Ace Switch Lock offers functionality and reliability, making it a superior choice for professionals and knowledgeable homeowners alike.

Ace Switch Lock 1-3/8in Momentary

CompX Fort SW20-1138MC Switch Lock is multi-function with a momentary contact, single pole and single throw switch.

Features:

• Multi-Function.
• Momentary Contact.
• Single Pole.
• Single Throw Switch.
• 7 Amps @ 28 VAC/VDC.
• Operation: 90° CW Turn Contacts Closed.
• Spring Back to 12:00.
• Key Removable.

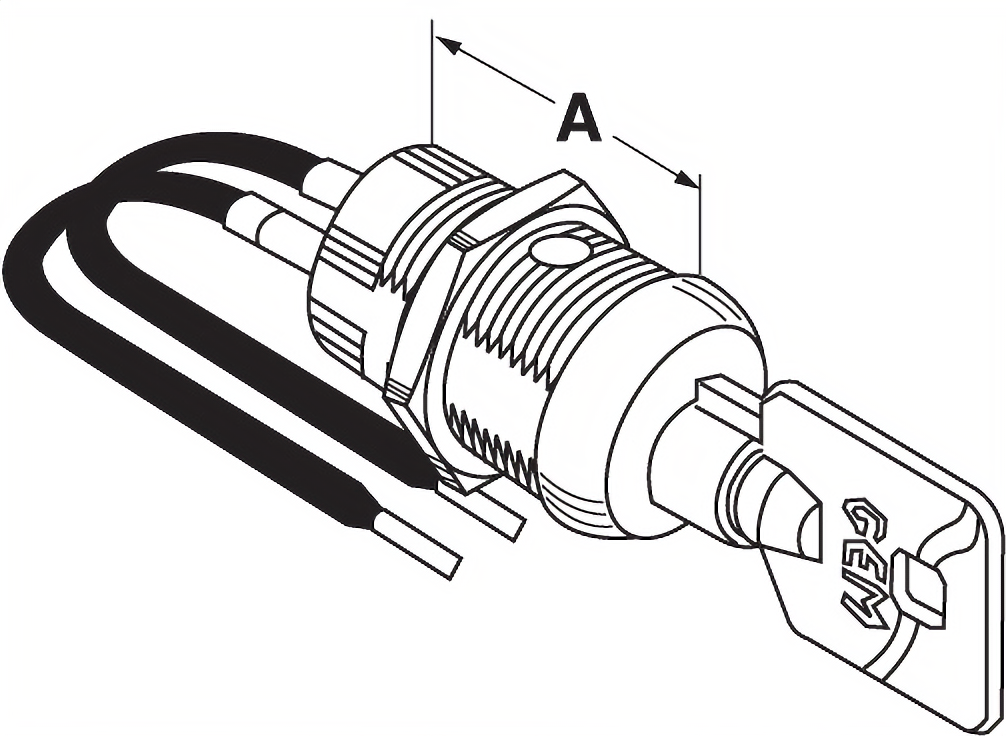

• 'A' Dimension, 1 3/8".
• Lead Length 10".

Specifications:

• Contact Type: Momentary.
• Contact Configuration: SPST (Single Pole, Single Throw).
• A.C.: 110-120 Volts.
