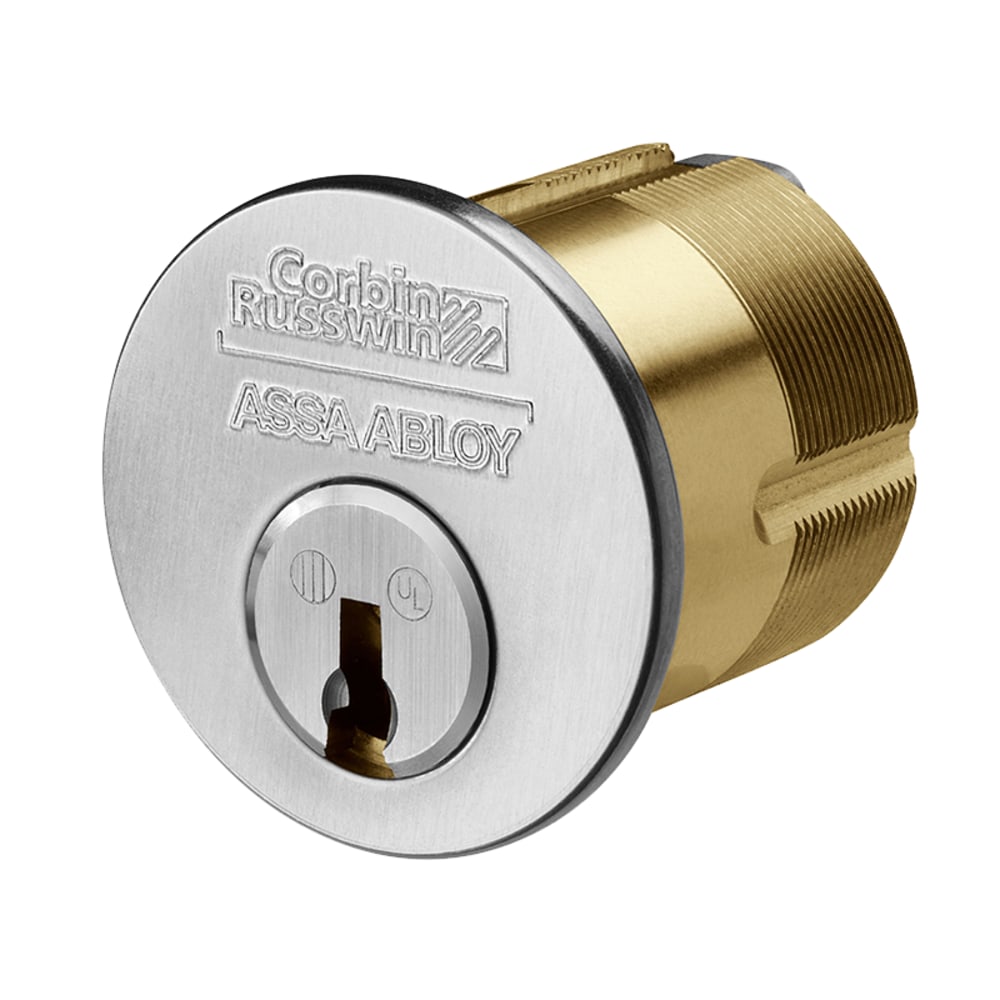

Corbin Russwin 3070-318-6 626 LFIC Rim Housing

Corbin Russwin 3070-318-6 626 LFIC Rim Housing is designed for superior functionality and convenience in commercial applications. This 6-pin rim cylinder housing features a robust 3-1/8" tailpiece and comes in a sleek satin stainless steel finish, ensuring both durability and a modern aesthetic. Engineered to accept Corbin Russwin's 8000 Series Interchangeable Cores, this housing provides the flexibility of rekeying without the need to remove hardware from the door. Ideal for a variety of keying systems, it is particularly beneficial in environments like office buildings, hotels, schools, and hospitals, where time and efficiency are paramount. The interchangeable cores promote significant savings in both time and money over the lifespan of your building. The operation is straightforward; all operating keys, including change, master, and grand master keys, function normally. For rekeying, simply use the special control key, which operates at a separate shear line, making it easy for non-technical personnel to handle. With additional options for 7-pin configurations and concealed key control available, the 3070-318-6 LFIC Rim Housing meets the diverse needs of today’s security demands. Choose the Corbin Russwin 3070-318-6 for a practical and efficient locking solution that enhances your building's security.

LFIC Rim Housing

6-Pin Rim Cylinder Housing, 3-1/8" Tailpiece, Satin Stainless Steel Finish

Corbin Russwin Interchangeable Core Mortise and Rim Housings are made from soldi brass and are available to accept Corbin Russwin 8000 Series Interchangeable Cores in 6 or 7-Pin versions.

Interchangeable cores provide rekeying convenience for virtually all types of keying systems.

Interchangeable cores like this save time and money over the life of a building.

• Advantages

Rekeying can be done by non-technical personnel without removing hardware from the door. When used system wide, IC provides tremendous rekeying convenience. When planned from the inception of a system, IC cylinders can be integrated with conventional cylinders.

• Applications

IC is recommended for virtually all types of keying systems, such as office buildings, hotels, schools, hospitals and universities. When used in exit devices and other installations which are labor intensive to rekey, IC saves time and money over the life of the building.

• Operations

All operating keys (change, master, grand master) operate the lock normally. To rekey, use the special control key. The control key operates at a separate shear line in certain chambers within the core. Only the control key is required to remove and install a core.

• Cores

Cores are available in 6-pin (standard), 7-pin, security and Pyramid.

• Construction Keying

Corbin Russwin recommends temporary construction cores for greater security. Special construction master keying is also available, when planned from the inception of the keying system.

• Core Marking

Concealed Key Control (CKC) is available for all Corbin Russwin cores.

Resources

• Interchangeable Core Cylinders Cut Sheet
• Key Systems Catalog
• Video: Interchangeable Core Installation
