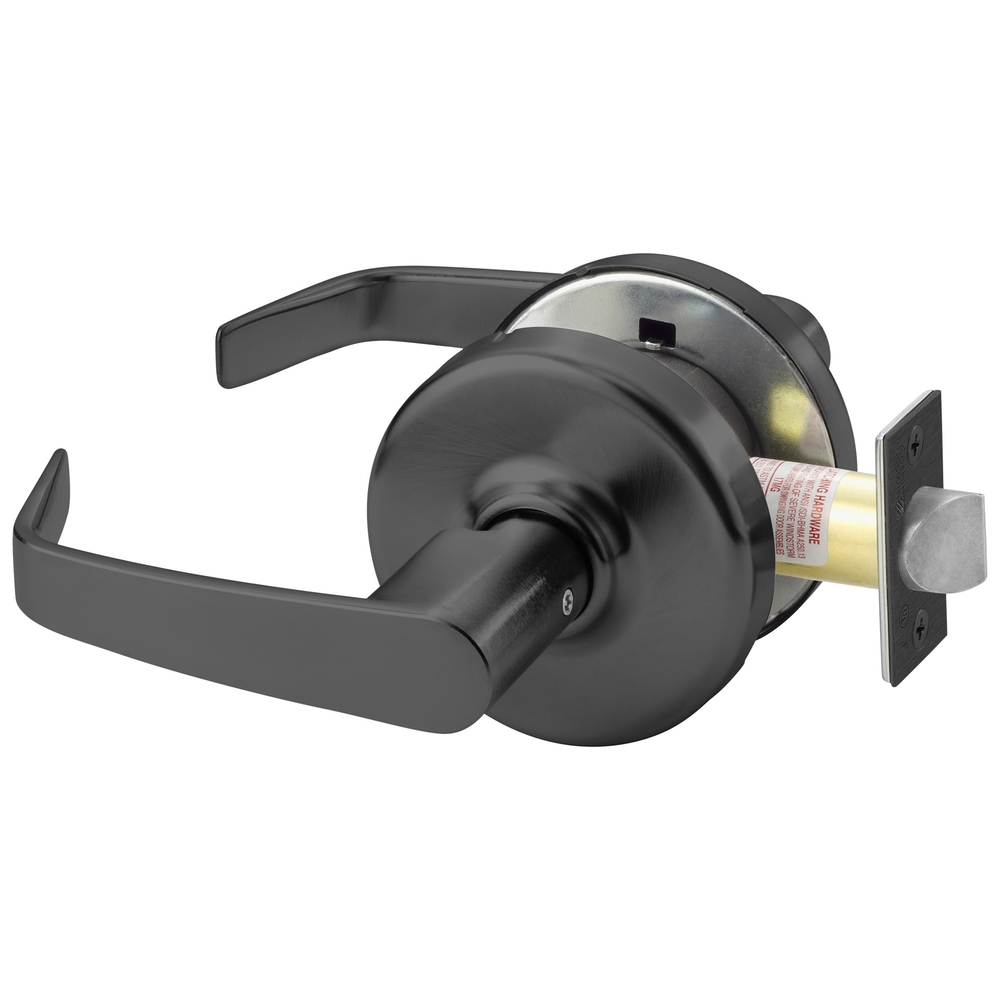

Corbin Russwin CL3110 NZD 722 Grade 1 Passage LatchCorbin Russwin CL3110 NZD 722 Grade 1 Passage Latch offers an exceptional blend of durability and functionality, making it an ideal choice for high-use commercial environments. This Grade 1 lever lockset features the elegant Newport lever design and comes in a sleek flat black finish, ensuring it seamlessly integrates into any architectural style. Designed as a non-keyed unit, it is perfect for passage or closet applications. Manufactured from high-quality materials, the CL3100 series provides strength and a quiet operation, reinforced by an innovative interlocking mechanism that enhances torque resistance. With 18 available functions, including Hospital Privacy, this lockset can be easily adjusted with just two parts, streamlining installation and maintenance. Featuring a 10-year limited warranty, this product is not only reliable but also environmentally conscious, made from 68% post-consumer recycled content, contributing to LEED MR credit 4. It supports integration into most existing key systems and accepts Schlage® LFIC cylinders, offering versatility for various setups. Designed for door thicknesses from 1-3/4" to 2", the CL3110 is UL Listed, fire rated for 3 hours, and comes with a robust, non-handed design, making it suitable for a wide range of applications.
Grade 1 Passage Latch
Grade 1 Passage/Closet Cylindrical Lock, Newport Lever, D Rose, Non-Keyed, Flat Black Finish, Non-handed
The CL3100 series is a Grade 1 lever lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes, the CL3100 series subtly complements any high-use commercial, industrial and institutional application.
Grade 1 lever lockset that is available in all standard architectural finishes.
The CL3100 Series interlocks the aligning and latch tubes, which form a ruggest torque resistant "T" in the critical twist area. It is manufactured with the highest quality materials to ensure strength.
- 18 functions available, including Hospital Privacy; most requiring only 2 parts to change function
- Simple cylinder removal provides easy change outs
- 10-year limited warranty
- Made from 68% post-consumer recycled content as per LEED MR credit 4
- Available in 11 hardware finishes and Microshield® antimicrobial coating
- Integrates into most existing facility’s key systems, and accepts Schlage® LFIC
- Retrofits most standard 161 cylindrical lock door preps and is non handed
- Environmental Product Declaration (EPD) certified
Attributes
Ansi: F75
Ansi Function: F75 - Passage
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-3/4" to 2"
Finish: 722
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 10-Passage or Closet
Function Family: Passage
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ - Newport Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Passage/Closet
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.5"
Pack Height 2: 10.5"
Pack Length: 10"
Pack Length 2: 15.5"
Pack Qty: 1
Pack Volume: 360 in³
Pack Volume 2: 2359.88 in³
Pack Width: 8"
Pack Width 2: 14.5"
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-7/8"
Rose Escutcheon: Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 2-3/4"
Screws: Wood/Machine Screws
Series: CL3100 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 780F81
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
