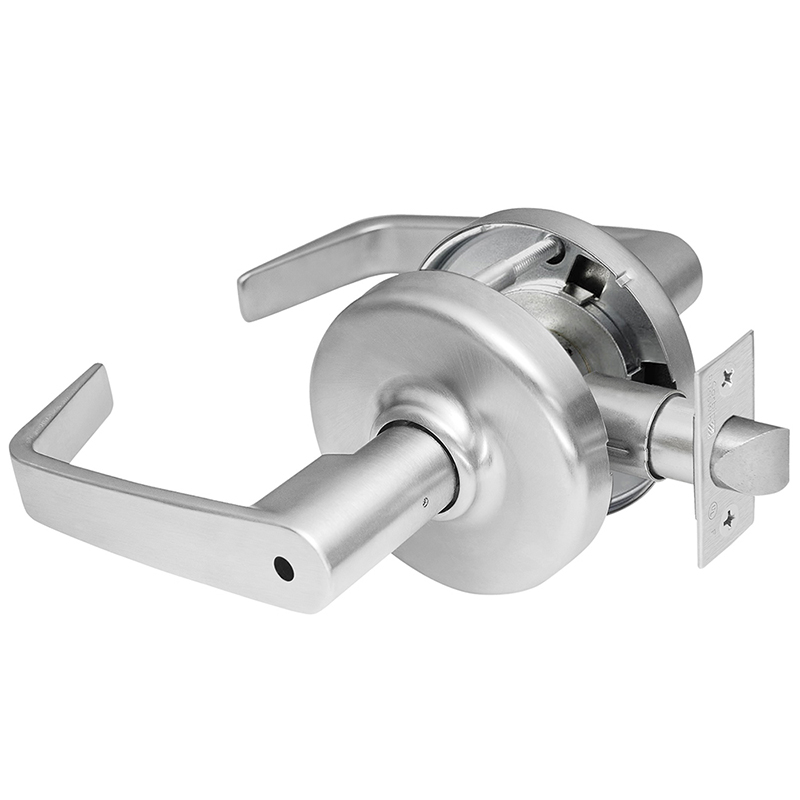

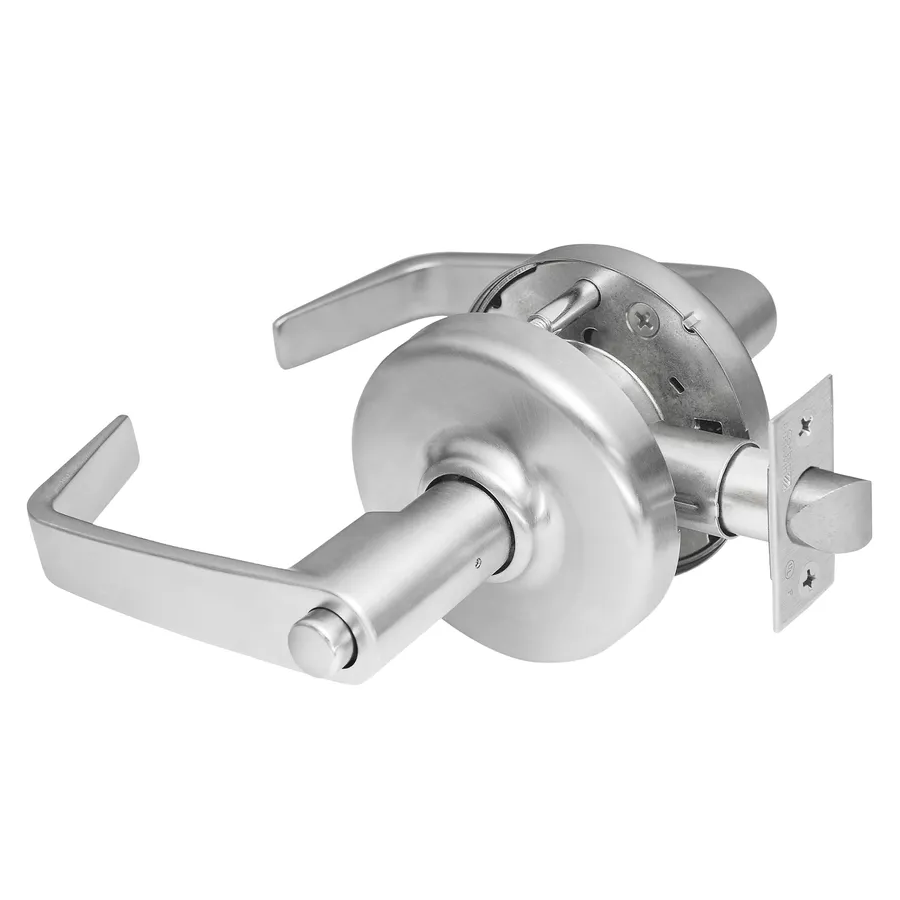

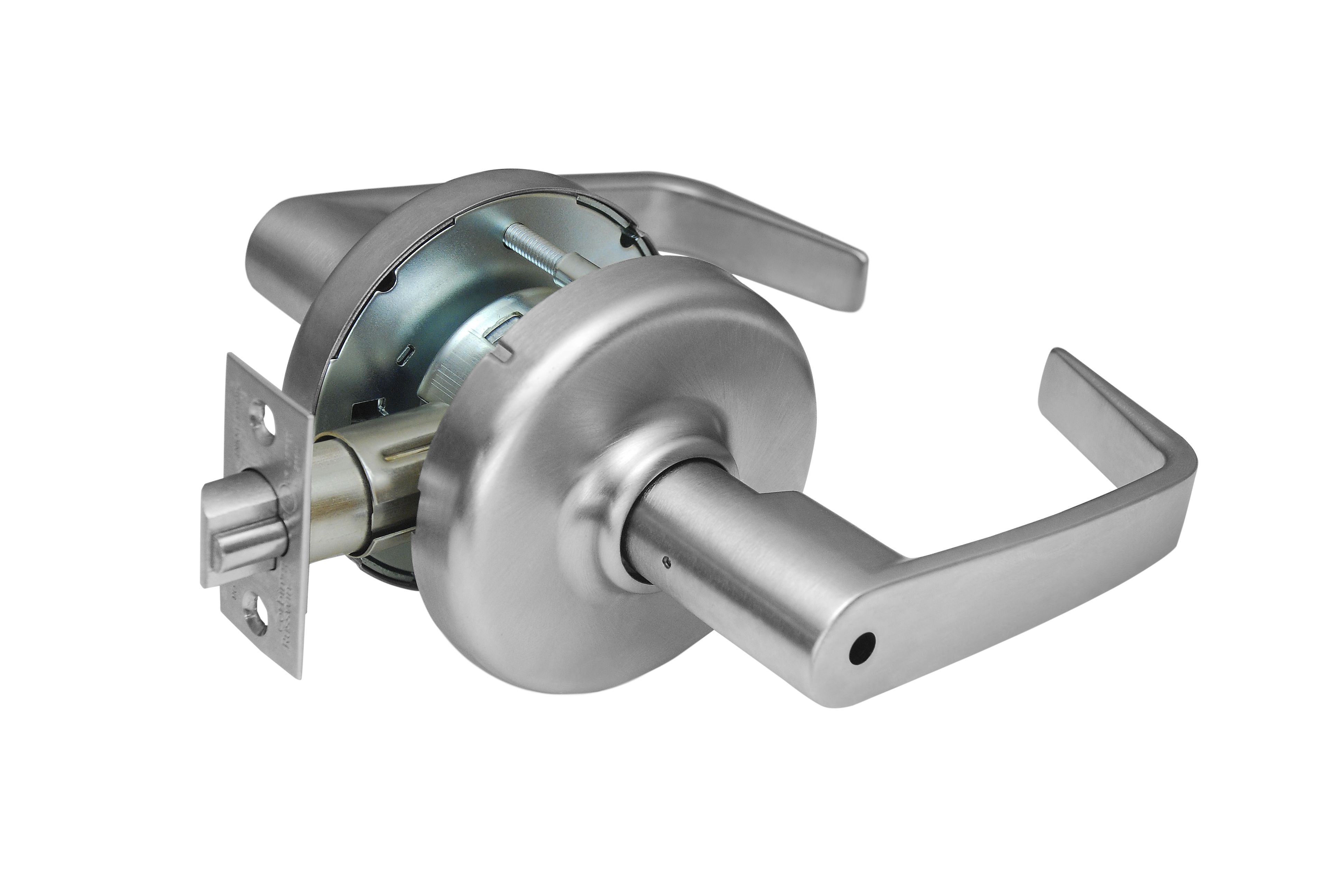

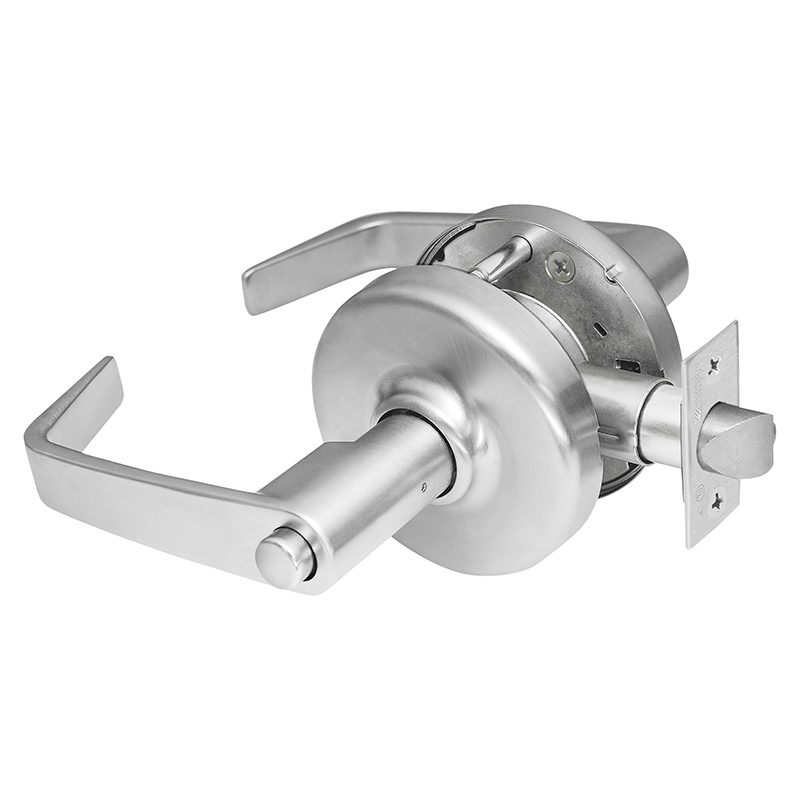

Corbin Russwin CL3820NZD626 Zinc Newport Grade 2 Privacy Lever Lock - Satin Chrome Finish

Corbin Russwin CL3820NZD626 Zinc Newport Lever and D Rose Privacy Grade 2 Standard Duty Lever Lock in Satin Chrome Finish delivers a robust combination of functionality and style for commercial and institutional applications. This mechanical lockset meets ANSI/BHMA Grade 2 standards, ensuring reliability and security for high-traffic areas. With a UL 3-hour fire rating, it offers an added layer of safety, making it suitable for various environments. The solid-cast levers and independent lever-return springs are designed to prevent sagging, maintaining a professional appearance over time. Engineered for stability, the lockset features a thru-bolt design that prevents chassis rotation and guarantees proper alignment. The non-handed design simplifies installation, allowing for versatile use on doors ranging from 1-3/4" to 2" thick. This lockset incorporates a 2-3/4" backset and a 2-1/8" crossbore size with 5/16" thru bolt holes, ensuring compatibility with standard door preparations. The satin chrome finish not only enhances aesthetic appeal but also provides durability against wear. Backed by a limited 7-year warranty, the Corbin Russwin CL3820NZD626 is a reliable choice for professionals seeking quality door hardware solutions.

Zinc Newport Lever and D Rose Privacy Grade 2 Standard Duty Lever Lock Satin Chrome Finish

Since the early 1800's, Corbin Russwin has produced high-quality, innovative door hardware for commercial and institutional facilities. Corbin Russwin, an ASSA ABLOY Group brand, remains a leader in locks, key systems, exit devices, door closers, decorative hardware and electronic access control.

• Solid-cast levers and independent lever-return springs prevent lever sag
• Meets ANSI/BHMA Grade 2 requirements
• Non-handed
• UL 3-hour fire rating
• Designed to thru-bolt onto door to prevent chassis rotation and ensure proper alignment

Features

• Handing: Non-handed.
• Keying Options: Interchangeable core and Concealed key control. Master keying, and construction keying.
• Backset: 2-3/4" (70mm) standard. Optional: 2-3/8" (60mm), 3-3/4" (95mm) and 5" (127).
• Auxiliary Latch bolt: Deadlocking latch bolt prevents manipulation when door is closed.
• Cylinder: Brass, 6-pin, L4 keyway, "0" bitted standard.
• Standard 1-3/8" to 1-7/8" (35 to 48mm); factory set for 1-3/4" doors. For 2" (51mm) and 2-1/4" (57mm) doors, specify door thickness.
• Lock Chassis: Steel, zinc dichromated for corrosion resistance.
• Strike: ANSI curved lip strike standard, 4-7/8" x 1-1/4" x 1-1/4" (124 x 32 x 32mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available;
• Door Thickness:
• Latch bolt: 1/2" (13mm) throw latch with universal "floating" front to fit both flat and beveled doors. 2-1/4" x 1-1/8" (57 x 29mm) square corner front for 2-3/4" (70mm) backset standard.
