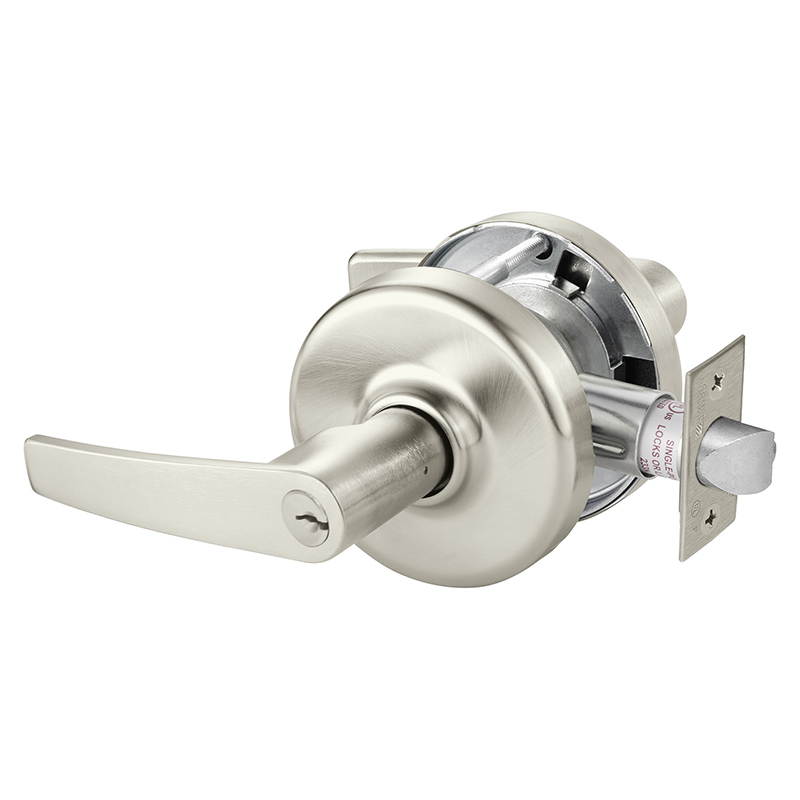

Corbin Russwin CL3851 AZD 619 Grade 2 Entrance LockCorbin Russwin CL3851 AZD 619 Grade 2 Entrance Lock offers a blend of reliability and performance, making it an excellent choice for various commercial applications. This Grade 2 standard-duty cylindrical lock features the Armstrong Lever design and a conventional cylinder, finished in a sleek satin nickel plated clear coat that enhances its durability and aesthetic appeal. Designed for versatility, the CL3800 Series is ideal for use in interior offices, closets, multifamily housing, restaurants, and retail environments. The lock’s Lever Release™ mechanism provides vandal resistance, while solid cast levers ensure longevity. Certified to ANSI Grade 2 standards and boasting a UL 3-hour fire rating, this lock is built to withstand daily wear and meet safety requirements. Key features include independent lever return springs, through-bolts for solid attachment, and compatibility with ANSI/DHI door prep A115.18 - 1994 "Spider Cut Out." The lock is non-handed, accommodating various door thicknesses from 1-3/8" to 1-3/4". It comes with two keys, a 1/2" latch bolt projection, and a limited warranty of 7 years, ensuring peace of mind with your investment. Upgrade your security with the Corbin Russwin CL3851 AZD-where quality meets functionality.
Grade 2 Entrance Lock
Grade 2 Entrance or Office Cylindrical Lock, Armstrong Lever, Conventional Cylinder, Satin Nickel Plated Clear Coated Finish, Non-handed
Grade 2 standard-duty lever lockset that provides a combination of value and performance.
The CL3800 Series is ideal for standard commercial applications such as interior offices, closets, multifamily housing, restaurants, and retail complexes.
- Lever Release™ for vandal resistance
- Solid cast levers
- ANSI Grade 2 certification
- UL 3-hour fire rating
- Independent lever return springs
- Through-bolts on door for solid attachment
- Covers ANSI/DHI door prep A115.18 - 1994 “Spider Cut Out”
Attributes
Ansi Function: F109 - Entry/Office
Base Series: CL3800
Bolt Projection: 1/2" Latch
Bore Hole Diameter: 2-1/8"
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/8" - 1-3/4"
Finish: 619/US15
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 51-Entrance or Office Lock
Function Family: Entrance
Grade: Grade 2
Handing: Not Handed
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Armstrong
Leverknob Design: AZ - Armstrong Lever
Leverknob Design Family: Straight Lever
Limited Warranty: 7 Years
Lock Face Size: 2-1/4" x 1-1/8"
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
Of Keys: 2
Origin: USA
Pack Height: 4.5"
Pack Height 2: 10.5"
Pack Length: 10"
Pack Length 2: 15.5"
Pack Qty: 1
Pack Volume: 337.5 in³
Pack Volume 2: 2359.88 in³
Pack Width: 7.5"
Pack Width 2: 14.5"
Pins: 6
Rose Escutcheon: Rose
Rose Number: D
Roseescutcheon Design: D Rose
Screws: Combination
Series: CL3800 Series Grade 2 Cylindrical Lever Locks
Ship Weight: 4.1 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 600F10
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 217L13
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
