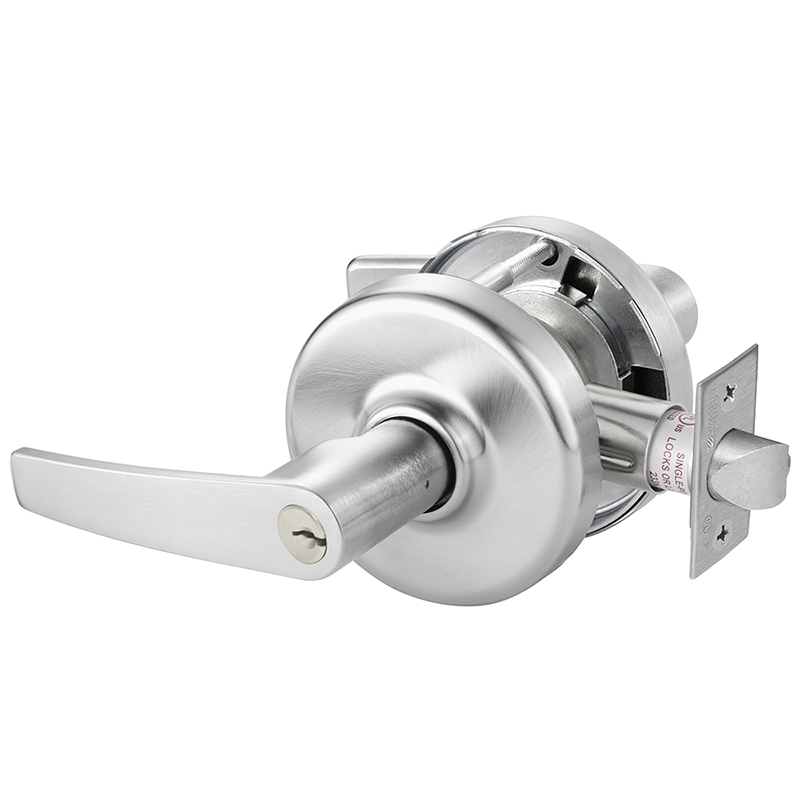

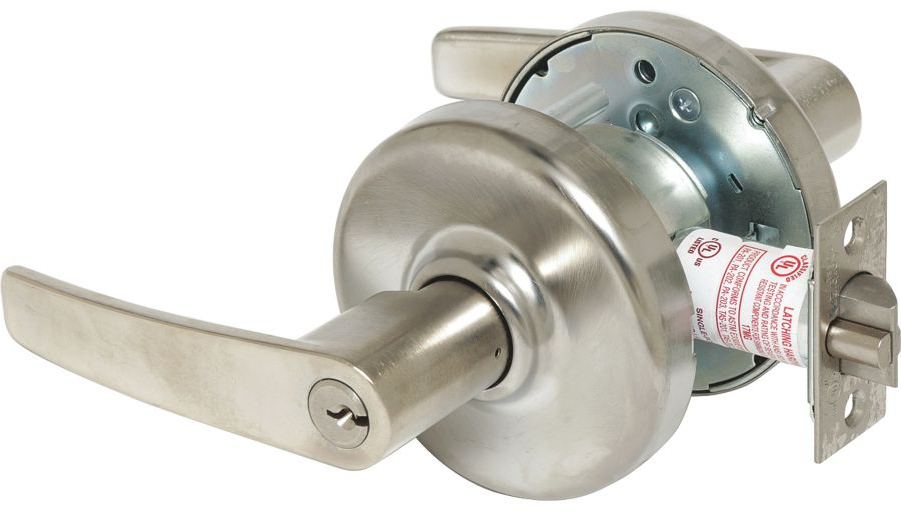

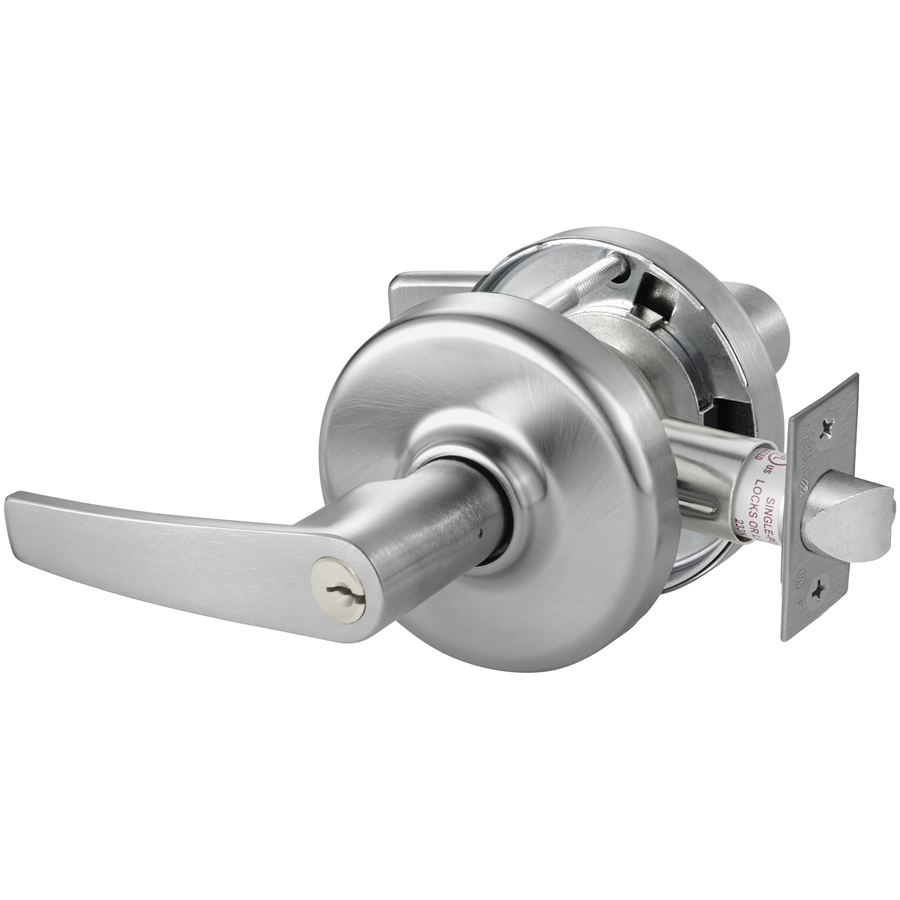

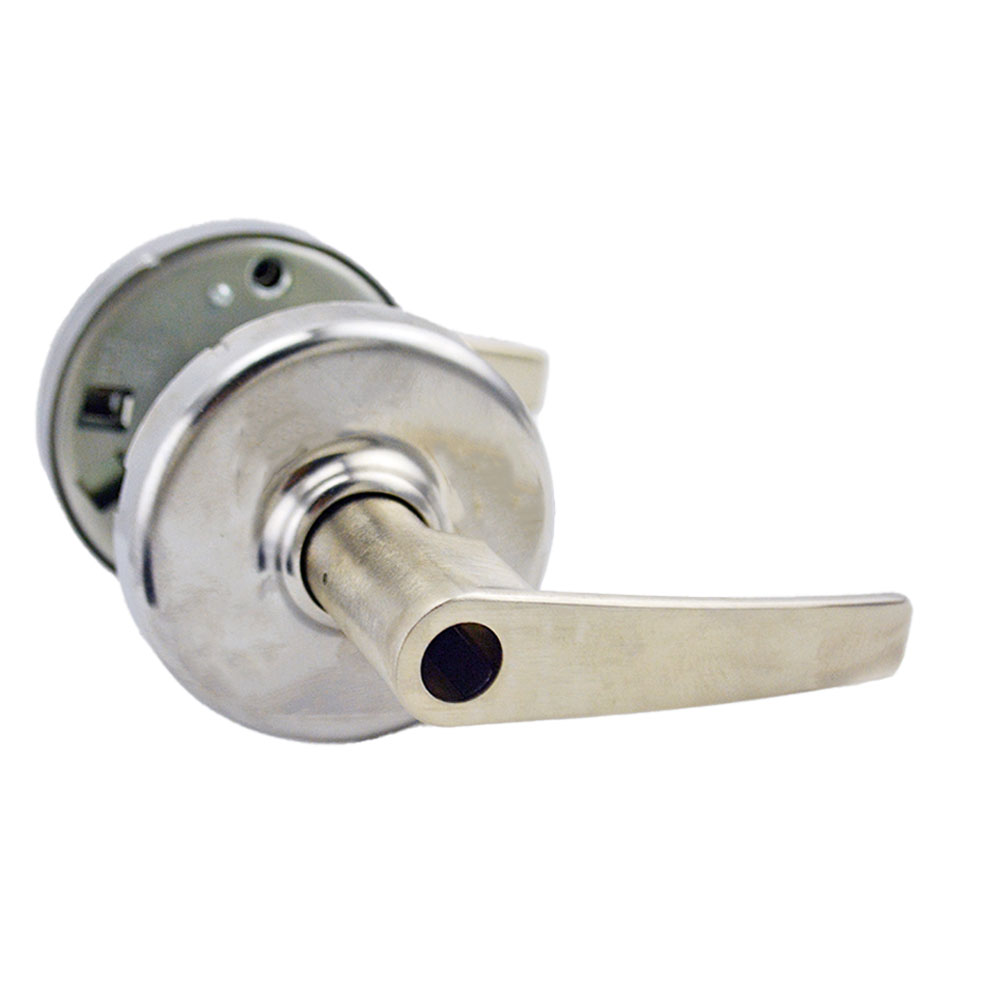

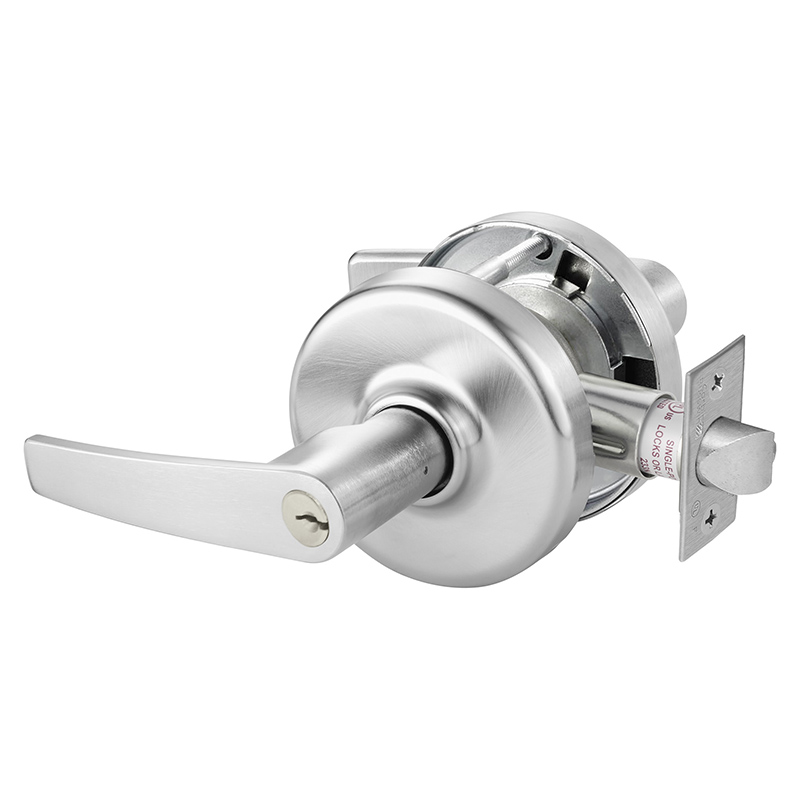

Corbin Russwin CL3851AZD626 Zinc Armstrong Grade 2 Satin Chrome Single Cylinder Lever Lock with L4 Keyway

Corbin Russwin CL3851AZD626 Zinc Armstrong Lever and D Rose Single Cylinder Entry is a robust choice for those seeking reliable security in a sleek design. Meeting ANSI/BHMA Grade 2 requirements, this lockset is engineered for durability and ease of use in commercial and institutional settings. With a UL 3-hour fire rating, it offers peace of mind in emergency situations. The solid-cast levers and independent lever-return springs are specifically designed to prevent lever sag, ensuring consistent performance. Its non-handed design allows for versatile installation, making it suitable for various door configurations. The lockset features a 2-3/4" backset and fits doors with a thickness of 1-3/4" to 2", accommodating a wide range of applications. With a satin chrome finish that enhances both aesthetics and durability, this entry lockset includes a 6-pin L4 keyway for added security. The Armstrong lever design complements the D Rose escutcheon, creating a modern yet classic look. Installation is straightforward, thanks to the thru-bolt design that prevents chassis rotation and ensures proper alignment. Backed by a limited 7-year warranty, the Corbin Russwin CL3851AZD626 is a reliable investment in safety and style for any entryway.

Zinc Armstrong Lever and D Rose Single Cylinder Entry Grade 2 Standard Duty Lever Lock with L4 Keyway Satin Chrome Finish

Since the early 1800's, Corbin Russwin has produced high-quality, innovative door hardware for commercial and institutional facilities. Corbin Russwin, an ASSA ABLOY Group brand, remains a leader in locks, key systems, exit devices, door closers, decorative hardware and electronic access control.

• Solid-cast levers and independent lever-return springs prevent lever sag
• Meets ANSI/BHMA Grade 2 requirements
• Non-handed
• UL 3-hour fire rating
• Designed to thru-bolt onto door to prevent chassis rotation and ensure proper alignment

Features

• Handing: Non-handed.
• Keying Options: Interchangeable core and Concealed key control. Master keying, and construction keying.
• Backset: 2-3/4" (70mm) standard. Optional: 2-3/8" (60mm), 3-3/4" (95mm) and 5" (127).
• Auxiliary Latch bolt: Deadlocking latch bolt prevents manipulation when door is closed.
• Cylinder: Brass, 6-pin, L4 keyway, "0" bitted standard.
• Standard 1-3/8" to 1-7/8" (35 to 48mm); factory set for 1-3/4" doors. For 2" (51mm) and 2-1/4" (57mm) doors, specify door thickness.
• Lock Chassis: Steel, zinc dichromated for corrosion resistance.
• Strike: ANSI curved lip strike standard, 4-7/8" x 1-1/4" x 1-1/4" (124 x 32 x 32mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available;
• Door Thickness:
• Latch bolt: 1/2" (13mm) throw latch with universal "floating" front to fit both flat and beveled doors. 2-1/4" x 1-1/8" (57 x 29mm) square corner front for 2-3/4" (70mm) backset standard.
