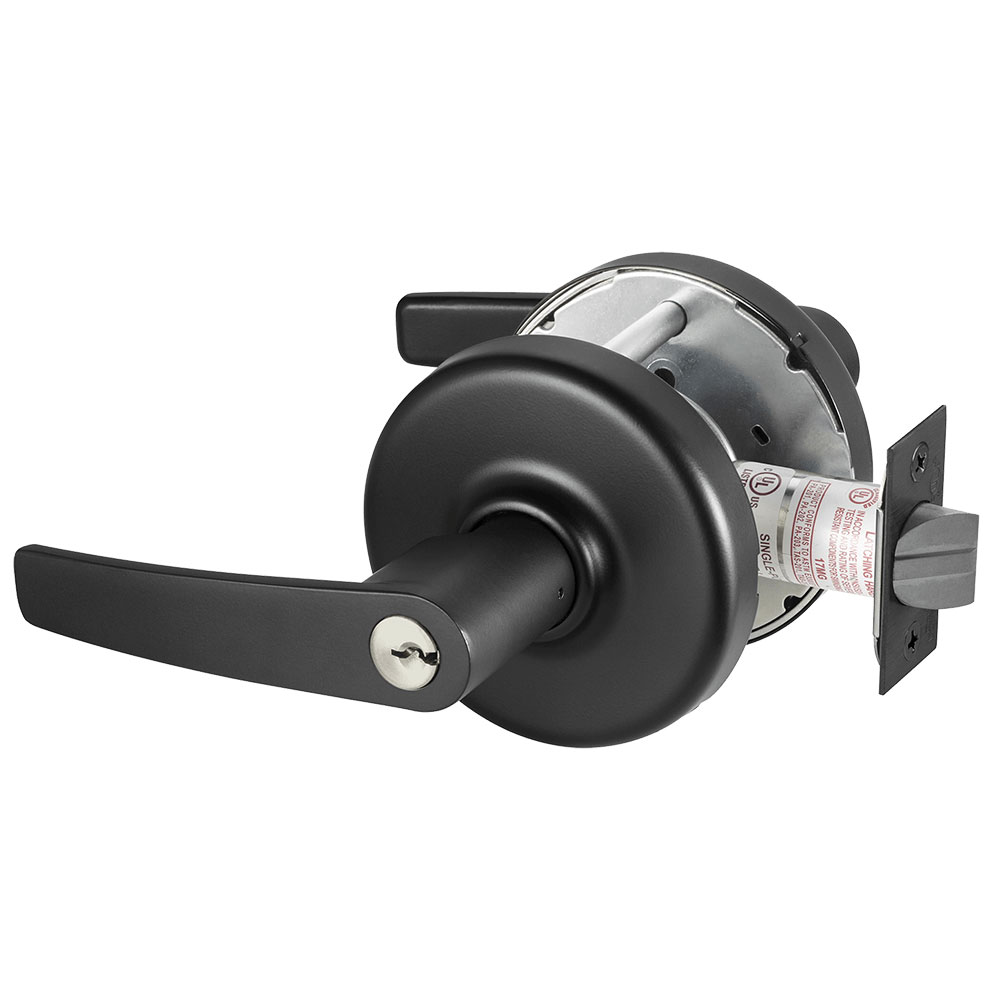

Corbin Russwin CLX3355 AZD BSP Grade 1 Classroom Lock is meticulously crafted for high-traffic environments where both security and aesthetics matter. This Grade 1 cylindrical lock, featuring the elegant Armstrong lever and a striking D Rose design, is built from high-quality steel, ensuring exceptional durability and reliability. The non-handed design accommodates various installation needs, making it an ideal choice for both new constructions and retrofits. With a conventional cylinder and the ability to support multiple cylinder formats, including fixed and interchangeable cores, the CLX3355 guarantees flexibility in your security setup. Its sleek black suede finish enhances its visual appeal, ensuring it complements diverse decor styles. This lock features a 1/2" bolt projection and is designed for doors with a thickness of 1-3/4" to 2", while the 2-1/8" bore hole diameter ensures straightforward installation. Additionally, the lock is fire-rated for up to 3 hours, providing peace of mind in emergency situations. Backed by a 10-year limited warranty and compliant with ANSI/BHMA Grade 1 standards, the Corbin Russwin CLX3355 AZD is your dependable solution for securing classrooms and other commercial spaces. Experience the perfect blend of strength and style with this exceptional lock.
Grade 1 Classroom Cylindrical Lock, Armstrong Lever, D Rose, Conventional Cylinder, Black Suede Finish, Non-handed
The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you'll never have to sacrifice style for strength. It supports all cylinder formats - from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.
Grade 1 locks with the strength to secure high-traffic openings with design options to complement any decor.
Attributes
Ansi: F84
Ansi Function: F84 - Classroom
Base Material: Steel
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: BSP
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 55-Classroom
Function Family: Classroom
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Armstrong
Leverknob Design: AZ - Armstrong Lever
Leverknob Design Family: Straight Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Classroom
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Of Keys: 2
Origin: United States
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 360 in³
Pack Width: 8"
Pins: 6
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: CLX3300 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 867F21
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
