Corbin Russwin CLX3361 NZD 619 LC Grade 1 Entry/Office Lock offers unparalleled security and style for high-traffic environments. Built to ANSI/BHMA Grade 1 standards, this cylindrical lock is designed for durability and reliability, ensuring it stands up to everyday use while enhancing your space's aesthetics. The Newport lever, complemented by a D Rose escutcheon, provides a sophisticated touch that fits seamlessly into any decor. This lock is versatile, supporting all cylinder formats, including fixed and interchangeable cores, making it ideal for both new construction and retrofit projects. With a non-handed design, it can easily accommodate doors ranging from 1-3/4" to 2" in thickness. The satin nickel finish (619/US15) not only adds a sleek look but is also built to withstand the rigors of commercial use. Featuring a 1/2" bolt projection and a deadlatch mechanism, the CLX3361 ensures secure locking with a standard latch backset dimension of 2-3/4". Additionally, it carries a 10-year limited warranty, reflecting Corbin Russwin’s commitment to quality. With a fire rating of 3 hours and UL Listings, this lock guarantees peace of mind in both safety and performance. Upgrade your entryway with this reliable and stylish locking solution.

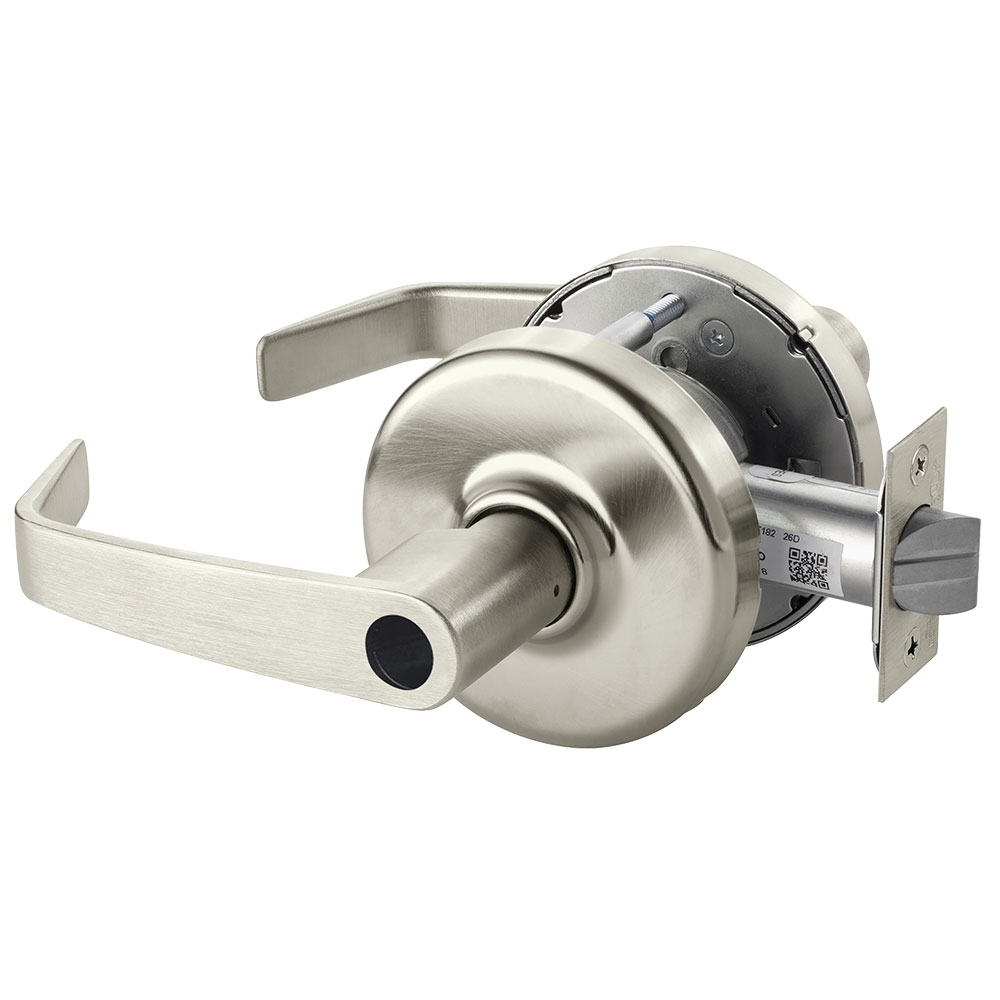

Grade 1 Entry/Office Cylindrical Lock, Newport Lever, D Rose, Conventional Less Cylinder, Satin Nickel Finish, Non-handed
The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you'll never have to sacrifice style for strength. It supports all cylinder formats - from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.
Grade 1 locks with the strength to secure high-traffic openings with design options to complement any decor.
Attributes
Ansi: F82A
Ansi Function: F82A - Entry
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Less Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 619/US15
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 61-Entry of Office
Function Family: Entrance/Office
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ - Newport Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Entry/Office
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 360 in³
Pack Width: 8"
Pins: 6
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: CLX3300 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 867F21
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
