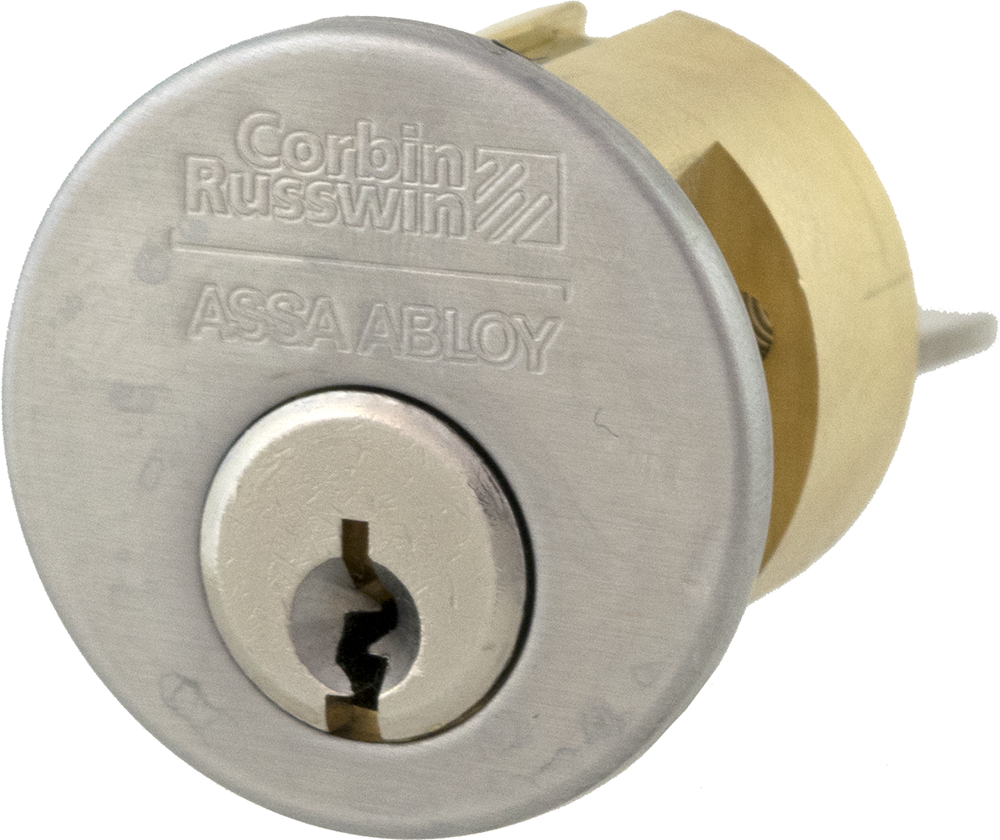

Corbin Russwin CR3000 626 D1 Rim Cylinder, D1 Keyway 6-Pin 0-Bit, 626/US26D Satin Chrome

Corbin Russwin CR3000 626 D1 Rim Cylinder, D1 Keyway 6-Pin 0-Bit, 626/US26D Satin Chrome offers a reliable solution for securing your property. This standard rim cylinder features a satin chrome finish, ensuring both durability and a sleek appearance that complements various door styles. The cylinder is equipped with a D1 keyway and comes with two standard keys, enhancing convenience for users. Designed for versatility, the CR3000 is suitable for a range of applications, from residential to commercial settings. It supports 6-pin keying, providing a solid level of security while allowing for ease of use. The key is stamped with a coined logo, reflecting its quality and craftsmanship. This rim cylinder is part of a broader series that includes options for high security and varying lengths, making it adaptable to different needs. Tailpiece length measures 2 inches, fitting standard door configurations effectively. With features such as geographic keyway restrictions and bump-resistant options available, this product stands out in its category. Whether you are a building professional or a knowledgeable homeowner, the Corbin Russwin CR3000 ensures peace of mind with its dependable performance and elegant design. Invest in security that combines function and aesthetics seamlessly.

Rim Cylinder, D1 Keyway 6-Pin 0-Bit, 626/US26D Satin Chrome

Corbin Russwin provides a full range of keyways for mortise, rim, deadbolt and component cylinders that provide a minimal level of control. Geographically restricted key sections are also available. Also available with bump resistant option.

Series Options:

• 3000 - Standard Rim Cylinder
• 3020 - High Security Rim Cylinder
• 3027 - Security Rim Cylinder
• 3030 - High Security IC Rim Cylinder
• 3037 - Security IC Rim Cylinder
• 3070 - Housing only

Length Options:

• 114 - 1-1/4" (32mm) M61 & M62 option for ED8200 and ED9200 exit device alarms (IC)
• 138 - 1-3/8" (35mm) M61 & M62 option for ED8200 and Obsolete ED9200 exit device alarms (FC)
• 178 - 1-7/8" (48mm) (Std. Door) (IC)
• 178V - 1-7/8" (48mm) vertical (IC)
• 200 - 2" (51mm) (FC)
• 200N - 2" (51mm) ED4000/ED5000 Night Latch Function (FC)
• 200V - 2" (51mm) vertical (FC)
• 312 - 3-1/2" (89mm) (FC)
• 312V - 3-1/2" (89mm) vertical (FC)
• 318 - 3-1/8" (79mm) (IC)

Tailpieces:

• 058 5/8" 955 and 959 Trims
• 138 1-3/8" M61 & M62 option for ED8200 and obsolete ED9200 exit device alarms
• 200 2" (std. door)
• 200N 2" ED4000/ED5000 Night Latch Function
• 200V 2" vertical tailpiece
• 312 3-1/2" (thick door)
• 312V 3-1/2" vertical tailpiece

Pin Options:

• 6 Pin (standard)
• 7 Pin

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 611 - Bright Bronze
• 612 - Satin Bronze
• 613 - Dark Oxidized Satin Bronze, Oil Rubbed
• 613E - Dark Oxidized Satin Bronze, Equivalent
• 618 - Bright Nickel Plated
• 619 - Satin Nickel Plated
• 622 - Flat Black Coated
• 625 - Bright Chromium Plated
• 626 - Satin Chromium Plated
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• 722 - Black Oxidized Bronze, Oil Rubbed

Features

• 3000 - Standard Rim Cylinder
• 3030 - High Security IC Rim Cylinder
• 3027 - Security Rim Cylinder
• 3020 - High Security Rim Cylinder
• 3037 - Security IC Rim Cylinder
• 3070 - Housing only

Resources

• Keyway Guide
