Backset: 2-3/4"
Base Material: Brass
Bolt Projection: 1 In.
Bolt Protection: 1 In.
Burglar Rated: No
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4 In. - 2-1/4 In.
Dust Box: None
Finish: Satin Brass
Finish Description: Satin Brass
Fire Rated: No
Fire Rating: No

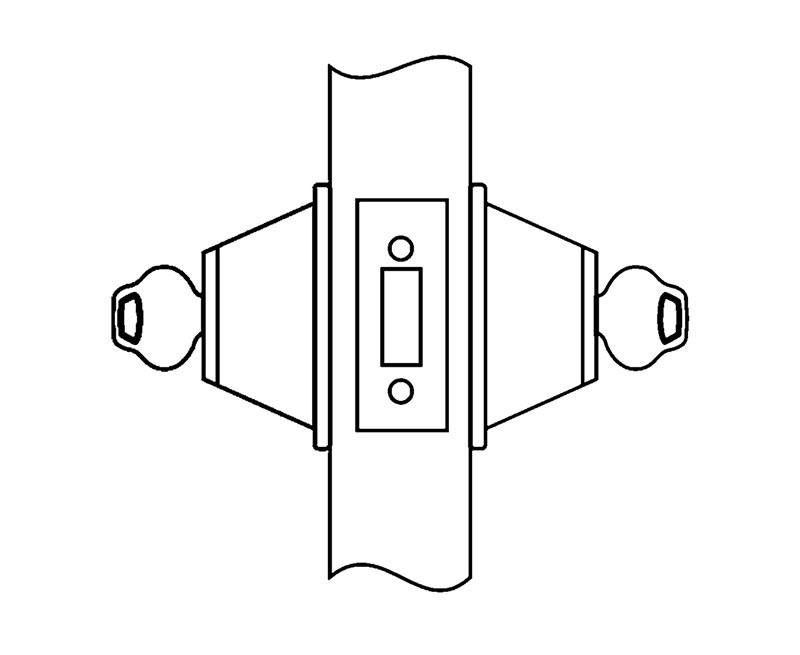

Function: 12-Double Cylinder Deadbolt
Hand: Not Handed
Handing: Not Handed
Keying: Keyed Different
Keys: Cut
Keyway: L4
Latch Backset Dim: 2-3/4 In.
Latch Type: Deadbolt
Limited Warranty: 1 Year
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Pack Height: 2.5"
Pack Length: 6"
Pack Qty: 1
Pack Volume: 63.75 in³
Pack Width: 4.25"
Pins: 6
Screws: Combination
Series: DL3000 Series
Ship Weight: 2.3 lbs.
Std Keyway: L4
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Deadbolt
Std Strike Height: 2-3/4 In.
Std Strike Type: Flat
Std Strike Width: 1-1/8 In.
Strike: 2-3/4" x 1-1/8"
Strike Height: 2-3/4 In.
Strike Type: Flat
Strike Width: 1-1/8 In.
Subtype: Deadbolts
Type: Mechanical Commercial Locksets
Unit of Measure: Each
