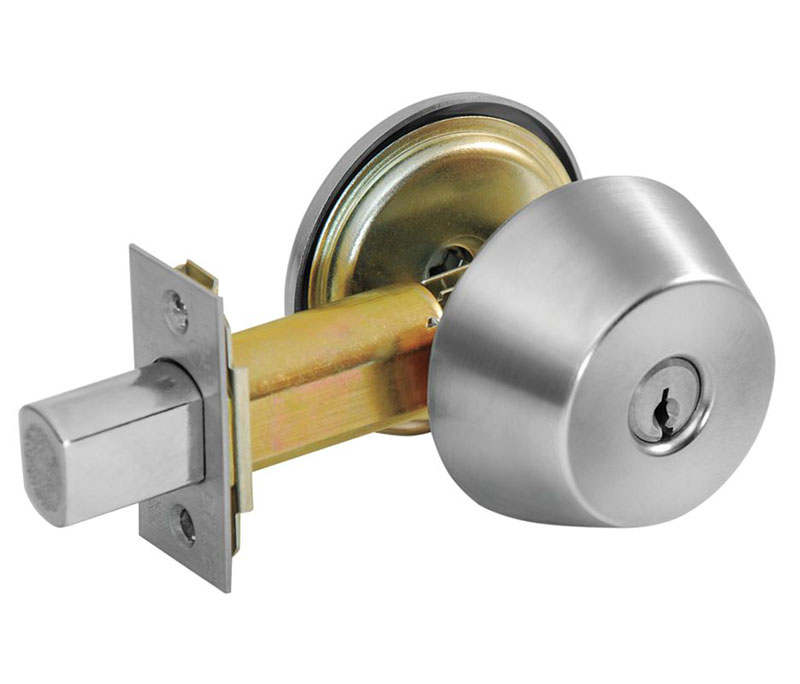

Corbin Russwin DL3213626 Single Cylinder Grade 1 Deadbolt L4 Keyway Satin Chrome Finish offers robust security and reliability for commercial and institutional environments. This deadbolt, part of the esteemed DL3200 Series, features a single cylinder design, making it non-handed and versatile for various door applications. It is constructed from durable die-cast zinc, ensuring longevity and resilience against wear. Designed to meet stringent safety standards, the DL3213626 is UL 10B and UL 10C listed, signifying its superior performance in positive pressure fire tests. With an ANSI/BHMA A156.36 Grade 1 rating, this deadbolt excels in both security and functionality. It accommodates door thicknesses ranging from 1-3/4" to 2-1/4" and has a backset of 2-3/4", making it suitable for a wide variety of installations. The satin chrome finish not only enhances its aesthetic appeal but also provides a protective layer against corrosion. Keyed with an L4 keyway and featuring a 6-pin design, the lock offers an added layer of security. Additionally, it comes with a limited 1-year warranty, ensuring peace of mind for users. Upgrade your door security with the dependable Corbin Russwin DL3213626 deadbolt.
Single Cylinder Grade 1 Deadbolt L4 Keyway Satin Chrome Finish
Since the early 1800's, Corbin Russwin has produced high-quality, innovative door hardware for commercial and institutional facilities. Corbin Russwin, an ASSA ABLOY Group brand, remains a leader in locks, key systems, exit devices, door closers, decorative hardware and electronic access control.
Alternate Codes: DL3213-626, DL3213626
Backset: 2-3/4" Backset
Base Material: Brass or Bronze
Bolt Projection: 1"
Bolt Protection: 1 In.
Burglar Rated: No
Category: Mechanical Commercial Locksets
Crossbore Size: 2-1/8" Bore
Cylinder Type: Conventional Cylinder
Door Range: 1-3/8" to 2-1/4"
Door Thickness: 1-3/4 In.
Dust Box: None
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 13-Single Cylinder Deadbolt
Hand: Not Handed
Handing: Not Handed
Hazardous Material: NO
Keying: Keyed Different
Keys: Cut
Keyway: L4
Latch Backset Dim: 2-3/4 In.
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Type: Deadbolt
Limited Warranty: 1 Year
Manufacturer Warranty: Limited 1 Year Warranty
Material: Die Cast Zinc
No Of Inners: 1
No Of Pins: 6 Pin
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Pack Height: 4"
Pack Length: 7.88"
Pack Qty: 1
Pack Volume: 126 in³
Pack Width: 4"
Pins: 6
Screws: Combination
Series: DL3200 Series
Ship Weight: 2.5 lbs.
Std Keyway: L4
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Deadbolt
Std Strike Height: 2-3/4"
Std Strike Type: Flat
Std Strike Width: 1-1/8"
Strike: Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Strike Height: 2-3/4 In.
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadbolts
Type: Mechanical Commercial Locksets
Ul Listing Type: UL10B / UL10C Fire Rated
Unit of Measure: Each
